Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
ADJUSTMENT Using the Adjustment Program 150
Confidential

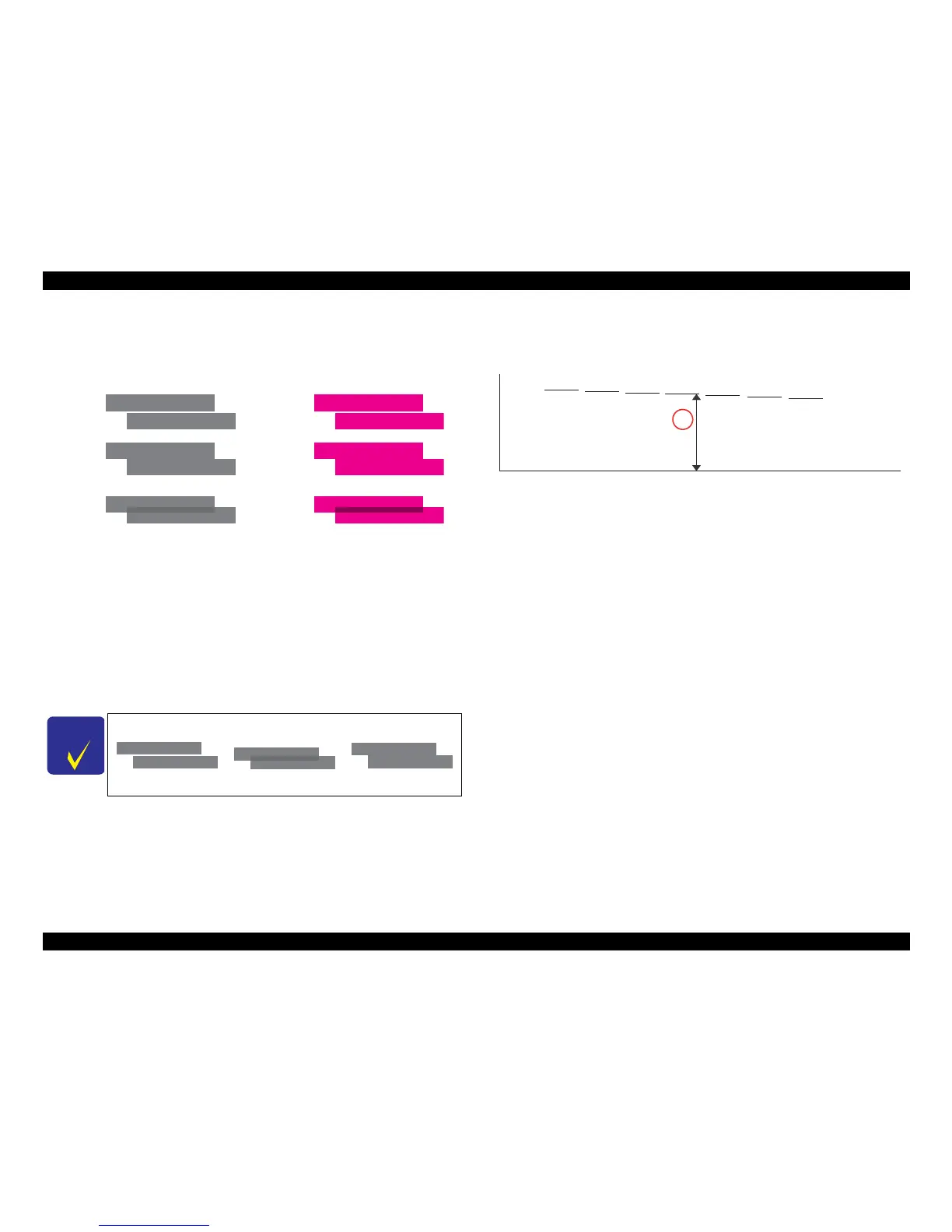

5.2.6 PF Band Adjustment
The following pattern is printed.
Figure 5-10. PF Band Adjustment Printout Pattern
How to Judge
Examine the printout patterns and enter the value for the pattern with no overlap and
gap between the two rectangles.
Additional Information
When overlap and gap are observed in the all patterns, enter the value for the best one,
and print the adjustment pattern again.
5.2.7 Bottom Margin Adjustment
The following pattern is printed.
Figure 5-11. Bottom Margin Adjustment Printout Pattern
How to Judge
Measure the length from the bottom edge of the paper to the printed line. Enter the
value for the line that is exactly 5 mm away from the bottom edge.
C H E C K
P O I N T
Example for judgement
1
2
3
1
2
3
NG NG OK
-3 -2 -1 0 1 2 3
5mm

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
