Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Removing the Housing 96
Confidential

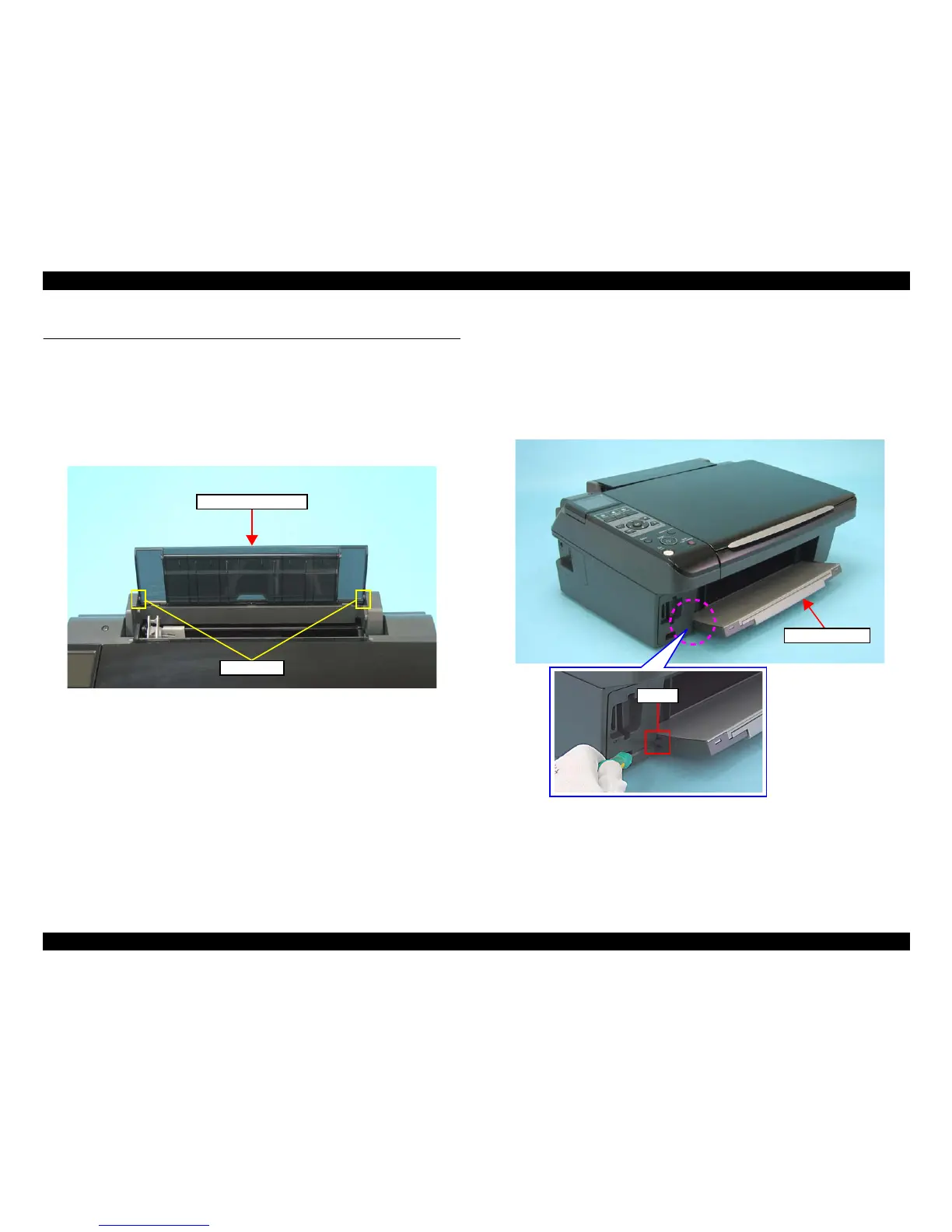

4.3 Removing the Housing
4.3.1 Paper Support Assy
 Parts/Components need to be removed in advance: None
 Removal procedure
1. Release the guide pins (x2) that secure the Paper Support Assy and remove it
from the Upper Housing.
Figure 4-2. Removing the Paper Support Assy
4.3.2 Stacker Assy
 Parts/Components need to be removed in advance: None
 Removal procedure
1. Open the Stacker Assy.
2. Release the Stacker Assy while pressing in the hook (x1) on the left with a
flathead precision screwdriver or a similar tool, and then remove it.
Figure 4-3. Removing the Stacker Assy
Paper Support Assy
Guide Pins
Hook
Stacker Assy

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
