Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 116
Confidential

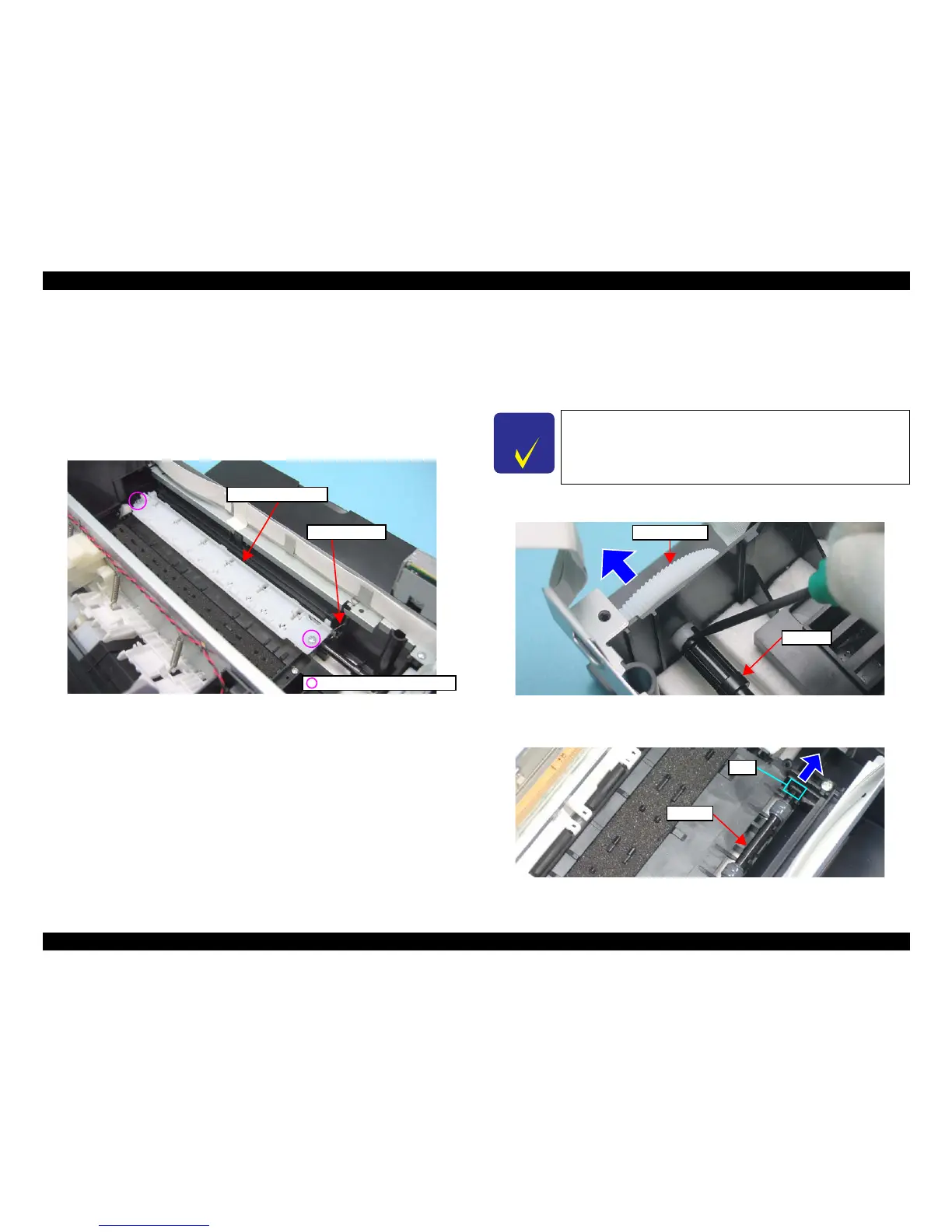

4.5.7 Star Wheel Holder Assy
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing
 Removal procedure
1. Remove the Grounding Spring from the Star Wheel Holder Assy.
2. Remove the screws (x2) that secure the Star Wheel Holder Assy, and remove
the Star Wheel Holder Assy.
Figure 4-53. Removing the Star Wheel Holder Assy
4.5.8 EJ Roller
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot
Cover/Lower Housing/Main Board Unit/Left Frame/Star Wheel Holder Assy
 Removal procedure
1. Insert a flathead precision screwdriver between the Spur Gear 51.5 and the EJ
Roller, and remove the Spur Gear 51.5 by pushing it in the direction of the arrow.
Figure 4-54. Removing the EJ Roller (1)
2. Remove the EJ Roller while pushing the tab on the right side of the Base
Frame in the direction of the arrow.
Figure 4-55. Removing the EJ Roller (2)
C.B.P. 3x8, F/Zn-3C (6±1kgfcm)
Star Wheel Holder Assy
Grounding Spring
C H E C K
P O I N T
The Spur Gear 51.5 cannot be reused after it is removed.
Whenever the gear is removed, make sure to attach a new one.
Spur Gear 51.5
EJ Roller
Tab
EJ Roller

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
