Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Removing the Circuit Boards 101
Confidential

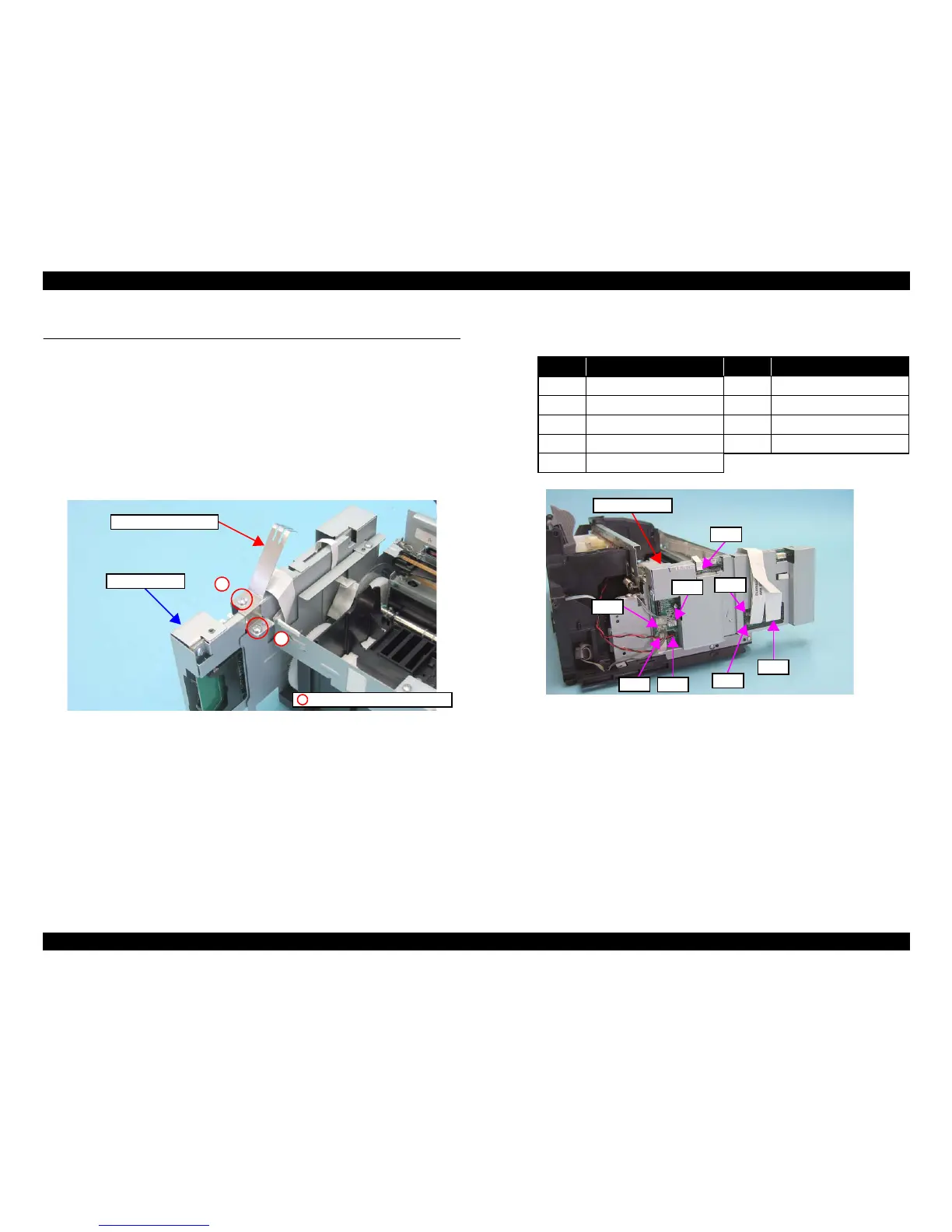

4.4 Removing the Circuit Boards
4.4.1 Main Board Unit
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot
Cover/Lower Housing
 Removal procedure
1. Remove the screws (x2) that secure the Panel Grounding Plate to the Main
Board Unit, and remove the Panel Grounding Plate.
Figure 4-14. Removing the Panel Grounding Plate
2. Disconnect the following connectors (x4) and FFCs (x5) from the Main
Board.
Figure 4-15. Removing the Main Board Unit (1)
C.B.S. 3x6, F/Zn-3C (4±0.5kgfcm)
Panel Grounding Plate
1
2
Main Board Unit
CN No.
Cable
CN No.
Cable
CN1 Power Supply Unit cable CN9 PF Motor cable
CN5 Head FFC CN11 PF Encoder FFC
CN6 Head FFC CN12 Panel Unit FFC
CN7 Head FFC CN24 PE Sensor cable
CN8 CR Motor cable
CN1
CN6
CN5
CN7
CN11
CN8
CN24
CN9
Main Board Unit

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
