EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 125
Confidential

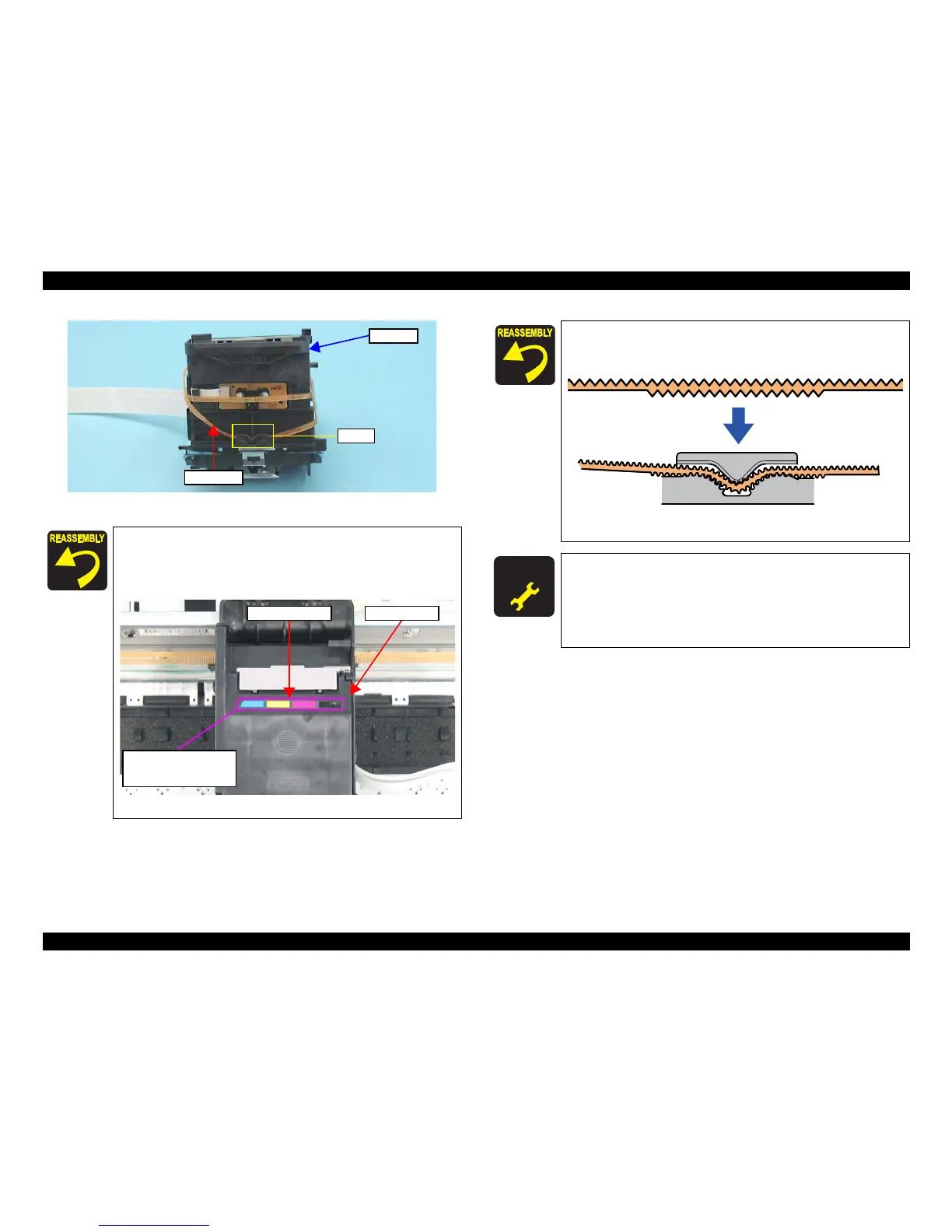

Figure 4-77. Removing the CR Unit (2)
The Ink Position Label is not included in the ASP unit of the
CR Unit. When replacing the CR Unit, order the Ink Position
Label separately and attach the label on the specified place as
shown in the figure below.
Figure 4-78. Attaching Ink Position Label
Timing Belt
Groove
CR Unit
Ink Position Label
Carriage Cover
Attach the label here. The
chipped corner must come
to the upper left.
Put the part of the Timing Belt toothed on its both sides into
the groove of the CR Unit.
Figure 4-79. Installing the Timing Belt
A D J U S T M E N T
R E Q U I R E D
Whenever the CR Unit is removed/replaced, the required
adjustments must be carried out.
Chapter 5 “ ADJUSTMENT” (p.141)
After replacing the CR Unit, be sure to perform the required
lubrication.
Chapter 6 “ MAINTENANCE” (p.151)
