DISASSEMBLY/ASSEMBLY Differences in Disassembling/Reassembling Stylus CX7300/TX200 series 140
Confidential

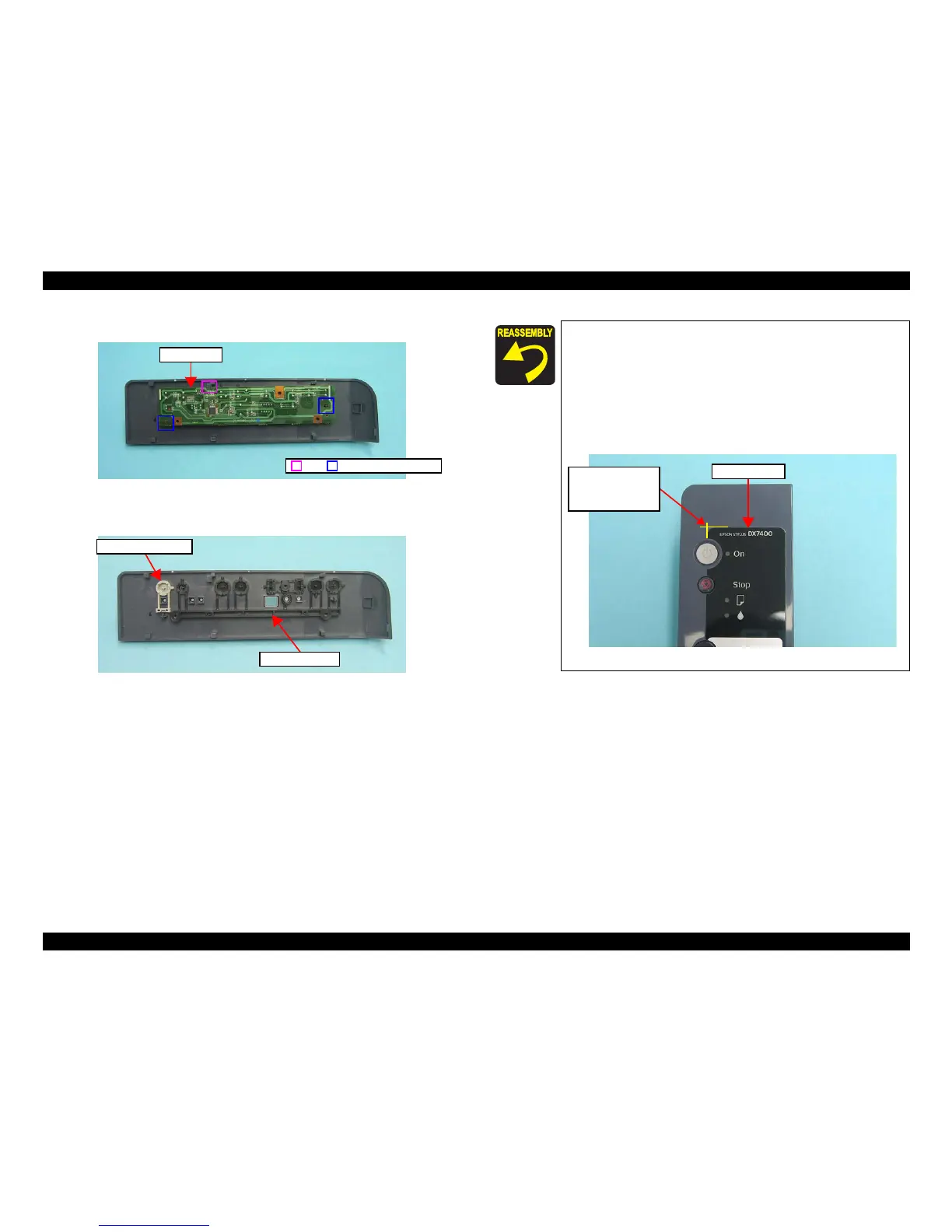

6. While avoiding the rib of the Panel Housing, remove the Panel Board.
Figure 4-119. Removing the Panel Board
7. Remove the Power SW Button and the Switch Button from the Panel Cover.
Figure 4-120. Removing the Switch Button
Positioning Hole and Pin
Panel Board
Rib
Power SW Button
Switch Button
 When installing the Panel Board, match the positioning holes
(x2) of the Panel Board with their positioning pins (x2) of the
Panel Housing as shown in
Figure 4-119.
 Tighten the screws in the order given in Figure 4-118.
 The Panel Sheet is not included in the ASP unit of the Panel
Unit. When replacing the Panel Unit, order the Panel Sheet
separately and attach it on the specified place as shown in the
figure below.
Figure 4-121. Panel Sheet Position
Panel Sheet
Align the upper left
corner of the Panel
Sheet with the groove
on the Panel Unit.
