Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
OPERATING PRINCIPLES Scanner Mechanism 57
Confidential
2.2.1.2 Scanner Carriage Unit Movement Overview
Scanning image is performed in the main scan direction (=1 line) by the CIS board and
in the sub-scan direction (=several lines) combined with Scanner Carriage Unit
movement. (refer to the figure below) The CIS board can scan 1 line in main scan
direction (parallel to the Scanner Carriage Unit) by one time. When scanning next lines
after the second line in sub-scan direction, CR driving moves the Scanner Carriage
Unit, and scan the other lines. The scanned data is sent to the control board. The
scanned data for “n” lines and “n-1” line are processed consecutively.

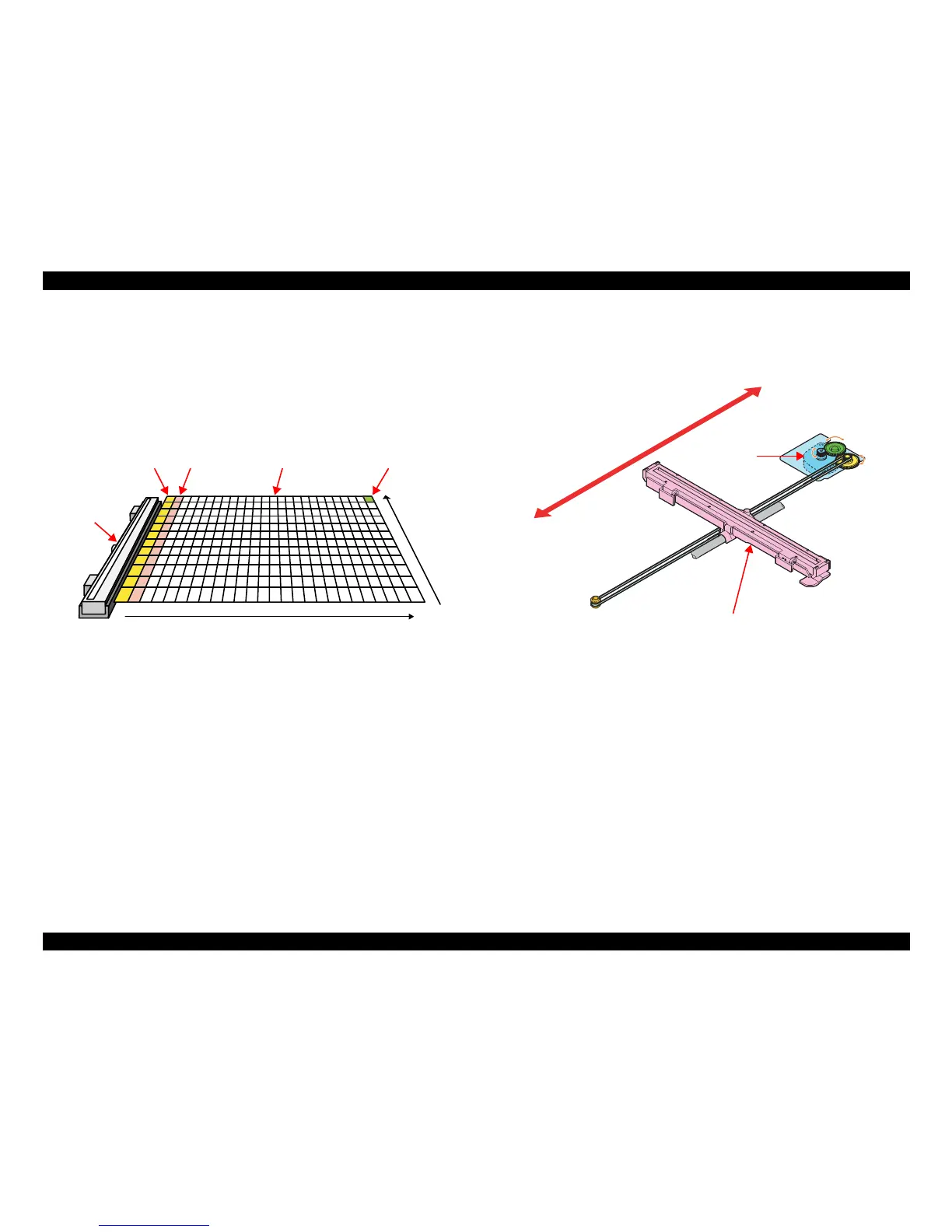

Figure 2-22. Scanner Carriage Unit movement
Drive of the Scanner Motor is transferred to the Scanner Carriage Unit by the Scanner
Timing Belt. The Scanner Carriage Unit slides in the secondary scanning direction.
The Scanner Motor uses a stepping motor and drives using open loop control.
Figure 2-23. Scanner Carriage Unit Mechanism
1st line 2nd line 1 pixel
Main-scan
direction
Sub-scan direction by Scanner Carriage Unit movement
Document
Scanner Carriage
Unit
Right side
Left side
Scanner Motor
Scanner Carriage Unit

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
