Epson Stylus CX7300 Service Manual

EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
TROUBLESHOOTING Error Indications and Fault Occurrence Causes 89
Confidential
• Ink stain of paper
Ink sticks to other than the print area of
the paper, resulting in contamination.
Printhead
1. Check if the Printhead Cover does not have the ink drop. 1. Clean the Printhead Cover carefully with a soft
cloth.
Upper Paper Guide
Unit
1. Check if the Upper Paper Guide Unit is free from ink
stain.
1. Clean the Upper Paper Guide Unit with a soft
cloth.
Star Wheel Holder
Assy
1. Check if the Star Wheels is free from ink stain. 1. Clean the Star Wheels with a soft cloth.

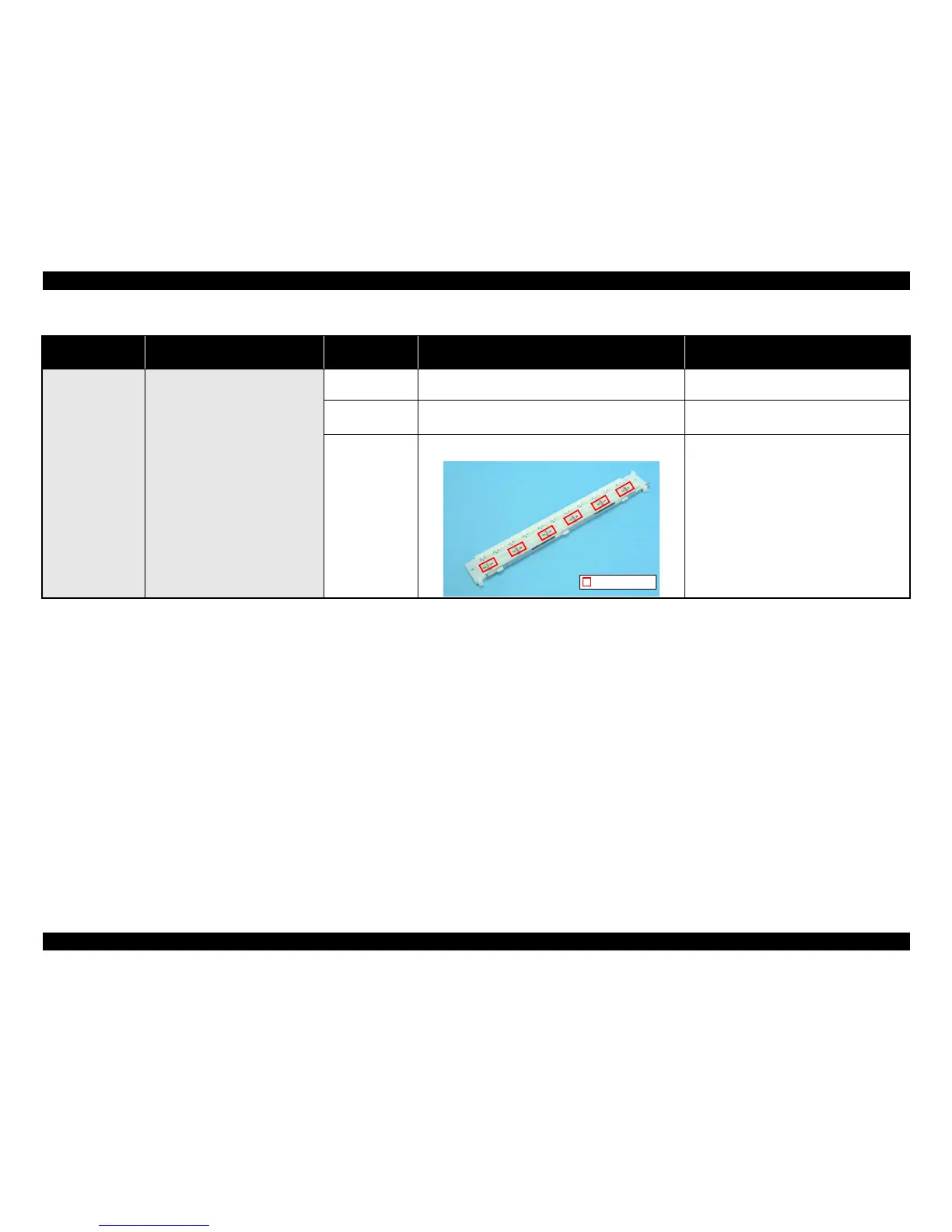

Table 3-22. Check point for the defective printing quality
Print Quality State Detailed phenomenon
Defective
unit/part name
Check point Remedy
Star Wheels

Epson Stylus CX7300 Specifications

General

Device Type	Multifunction printer
Printer Type	Inkjet
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanning Resolution	1200 x 2400 dpi
Interface	USB 2.0
Ink Cartridge Configuration	4 individual ink cartridges
Inkjet Technology	Epson Micro Piezo
Display	LCD
Media Type	Plain paper, photo paper
Standard Media Size	A4
Paper Sizes Supported	A4, A5, B5, Legal, Letter
Dimensions (W x D x H)	43.4 cm x 32.7 cm x 18.5 cm
Weight	5.9 kg
