Epson STYLUS PRO 4910 - Removing the Cutter Motor Assy

Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 225
Confidential
10. Remove the two screws that secure the Cutter Motor Assy.
B) Silver, Phillips, Round Washer Head S-tite M3x5: two pieces
11. Remove the Cutter Motor Assy.

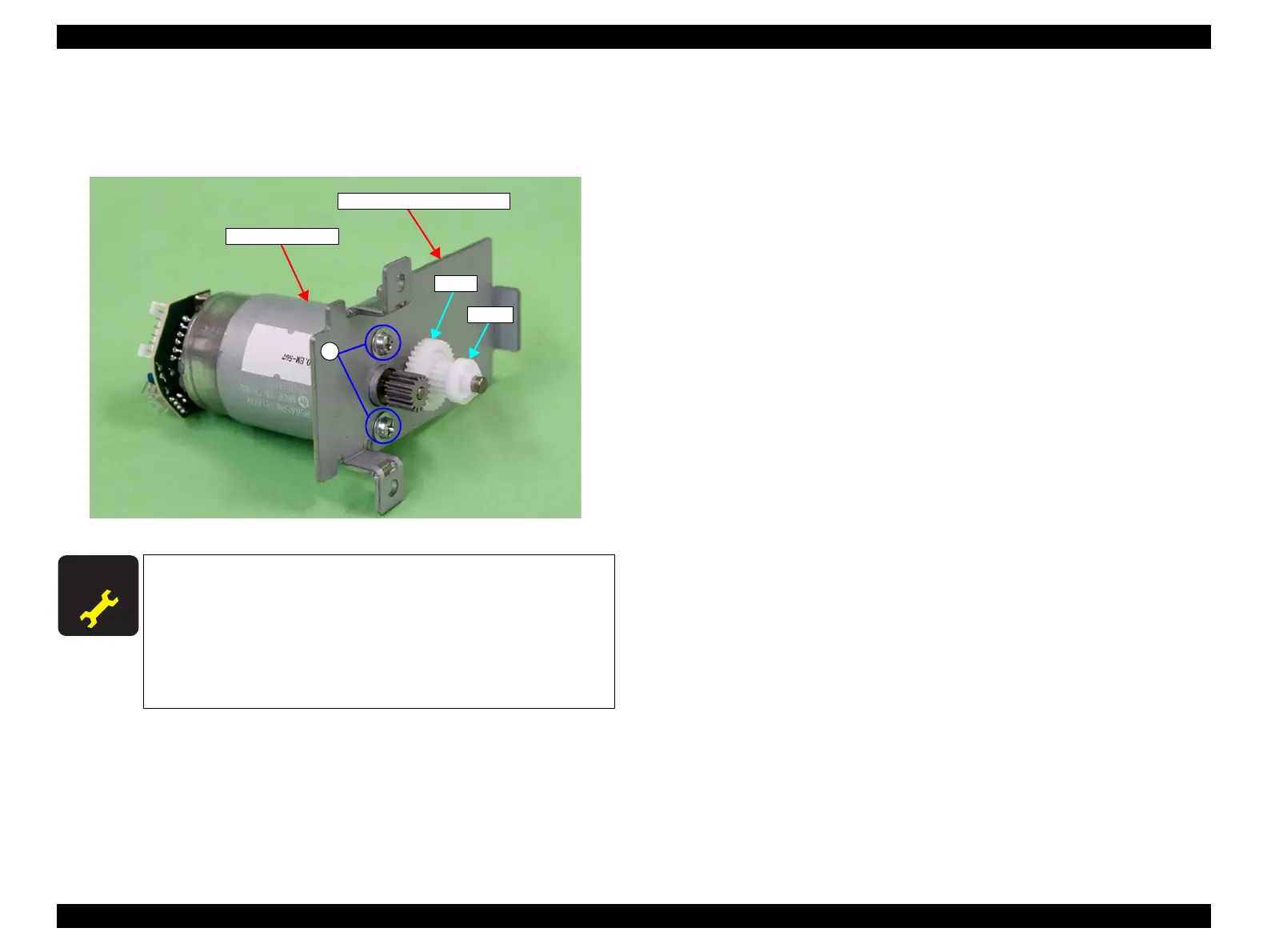

Figure 3-156. Removing the Cutter Motor Assy
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 4 “Adjustment” (see p277) and perform
specified adjustments after replacing or removing the Cutter Motor
Assy.
<Adjustment items>
1. Counter Reset (Cutter Motor Assy Counter)
2. Sensor Check (Cutter HP Sensor)
3. Cut Position Check & Adjustment
Pulley
Cutter Motor Assy
Gear
Cutter motor mounting plate
B
