13. Remove the screw that secures the Cutter HP Sensor.
B) Silver, Phillips, Pan machine screw M1.7x6 (bit: No.1): one piece
14. While pulling out the harness, remove the Cutter HP Sensor.

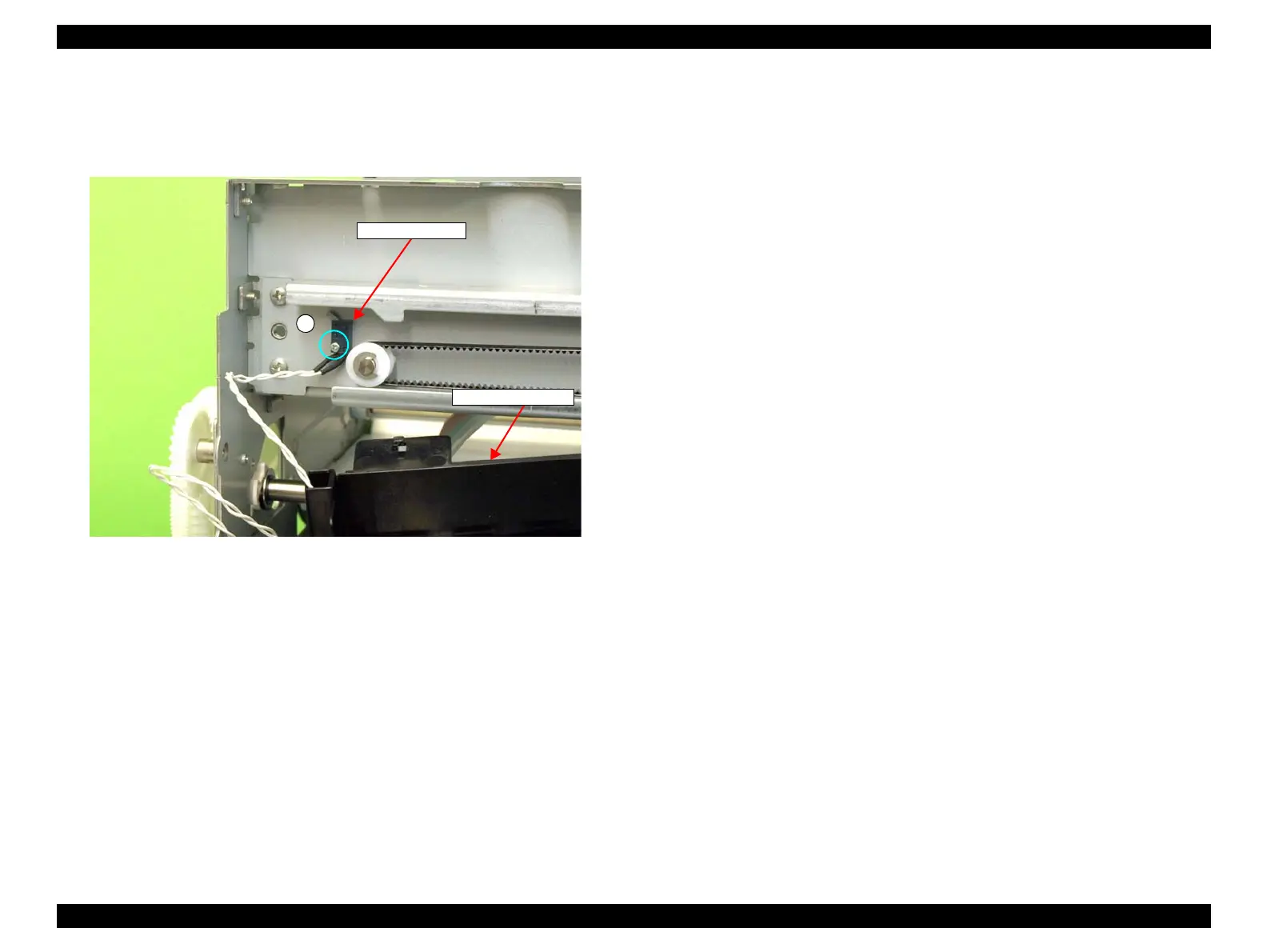

Figure 3-159. Removing the Cutter HP Sensor
B
Cutter HP Sensor
Cutter cover holder
