140

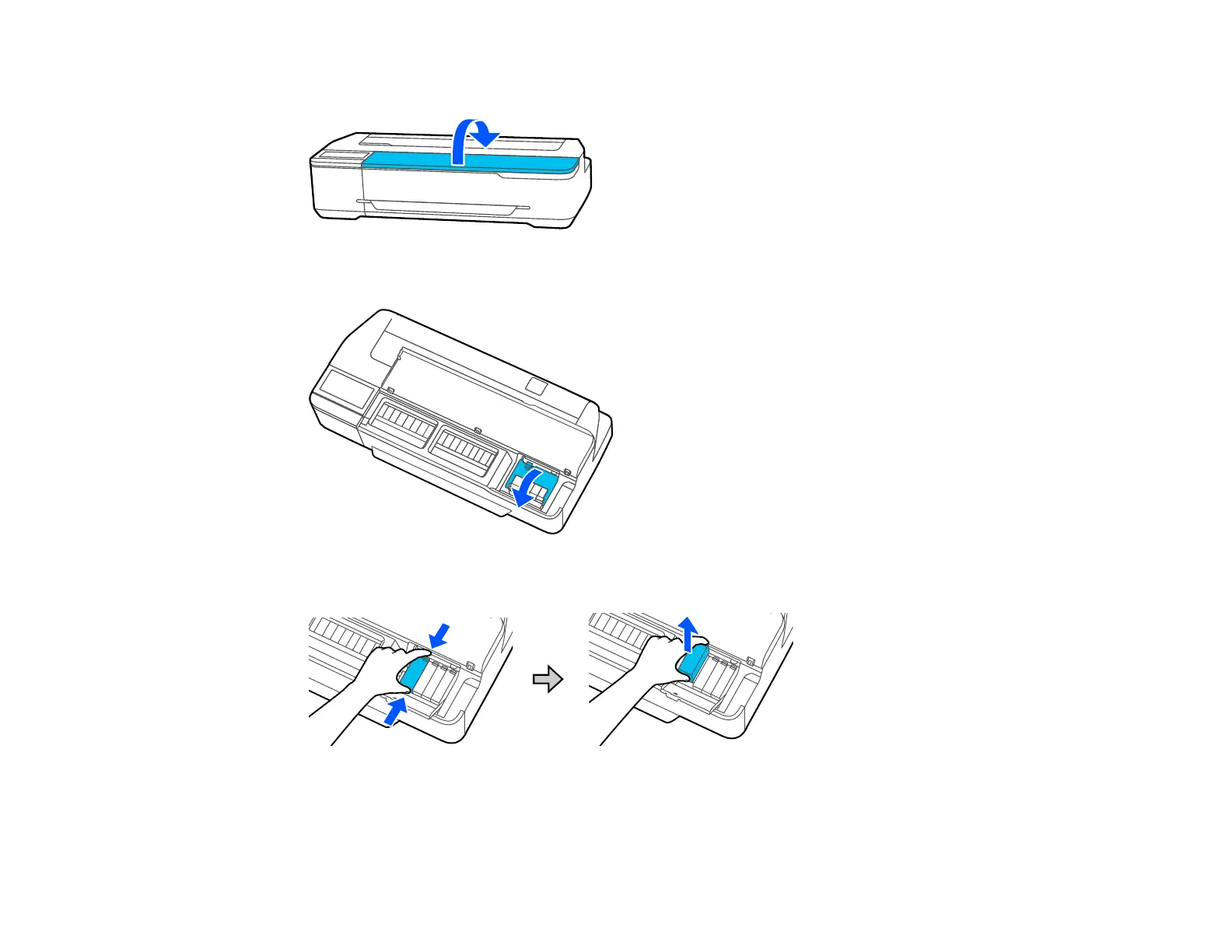

3. Open the front cover.

4. Press the tab on the ink cartridge cover and lift to open the cover.

5. Push in the tab at the top of the ink cartridge and pull it out.

Note: Dispose of used cartridges carefully. Do not take the used cartridge apart or try to refill it.

Table of Contents3
Epson Surecolor T2170/T3170/T5170 User's Guide9
Introduction to Your Printer10
Printer Features10
Optional Equipment and Replacement Parts11
Notations Used in the Documentation11
Printer Part Locations12
Product Parts - Front12
Product Parts - Top/Inside13
Product Parts - Rear14
Control Panel Parts15
Using the Control Panel17
Changing the LCD Screen Language17
Selecting the Date and Time18
Setting a Password and Locking the Control Panel19
Using Airprint21
Assembling the Printer Stand and Paper Basket21
Wi-Fi or Wired Networking35
Network Security Recommendations35
Wi-Fi Infrastructure Mode Setup36
Selecting Wireless Network Settings from the Control Panel37
Wi-Fi Direct Mode Setup39
Enabling Wi-Fi Direct Mode39
Wi-Fi Protected Setup (WPS)41
Using WPS to Connect to a Network41
Printing a Network Status Sheet42
Changing or Updating Network Connections43
Accessing the Web Config Utility43
Changing a USB Connection to a Wi-Fi Connection44
Changing a Wi-Fi Connection to a Wired Network Connection44
Connecting to a New Wi-Fi Router45
Disabling Wi-Fi Features46
Media Handling47
Roll Paper Handling47
Loading Roll Paper47
Cutting Roll Paper51
Cutting Roll Paper Manually51
Removing Roll Paper52
Cut Sheet Handling54
Loading Single Cut Sheets55
Loading Paper in the Auto Sheet Feeder57
Removing Paper from the Auto Sheet Feeder61
Creating Custom Paper Configurations64
Selecting Custom Paper Configurations64
Compatible Epson Papers65
Paper or Media Type Settings - Printing Software67
Selecting the Paper Settings for each Source - Control Panel68
Paper Type Settings - Control Panel69
Printing from a Computer70
Printing with Windows70
Selecting Basic Print Settings - Windows71
Document Size Options - Windows73
Paper Source Options - Windows73
Print Mode Options - Windows74
Color Mode Options - Windows74
Level Options - Windows75
Using Layout Manager - Windows77
Selecting Print Layout Options - Windows82
Page Layout Options - Windows83
Selecting Advanced Settings - Windows84
Roll Paper Options - Windows85
Selecting Additional Settings - Windows86
Printing Your Document - Windows87
Checking Print Status - Windows88
Saving, Sharing, and Customizing the Printer Settings88
Saving and Sharing Print Settings - Windows88
Editing Print Setting Displays - Windows90
Selecting Default Print Settings - Windows91
Changing the Language of the Printer Software Screens92
Changing Automatic Update Options93
Printing with the Built-In Epson Driver - Windows 10 S94
Selecting Print Settings - Windows 10 S95
Printing on a Mac97
Selecting Basic Print Settings - Mac98
Paper Size Options - Mac102
Paper Source Options - Mac102
Print Mode Options - Mac103
Color Mode Options - Mac103
Level Options - Mac104
Selecting Print Layout Options - Mac105
Selecting Advanced Settings - Mac105
Managing Color - Mac107
Color Matching Options - Mac108
Sizing Printed Images - Mac108
Selecting Printing Preferences - Mac108
Printing Preferences - Mac109
Printing Your Document - Mac110
Checking Print Status - Mac111
Printing CAD Drawings112
Printing CAD Drawings from the Printer Driver112
Printing CAD Drawings in HP-GL/2 or HP RTL Mode114
Using Your Printer as a Copier116
Connecting a Scanner to Your Printer116
Placing Originals in the Scanner117
Printing Enlarged Copies from the Scanner117
Supported Copy Sizes118
Using the Control Panel Menus120
Accessing the Printer's Menus120
Paper Setting Menu121
Basic Settings Menu123
Printer Settings Menu125
Network Settings Menu131
System Administration Settings Menu131
Maintenance Menu133
Printer Status/Print Menu134
Replacing Ink Cartridges and Maintenance Boxes135
Check Cartridge and Maintenance Box Status135
Checking Ink Cartridge and Maintenance Box Status on the LCD Screen135
Checking Ink Cartridge and Maintenance Box Status with Windows136
Checking Cartridge and Maintenance Box Status - Mac137
Purchase Epson Ink Cartridges and Maintenance Box138
Ink Cartridge and Maintenance Box Part Numbers139
Removing and Installing Ink Cartridges139
Replacing the Maintenance Box142
Adjusting Print Quality145
Print Head Maintenance145
Print Head Nozzle Check145
Checking the Nozzles Using the Product Control Panel145
Checking the Nozzles Using a Computer Utility147
Print Head Cleaning149
Cleaning the Print Head Using the Product Control Panel150
Cleaning the Print Head Using a Computer Utility151
Using the Powerful Cleaning Utility153
Adjusting Print Quality Using the Product Control Panel155
Cleaning the Auto Sheet Feeder157
Cleaning the Roll Paper Feeder158
Maintenance and Transportation159
Replacing the Cutter159
Moving or Transporting Your Product162
Discharging Ink164
Solving Problems166
Checking for Software Updates166
Product Status Messages167
Resetting Control Panel Defaults168
Solving Printer Problems169
Printer Does Not Turn on169
LCD Screen Shuts off170
Solving Network Problems170
Product Cannot Connect to a Wireless Router or Access Point170
Network Software Cannot Find Product on a Network171
Product Does Not Appear in Mac Printer Window172
Cannot Print over a Network173
Solving Printing Problems174
Nothing Prints174
Print Head Moves but Nothing Prints175
Solving Paper Problems175
Paper Feeding Problems176
Printout Quality Problems177
Roll Paper Jam Problems177
Cut Sheet Paper Jam Problems179
Solving Print Quality Problems180
Overall Print Quality Is Poor180
Lines Are Misaligned182
Prints Are Scuffed or Smeared182
Prints Are Not Positioned Properly183
Too Much Ink Is Consumed183
Cannot Make Enlarged Copies from Scanner184
Uninstall Your Product Software184
Uninstalling Product Software - Windows184
Uninstalling Product Software - Mac185
Where to Get Help186
Technical Specifications188
Windows System Requirements188
Mac System Requirements189
Paper Specifications189
Printable Area Specifications191
Ink Cartridge Specifications193
Dimension Specifications194
Electrical Specifications195
Environmental Specifications196
Interface Specifications196
Network Interface Specifications196
Safety and Approvals Specifications197
Notices199
Important Safety Instructions199
General Product Safety Instructions199
Ink Cartridge Safety Instructions201
LCD Screen Safety Instructions202
Wireless Connection Safety Instructions202
FCC Compliance Statement203
Binding Arbitration and Class Waiver203
Trademarks207
Copyright Notice207
A Note Concerning Responsible Use of Copyrighted Materials208
Default Delay Times for Power Management for Epson Products208
Copyright Attribution208
