Parent topic: Media Handling
Loading Single Cut Sheets
You can print on a variety of cut sheet paper types and sizes up to 24 inches (61 cm) [SureColor
T2170/T3170] or 36 inches (91 cm) [SureColor T5170] wide and 0.1 inch (0.27 mm) thick. You can load
and print on one sheet at a time.
Before printing on cut sheets, remove any loaded roll paper, close the auto sheet feeder, and remove the
output tray.
1. Make sure Load paper is displayed on the home screen.
2. Select Paper Setting > Cut Sheet (1 sheet) on the LCD screen

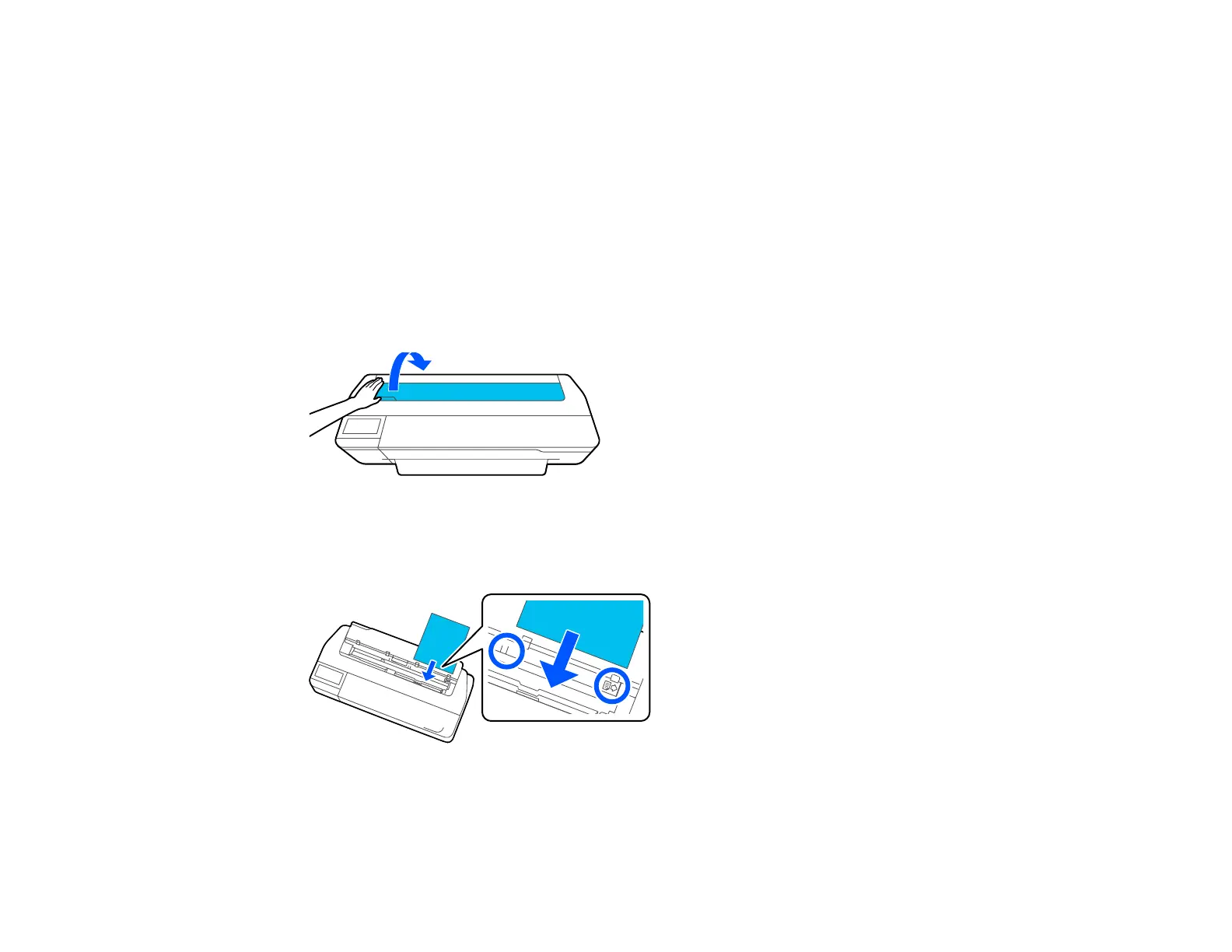

3. Open the cut sheet cover.
4. Load one sheet of paper, printable side up in portrait orientation. Align the right edge of the paper
with the right mark line and plastic ledge on the printer and the left mark line for the paper size you
are using.
To Next Page
