56

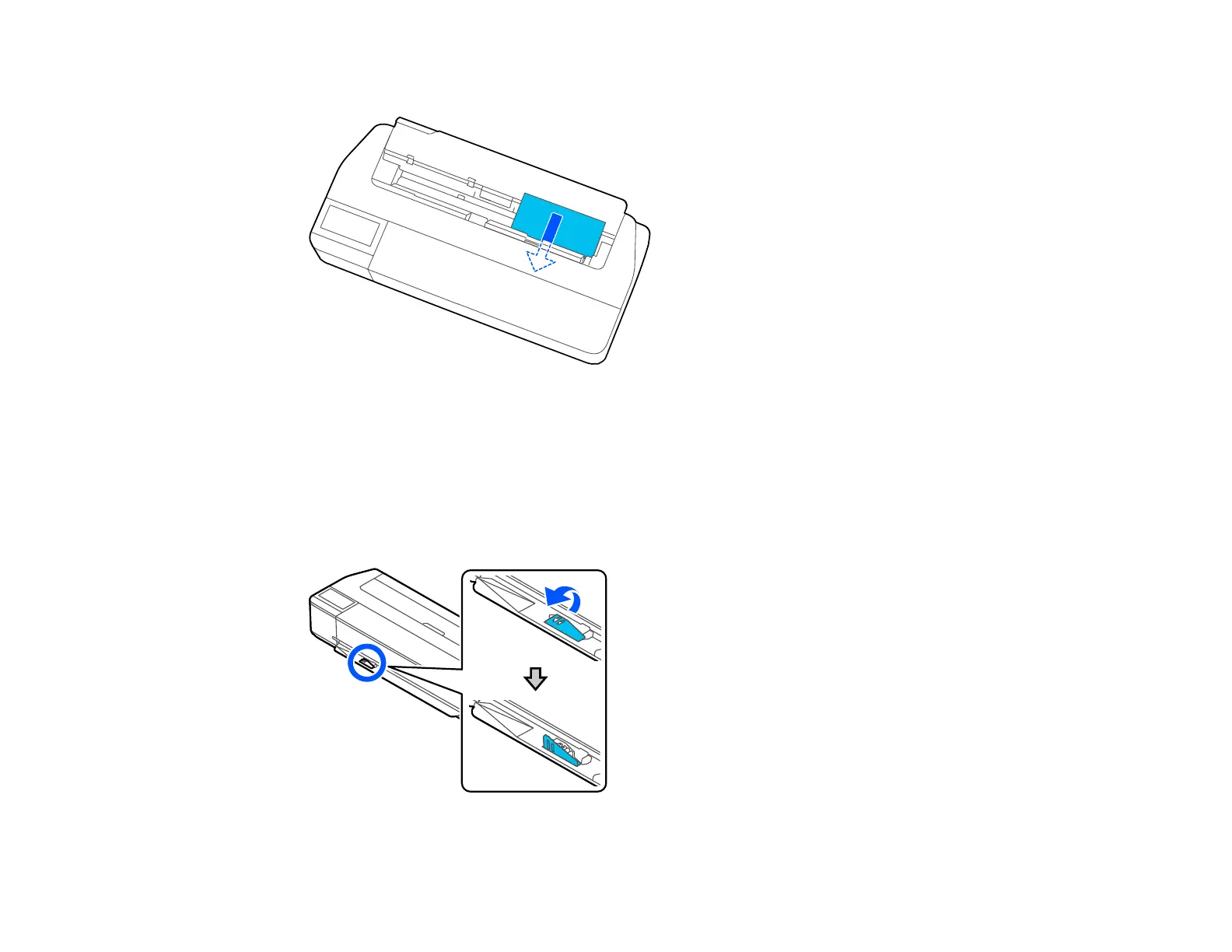

5. Insert the paper into the paper feeder until you hear a beep.
Note: Make sure the leading edge of the paper is straight to prevent a skew error or paper jam.
6. Select the paper type and size you loaded on the LCD screen.
Note: When you load B1 (27.8 × 39.4 inches [707 × 1000 mm]) paper in the SureColor T5170, raise
the B1 width paper support as shown or the printout may be scuffed or soiled. Lower the support
when printing on any other paper size.
