152

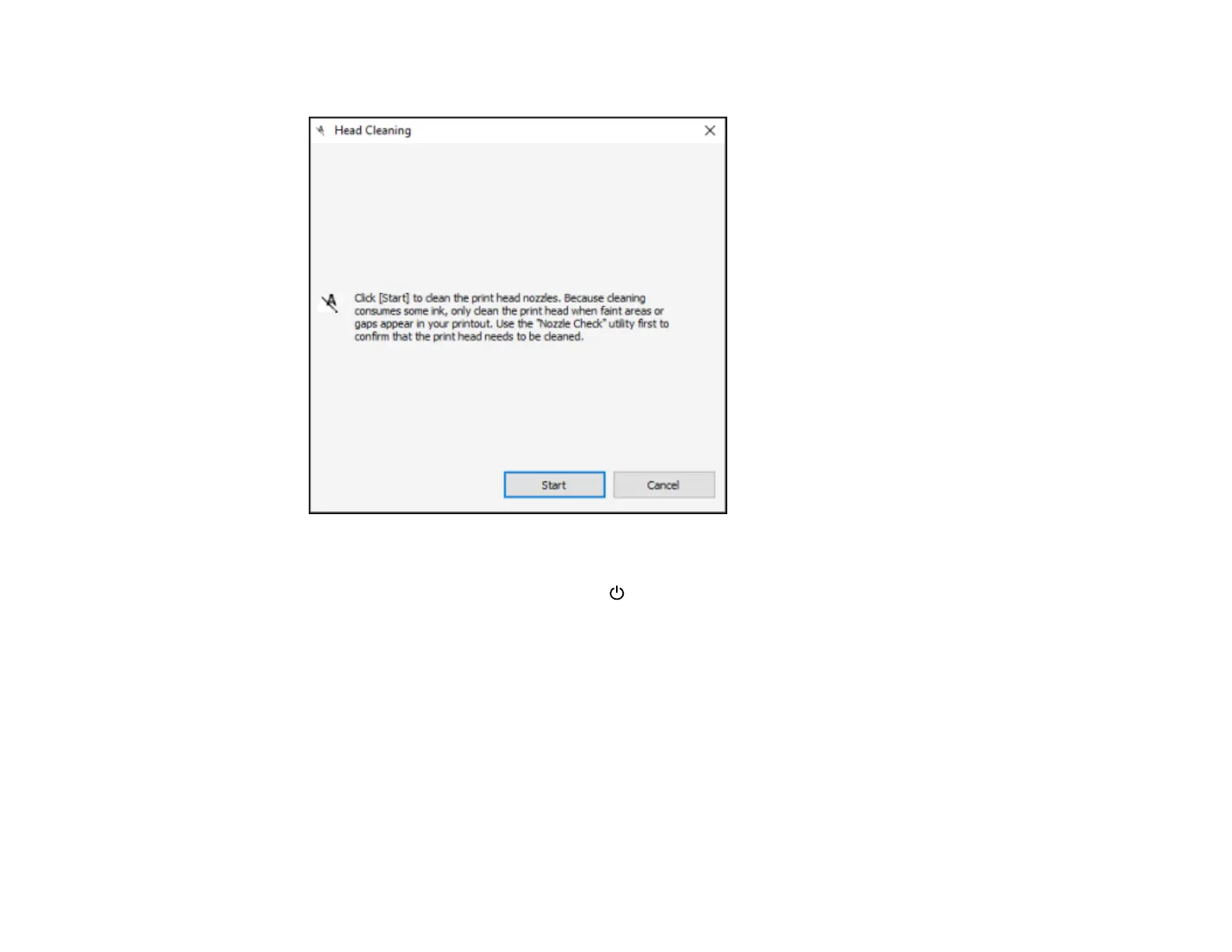

You
see
a
window
like
this:
4.
Click
Start
to
begin
the
cleaning
cycle.
When
the
cleaning
cycle
is
finished,
the
power
light
stops
flashing
and
a
confirmation
screen
appears.
Caution:
Never
open
any
covers
or
turn
off
the
product
during
a
cleaning
cycle
or
you
may
damage
it.
5.
Click
Print
Nozzle
Check
Pattern
.
The
nozzle
pattern
prints.
151
153
Table of Contents
Table of Contents
3
Epson Surecolor T2170/T3170/T5170 User's Guide
9
Introduction to Your Printer
10
Printer Features
10
Optional Equipment and Replacement Parts
11
Notations Used in the Documentation
11
Printer Part Locations
12
Product Parts - Front
12
Product Parts - Top/Inside
13
Product Parts - Rear
14
Control Panel Parts
15
Using the Control Panel
17
Changing the LCD Screen Language
17
Selecting the Date and Time
18
Setting a Password and Locking the Control Panel
19
Using Airprint
21
Assembling the Printer Stand and Paper Basket
21
Wi-Fi or Wired Networking
35
Network Security Recommendations
35
Wi-Fi Infrastructure Mode Setup
36
Selecting Wireless Network Settings from the Control Panel
37
Wi-Fi Direct Mode Setup
39
Enabling Wi-Fi Direct Mode
39
Wi-Fi Protected Setup (WPS)
41
Using WPS to Connect to a Network
41
Printing a Network Status Sheet
42
Changing or Updating Network Connections
43
Accessing the Web Config Utility
43
Changing a USB Connection to a Wi-Fi Connection
44
Changing a Wi-Fi Connection to a Wired Network Connection
44
Connecting to a New Wi-Fi Router
45
Disabling Wi-Fi Features
46
Media Handling
47
Roll Paper Handling
47
Loading Roll Paper
47
Cutting Roll Paper
51
Cutting Roll Paper Manually
51
Removing Roll Paper
52
Cut Sheet Handling
54
Loading Single Cut Sheets
55
Loading Paper in the Auto Sheet Feeder
57
Removing Paper from the Auto Sheet Feeder
61
Creating Custom Paper Configurations
64
Selecting Custom Paper Configurations
64
Compatible Epson Papers
65
Paper or Media Type Settings - Printing Software
67
Selecting the Paper Settings for each Source - Control Panel
68
Paper Type Settings - Control Panel
69
Printing from a Computer
70
Printing with Windows
70
Selecting Basic Print Settings - Windows
71
Document Size Options - Windows
73
Paper Source Options - Windows
73
Print Mode Options - Windows
74
Color Mode Options - Windows
74
Level Options - Windows
75
Using Layout Manager - Windows
77
Selecting Print Layout Options - Windows
82
Page Layout Options - Windows
83
Selecting Advanced Settings - Windows
84
Roll Paper Options - Windows
85
Selecting Additional Settings - Windows
86
Printing Your Document - Windows
87
Checking Print Status - Windows
88
Saving, Sharing, and Customizing the Printer Settings
88
Saving and Sharing Print Settings - Windows
88
Editing Print Setting Displays - Windows
90
Selecting Default Print Settings - Windows
91
Changing the Language of the Printer Software Screens
92
Changing Automatic Update Options
93
Printing with the Built-In Epson Driver - Windows 10 S
94
Selecting Print Settings - Windows 10 S
95
Printing on a Mac
97
Selecting Basic Print Settings - Mac
98
Paper Size Options - Mac
102
Paper Source Options - Mac
102
Print Mode Options - Mac
103
Color Mode Options - Mac
103
Level Options - Mac
104
Selecting Print Layout Options - Mac
105
Selecting Advanced Settings - Mac
105
Managing Color - Mac
107
Color Matching Options - Mac
108
Sizing Printed Images - Mac
108
Selecting Printing Preferences - Mac
108
Printing Preferences - Mac
109
Printing Your Document - Mac
110
Checking Print Status - Mac
111
Printing CAD Drawings
112
Printing CAD Drawings from the Printer Driver
112
Printing CAD Drawings in HP-GL/2 or HP RTL Mode
114
Using Your Printer as a Copier
116
Connecting a Scanner to Your Printer
116
Placing Originals in the Scanner
117
Printing Enlarged Copies from the Scanner
117
Supported Copy Sizes
118
Using the Control Panel Menus
120
Accessing the Printer's Menus
120
Paper Setting Menu
121
Basic Settings Menu
123
Printer Settings Menu
125
Network Settings Menu
131
System Administration Settings Menu
131
Maintenance Menu
133
Printer Status/Print Menu
134
Replacing Ink Cartridges and Maintenance Boxes
135
Check Cartridge and Maintenance Box Status
135
Checking Ink Cartridge and Maintenance Box Status on the LCD Screen
135
Checking Ink Cartridge and Maintenance Box Status with Windows
136
Checking Cartridge and Maintenance Box Status - Mac
137
Purchase Epson Ink Cartridges and Maintenance Box
138
Ink Cartridge and Maintenance Box Part Numbers
139
Removing and Installing Ink Cartridges
139
Replacing the Maintenance Box
142
Adjusting Print Quality
145
Print Head Maintenance
145
Print Head Nozzle Check
145
Checking the Nozzles Using the Product Control Panel
145
Checking the Nozzles Using a Computer Utility
147
Print Head Cleaning
149
Cleaning the Print Head Using the Product Control Panel
150
Cleaning the Print Head Using a Computer Utility
151
Using the Powerful Cleaning Utility
153
Adjusting Print Quality Using the Product Control Panel
155
Cleaning the Auto Sheet Feeder
157
Cleaning the Roll Paper Feeder
158
Maintenance and Transportation
159
Replacing the Cutter
159
Moving or Transporting Your Product
162
Discharging Ink
164
Solving Problems
166
Checking for Software Updates
166
Product Status Messages
167
Resetting Control Panel Defaults
168
Solving Printer Problems
169
Printer Does Not Turn on
169
LCD Screen Shuts off
170
Solving Network Problems
170
Product Cannot Connect to a Wireless Router or Access Point
170
Network Software Cannot Find Product on a Network
171
Product Does Not Appear in Mac Printer Window
172
Cannot Print over a Network
173
Solving Printing Problems
174
Nothing Prints
174
Print Head Moves but Nothing Prints
175
Solving Paper Problems
175
Paper Feeding Problems
176
Printout Quality Problems
177
Roll Paper Jam Problems
177
Cut Sheet Paper Jam Problems
179
Solving Print Quality Problems
180
Overall Print Quality Is Poor
180
Lines Are Misaligned
182
Prints Are Scuffed or Smeared
182
Prints Are Not Positioned Properly
183
Too Much Ink Is Consumed
183
Cannot Make Enlarged Copies from Scanner
184
Uninstall Your Product Software
184
Uninstalling Product Software - Windows
184
Uninstalling Product Software - Mac
185
Where to Get Help
186
Technical Specifications
188
Windows System Requirements
188
Mac System Requirements
189
Paper Specifications
189
Printable Area Specifications
191
Ink Cartridge Specifications
193
Dimension Specifications
194
Electrical Specifications
195
Environmental Specifications
196
Interface Specifications
196
Network Interface Specifications
196
Safety and Approvals Specifications
197
Notices
199
Important Safety Instructions
199
General Product Safety Instructions
199
Ink Cartridge Safety Instructions
201
LCD Screen Safety Instructions
202
Wireless Connection Safety Instructions
202
FCC Compliance Statement
203
Binding Arbitration and Class Waiver
203
Trademarks
207
Copyright Notice
207
A Note Concerning Responsible Use of Copyrighted Materials
208
Default Delay Times for Power Management for Epson Products
208
Copyright Attribution
208
