Epson TM-U220 Series

Rev. B Disassembly and Assembly 4-23
TM-U220 Type A Service Manual
Confidential

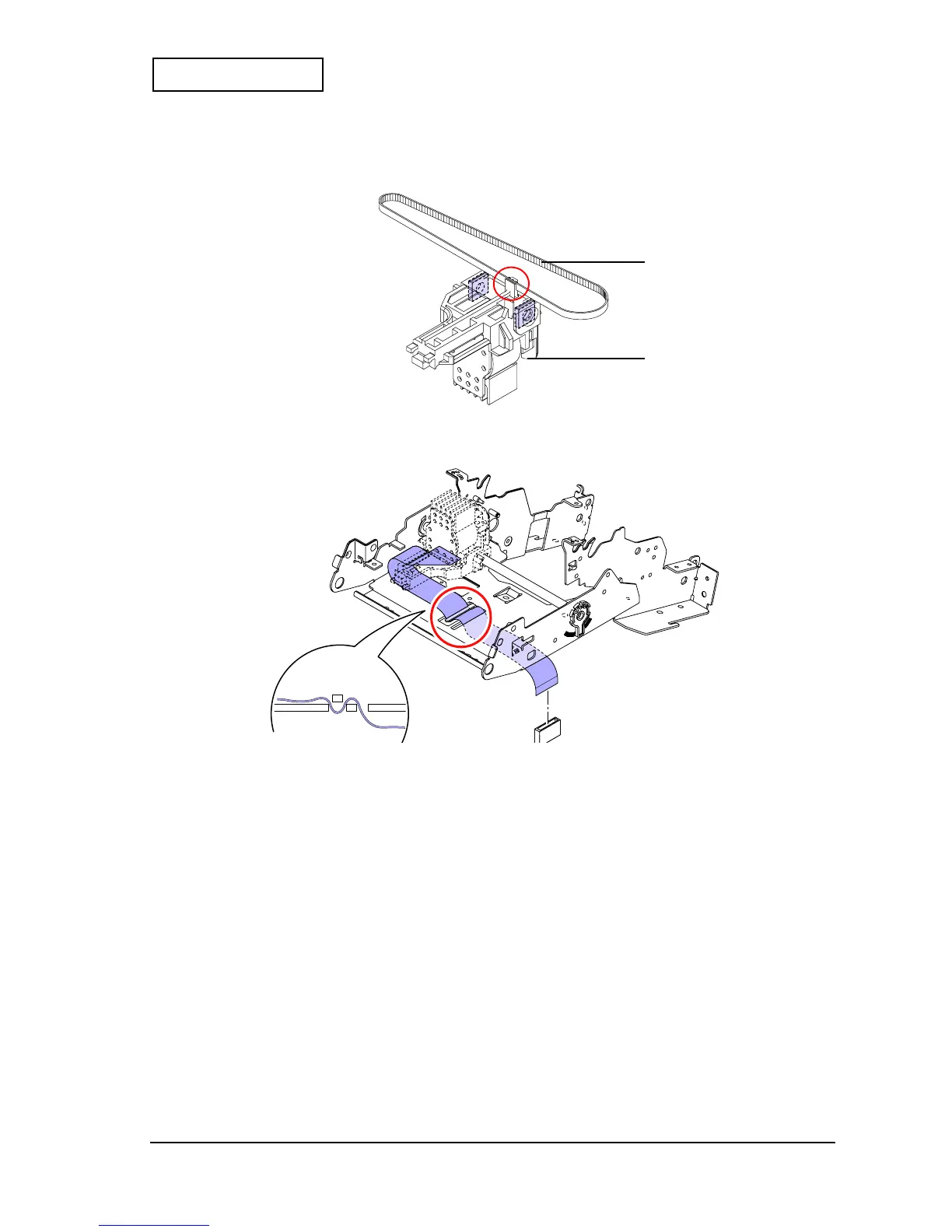

Attaching the Carriage Belt
Attaching the Head FFC
Carriage belt
Carriage sub assembly
When attaching the FFC to the frame, be sure
that the FFC is threaded as shown.
