5-6 Adjustment and Setting Rev. B
Confidential

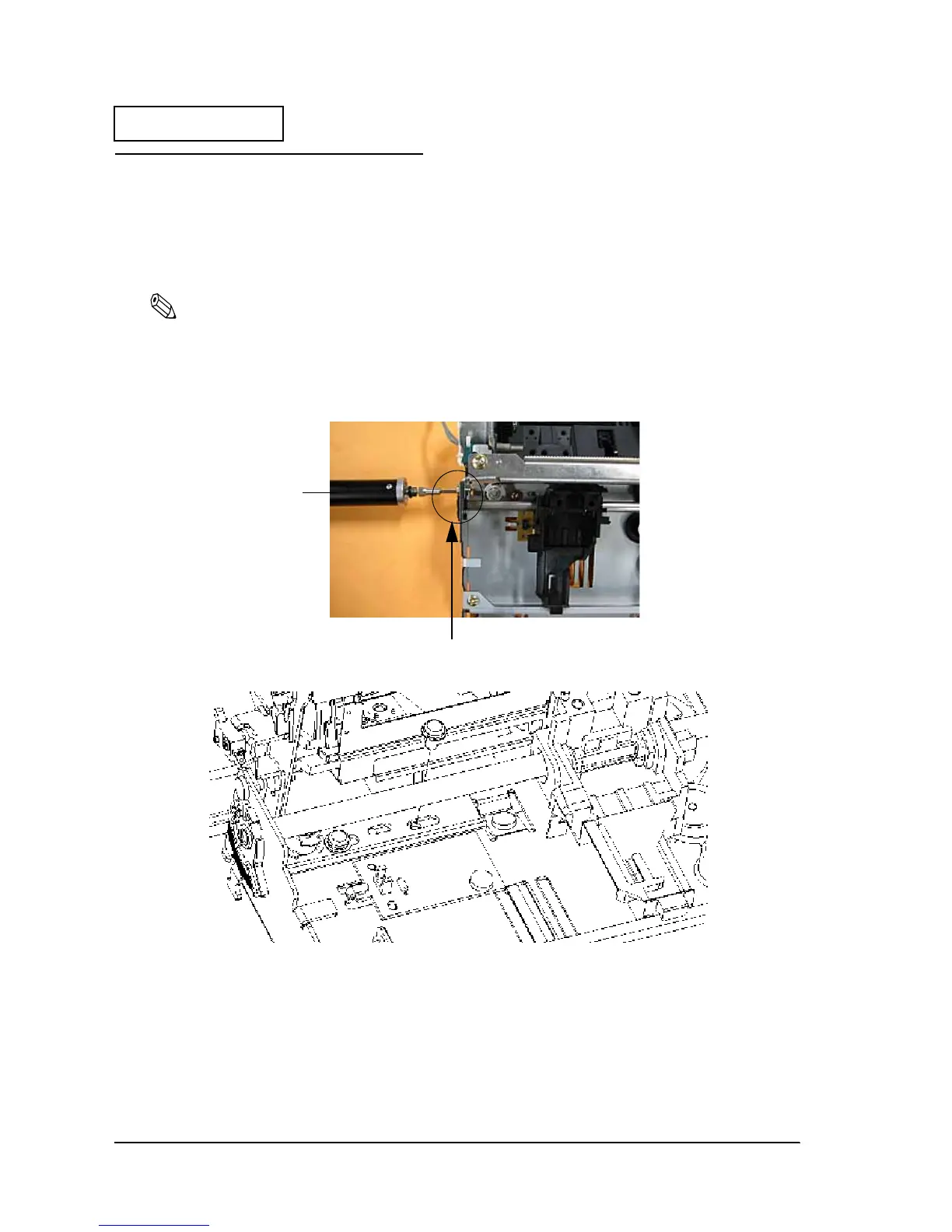

Carriage Belt Tension Adjustment
1. Loosen the screw for the belt tension plate assembly. Hook the end of the tension gauge to
the hole in the belt tension plate assembly, adjust the tension properly, and tighten with the
screw.
2. Check the belt tension.
Note:
Make sure the belt tension plate is stable when loosening the screw that you tightened for the belt tension
plate while pulling the carriage belt with the tension gauge by 7.35N.
3. Tighten the belt tension plate assembly again with the screw.
Hook the end of the tension gauge and adjust the tension.
Tension gauge
