Epson TM-U220 Series Service Manual

Rev. B Adjustment and Setting 5-3
TM-U220 Type A Service Manual
Confidential
Setting the Paper Roll Width
The TM-U220 accommodates 76 mm {3"}, 69.5 mm {2.74"}, and 57.5 mm {2.26"} width paper rolls
with no adjustments. For the each roll width, use the roll paper spacer included with the printer.
Note:
❏
The default paper width setting value saved in NV memory is 76 mm. So, if the customer does not use
76 mm width paper, return the printer only after setting the memory switch to the customer’s paper
width value using the appropriate method for each printer function below.
Use the TM Service Utility (See page 2-5.)
Use the Memory Switch Setup Mode (See page 5-12.)
❏
For printer models with a paper near-end detector, be careful not to pinch the near-end detector lead
wires between the roll paper spacer and the roll paper holder, and be sure to push the lead wires inside,
so that the paper-end detector lead wires do not contact the motor gear.
1. Open the paper roll cover.

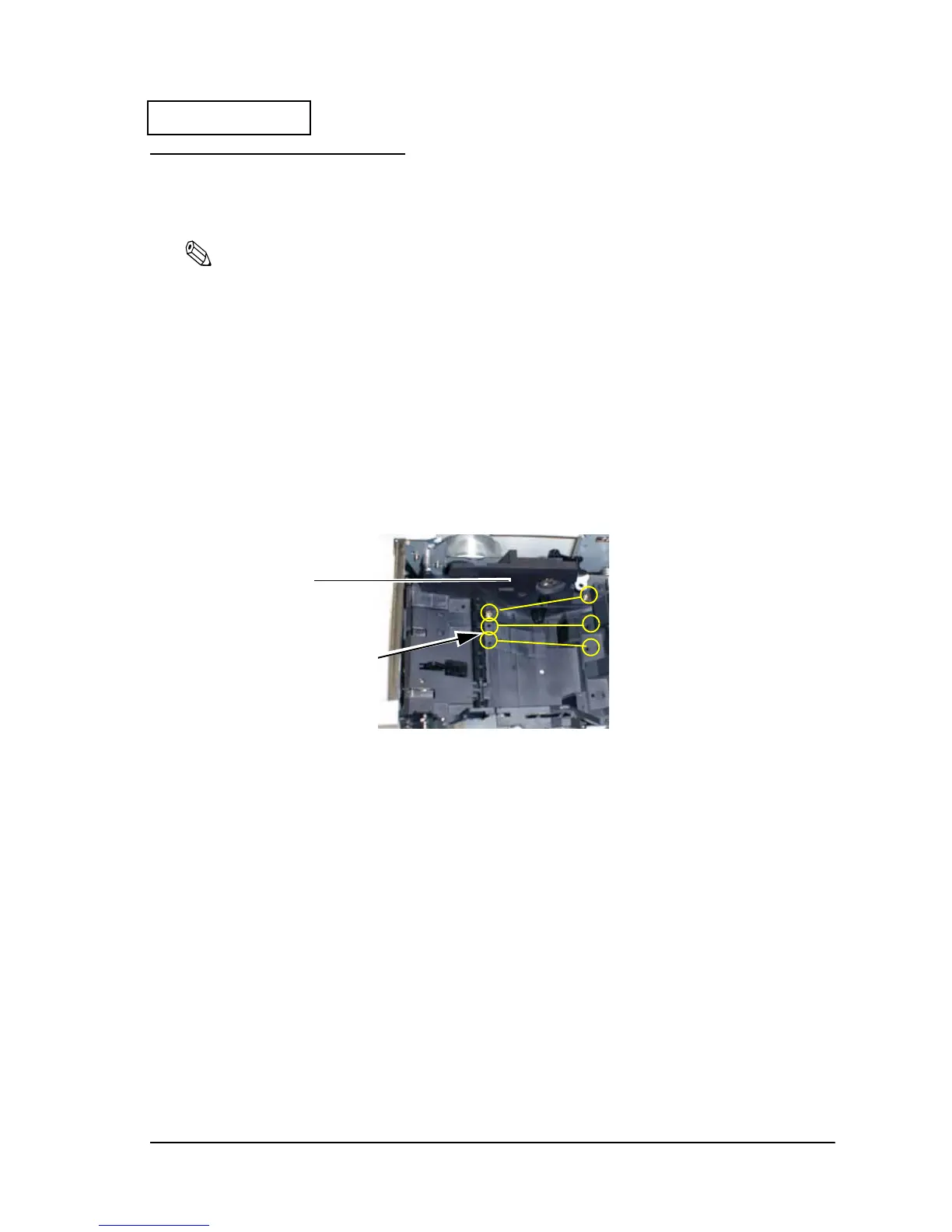

2. To set the each roll paper width, position the spacer as shown in the illustration below.
3. Position the roll paper spacer for the appropriate paper width. (See figure above.)
4. Tighten the spacer with 2 screws included with the spacer. (See figure above.)
B
C
A
Roll paper spacer
Positions for attaching the
screw (on the left side)
A: paper width = 76 m m
B: paper width = 69.5 mm
C: paper width = 57.5mm

Epson TM-U220 Series Specifications

General

Print Method	9-pin, serial impact dot matrix
Autocutter	Partial cut
Weight	Approx. 2.5 kg
Paper Thickness	0.06 to 0.085 mm
Operating Temperature	5 to 45 °C
Interface	RS-232, Bi-directional parallel, USB, Ethernet
Number of Columns	42 columns
Data Buffer	4 KB
Character Set	95 Alphanumeric, 128 x 12 Graphic
Power Supply	AC adapter
Operating Humidity	10% to 80% RH (non-condensing)
Print Speed	4.7 lines per second (at 40 columns, 16 dpi)
Paper Width	76 mm / 69.5 mm / 57.5 mm ± 0.5 mm
Copy Capability	Original + 2 copies
