Epson TM-U220 Series Service Manual

5-4 Adjustment and Setting Rev. B
Confidential
Setting the Autocutter
The TM-U220 autocutter can be set to either “partial cut“ or “full cut“ using the steps below.
Note:
Do not change the cutting type from partial cut to full cut after the printer has been used. Otherwise, the
printer may not be reliable, because the wear-out level of the cutter blade differs.
1. Make sure the power supply is disconnected.
2. Open the roll paper cover, and remove it. (See page 4-16.)
3. Loosen the screw as indicated in following figure.
4. Lift the top of the cutter unit upward towards you, and remove from the dowel.
5. When you select partial cut (default), you have to adjust the dowel to the right, as
shown. When you select full cut, you have to adjust the dowel to left, as shown.
6. Tighten the 2 screws. Attach the roll paper cover again, and install the shaft that was
taken out in step 2.
Note:
❏
Run the self-test to confirm the cutter action. (See page 2-2.)

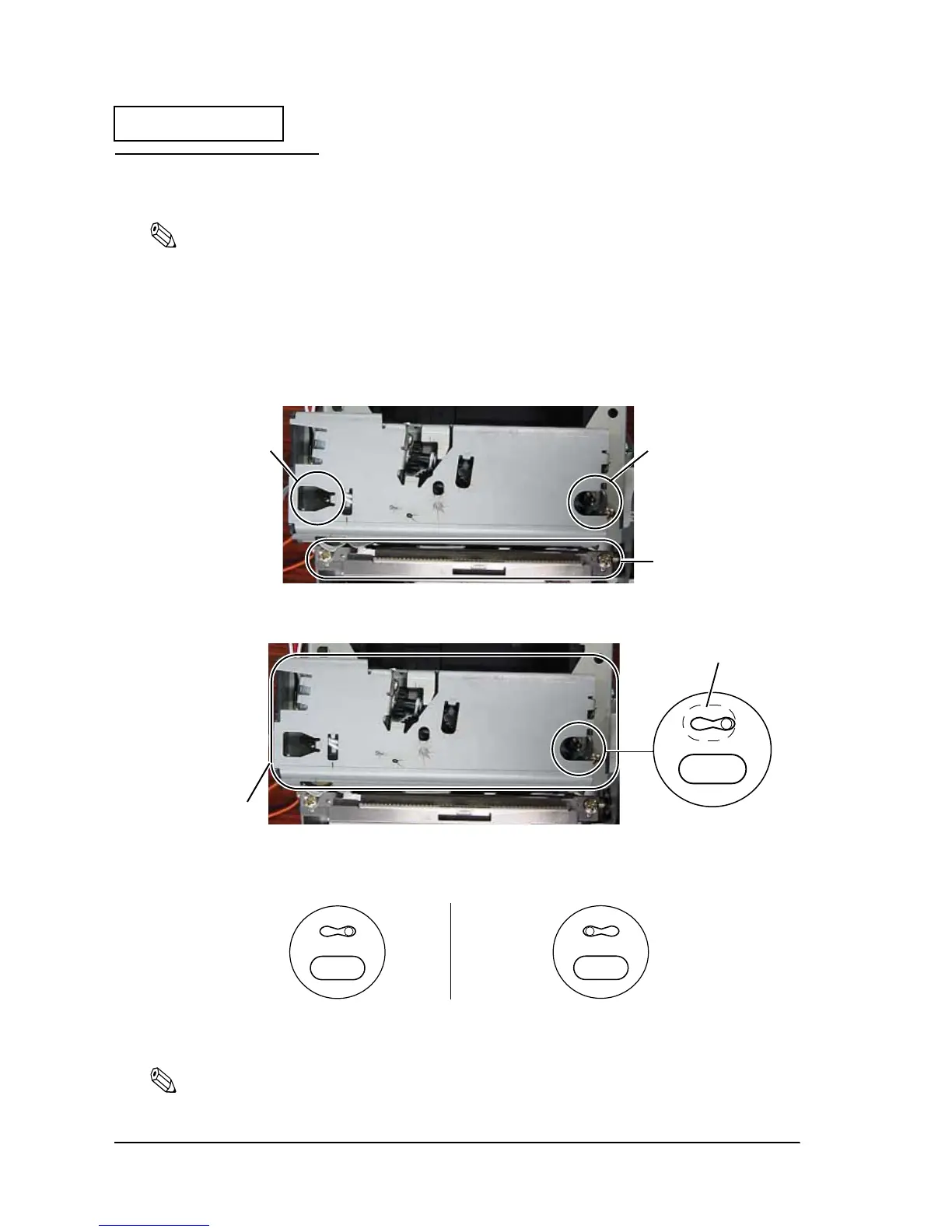

Loosen the screw
Remove the screw
Emergency cutter
dowel
Cutter unit
Partial cut
Full cut

Epson TM-U220 Series Specifications

General

Print Method	9-pin, serial impact dot matrix
Autocutter	Partial cut
Weight	Approx. 2.5 kg
Paper Thickness	0.06 to 0.085 mm
Operating Temperature	5 to 45 °C
Interface	RS-232, Bi-directional parallel, USB, Ethernet
Number of Columns	42 columns
Data Buffer	4 KB
Character Set	95 Alphanumeric, 128 x 12 Graphic
Power Supply	AC adapter
Operating Humidity	10% to 80% RH (non-condensing)
Print Speed	4.7 lines per second (at 40 columns, 16 dpi)
Paper Width	76 mm / 69.5 mm / 57.5 mm ± 0.5 mm
Copy Capability	Original + 2 copies
