Epson TM-U220 Series Service Manual

4-26 Disassembly and Assembly Rev. B
Confidential

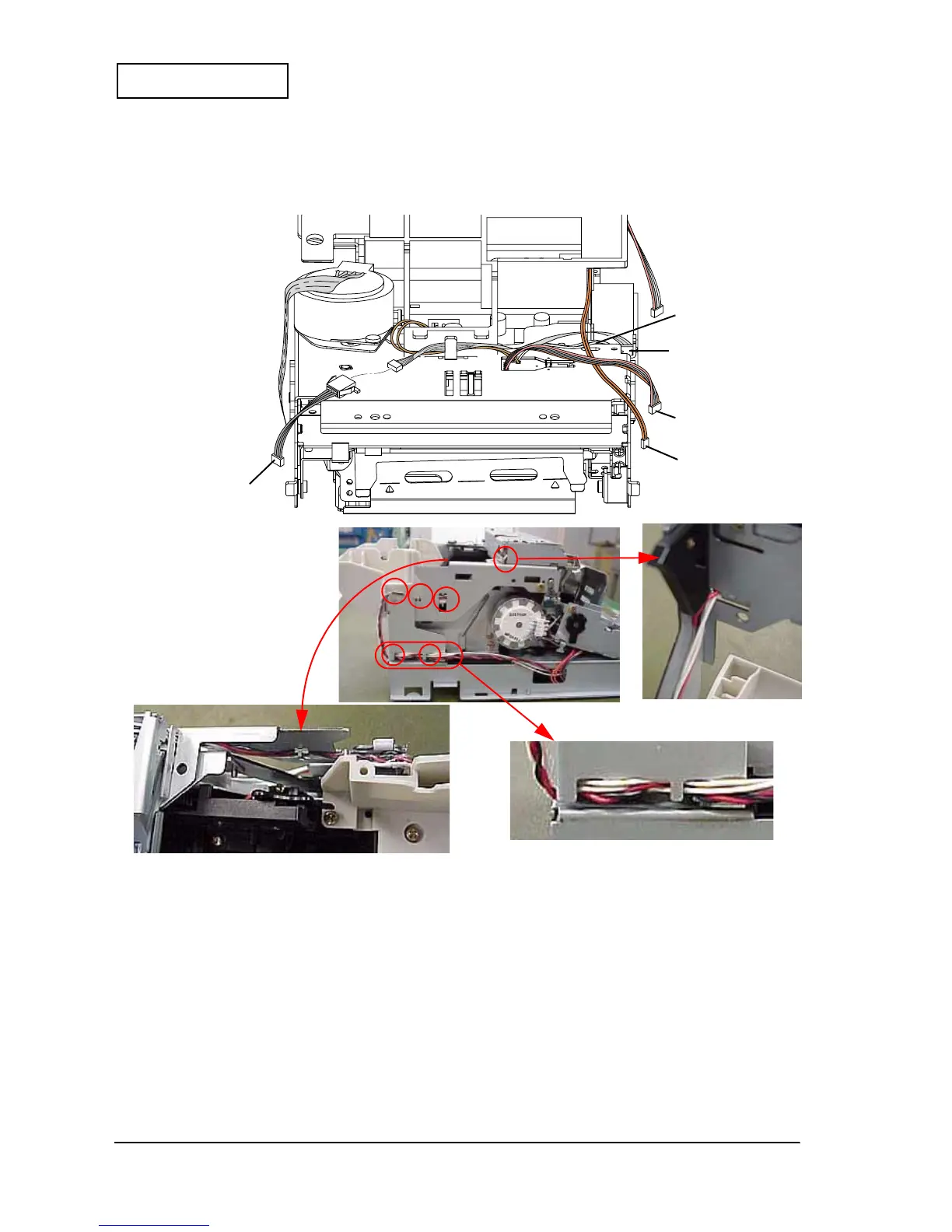

Wiring Placement for Each Cable
The illustration below indicates paths for the cable wiring.
Wires in the PF lead
wire set (1047)
Cover open
assembly wires (515)
Wires in the NE lead
wire set (1096)
HP board assembly
wires (518)
Paper feed motor sub
assembly wires (1046)

Epson TM-U220 Series Specifications

General

Print Method	9-pin, serial impact dot matrix
Autocutter	Partial cut
Weight	Approx. 2.5 kg
Paper Thickness	0.06 to 0.085 mm
Operating Temperature	5 to 45 °C
Interface	RS-232, Bi-directional parallel, USB, Ethernet
Number of Columns	42 columns
Data Buffer	4 KB
Character Set	95 Alphanumeric, 128 x 12 Graphic
Power Supply	AC adapter
Operating Humidity	10% to 80% RH (non-condensing)
Print Speed	4.7 lines per second (at 40 columns, 16 dpi)
Paper Width	76 mm / 69.5 mm / 57.5 mm ± 0.5 mm
Copy Capability	Original + 2 copies
