Epson TM-U950 User Manual

Setting Up the Printer 1-17

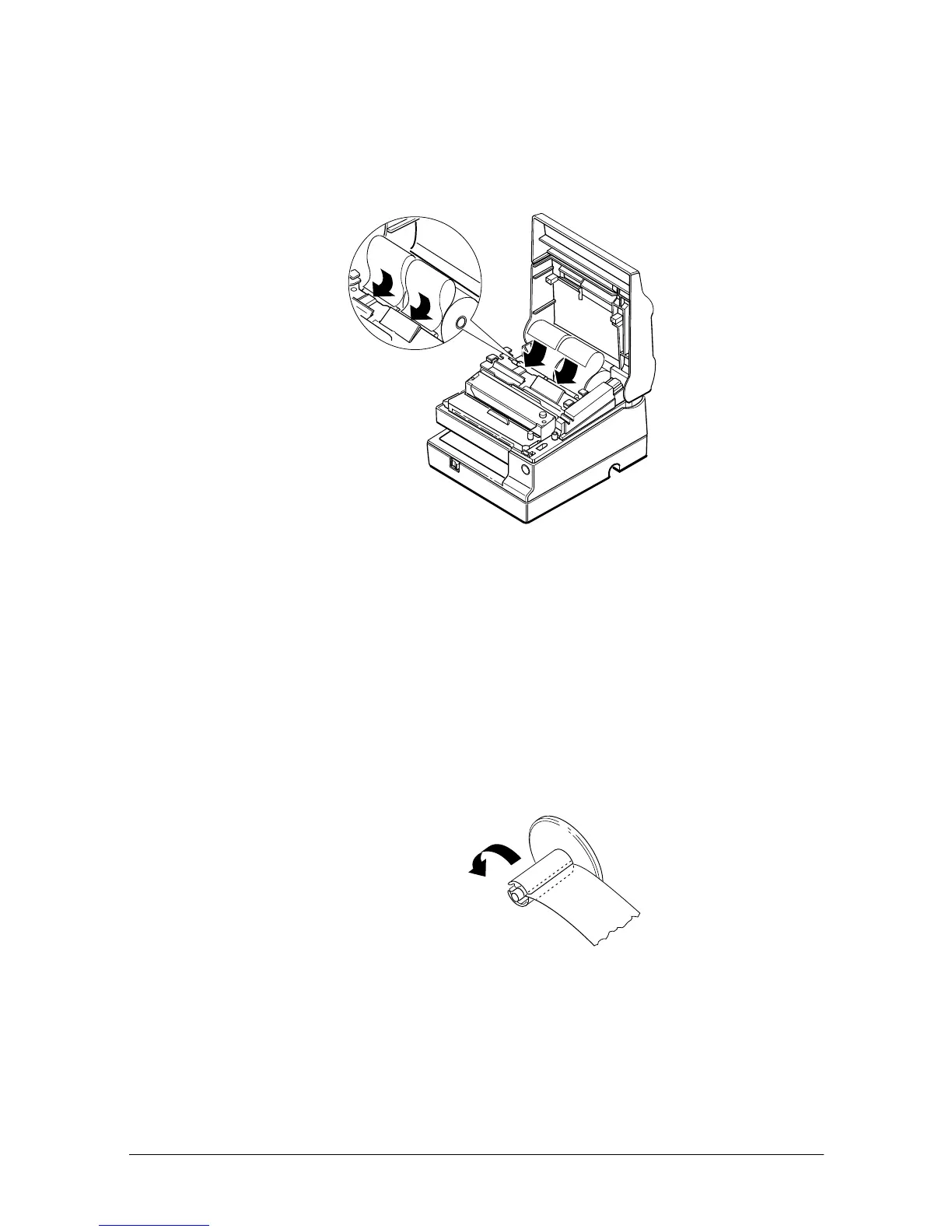

4. For each roll, insert the tip of the paper into the paper inlet and
push it in until it is automatically detected and fed into the
printer.
5. Tear off the receipt paper on the cutter. If the paper was not fed
far enough, press the
RECEIPT FEED
button to feed additional
paper.
6. Insert the tip of the journal paper into the groove on the take-
up spool and rotate the spool two or three times to secure the
paper. If the paper was not fed far enough, press the
JOURNAL/SLIP FEED
button to feed some additional paper.
7. Install the take-up spool and close the printer cover.
2
2 or 3 times

Epson TM-U950 Specifications

General

Print speed	18.6 ips
Character size	1.3 x 3.1 mm
Print technology	Dot matrix
Paper dimensions	210 x 297 mm
Dimensions (WxDxH)	251 x 298 x 194.5 mm
Electromagnetic compatibility	VCCI, FCC, CE
Safety	UL, CSA
Country of origin	China
Mean time between failures (MTBF)	180000 h
Serial interface	Yes
Standard interfaces	RS-232C
Weight (imperial)	12.3 lbs
Pallet width	1200 mm
Pallet height	1000 mm
Pallet length (UK)	2250 mm
Quantity per pallet	24 pc(s)
Quantity per pallet (UK)	36 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	84433210
Quantity per pallet layer (UK)	6 pc(s)
Package depth	425 mm
Package width	360 mm
Package height	330 mm
Package weight	7196 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	298 mm
Width	186 mm
Height	195 mm
