WorkForce 1100/Epson Stylus Office T1110/B1100/T1100/Epson ME Office 1100 Revision C
Disassembly And Assembly Disassembling the Printer Mechanism 103
Confidential
4.4.9 Front Paper Guide Pad
1. Remove the Printer Mechanism. (Refer to 4.4.4 Lower Housing / Printer
Mechanism (p.86).)
2. Remove the Front Paper Guide Pads from the Front Paper Guide with tweezers.

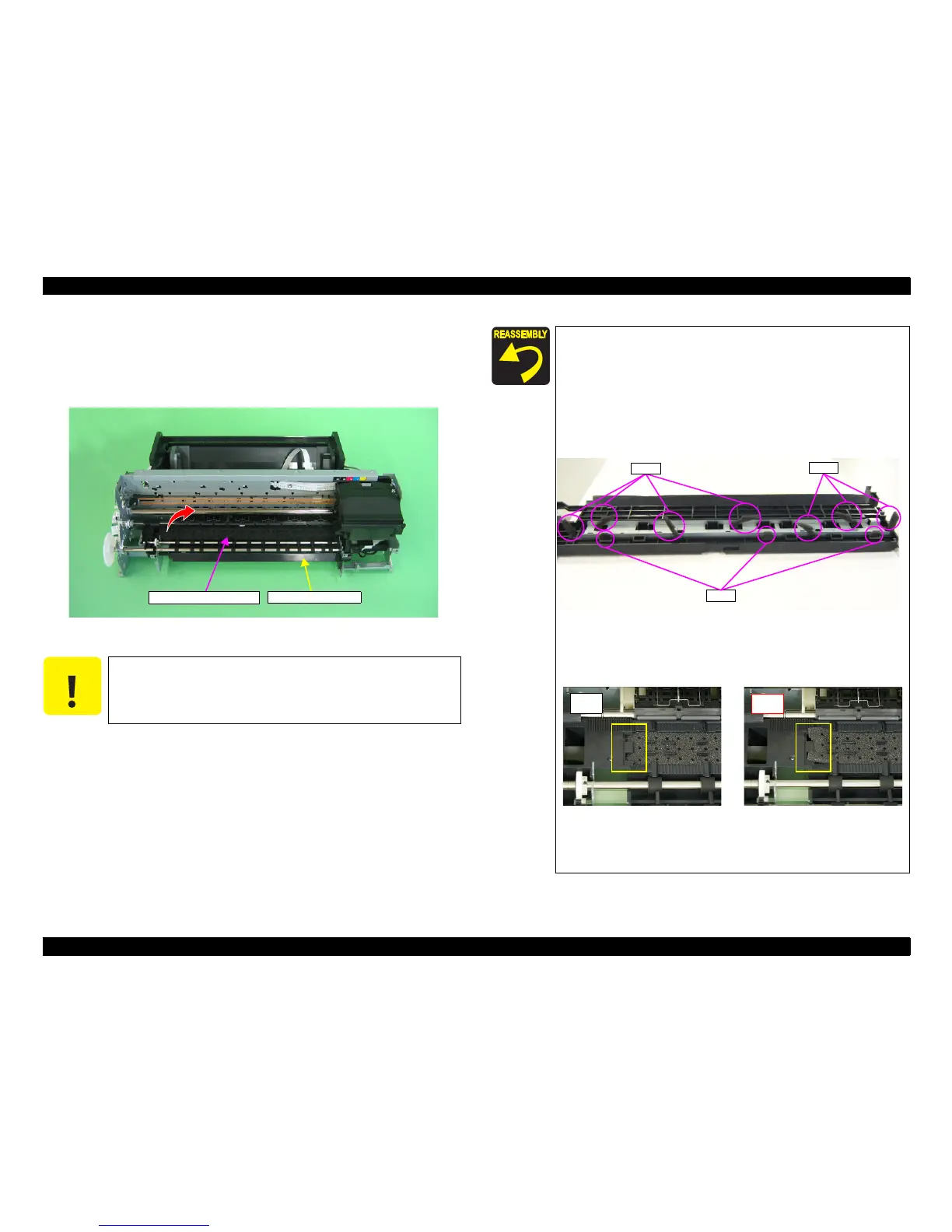

Figure 4-98. Removing the Front Paper Guide Pad
C A U T I O N
Take care to prevent the grease contained on the Front Paper
Guide Pads from sticking to other parts.
Front Paper Guide
Front Paper Guide Pad
After installing the Front Paper Guide Pads, lift the Printer
Mechanism, and check the following points.
1. Make sure that the tabs on the Pads are not cut midway.
2. Make sure that all tabs are in place on the Front Paper Guide,
and that they are facing down (towards the Waste Ink Pads)
without any folds.
3. Make sure that the tab foldbacks are protruding completely
from the Front Paper Guide.
Figure 4-99. Reinstalling the Front Paper Guide Pad (1)
4. Make sure that the pad is placed under a tab of the Front Paper
Guide.
Figure 4-100. Reinstalling the Front Paper Guide Pad (2)
5. Make sure that all the tabs on the pads are fitted into the
securing section under the Front Paper Guide.
Tabs
Tabs
Tabs
OK
NG
