2.3 Printhead Specifications
The Printhead of this product is a F-Mach head.
The following shows the arrangement of the nozzles and the color arrangement of each
nozzle line when viewed the Print Head from behind.

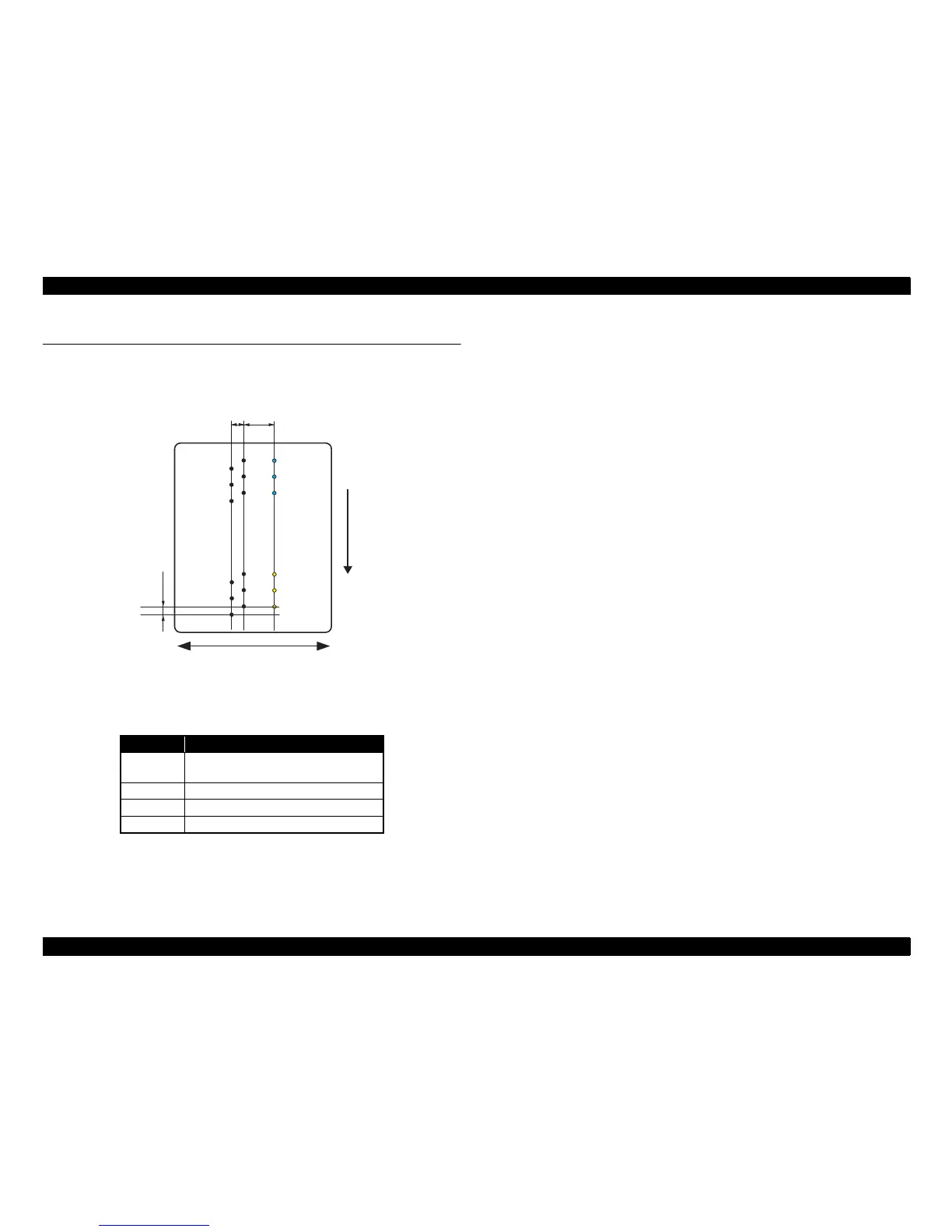

Figure 2-2. Nozzle Arrangement
Note "*": #1,#61 and #121 nozzles of C column are used only for flushing, and are not used for
printing.
Table 2-2. Nozzle Lines and the Corresponding Ink Color
Ink Line
Black
A column: #1 to #180
B column: #1 to #180
Yellow C column*: #1 to C#60
Magenta C column*: #61 to C#120
Cyan C column*: #121 to C#180
2.258
(64/720inch)
C column
C#3
C#2
C#1
5.644
(160/720inch)
0.071
(1/360inch)
Carriage movement direction
Paper feed direction
C#180
C#179
C#178
B#3
B#2
B#1
B#180
B#179
B#178
A#3
A#2
A#1
A#180
A#179
A#178
B column
A column
