Epson WorkForce 1100 User Manual

WorkForce 1100/Epson Stylus Office T1110/B1100/T1100/Epson ME Office 1100 Revision C
Disassembly And Assembly Removing the Motors 123
Confidential

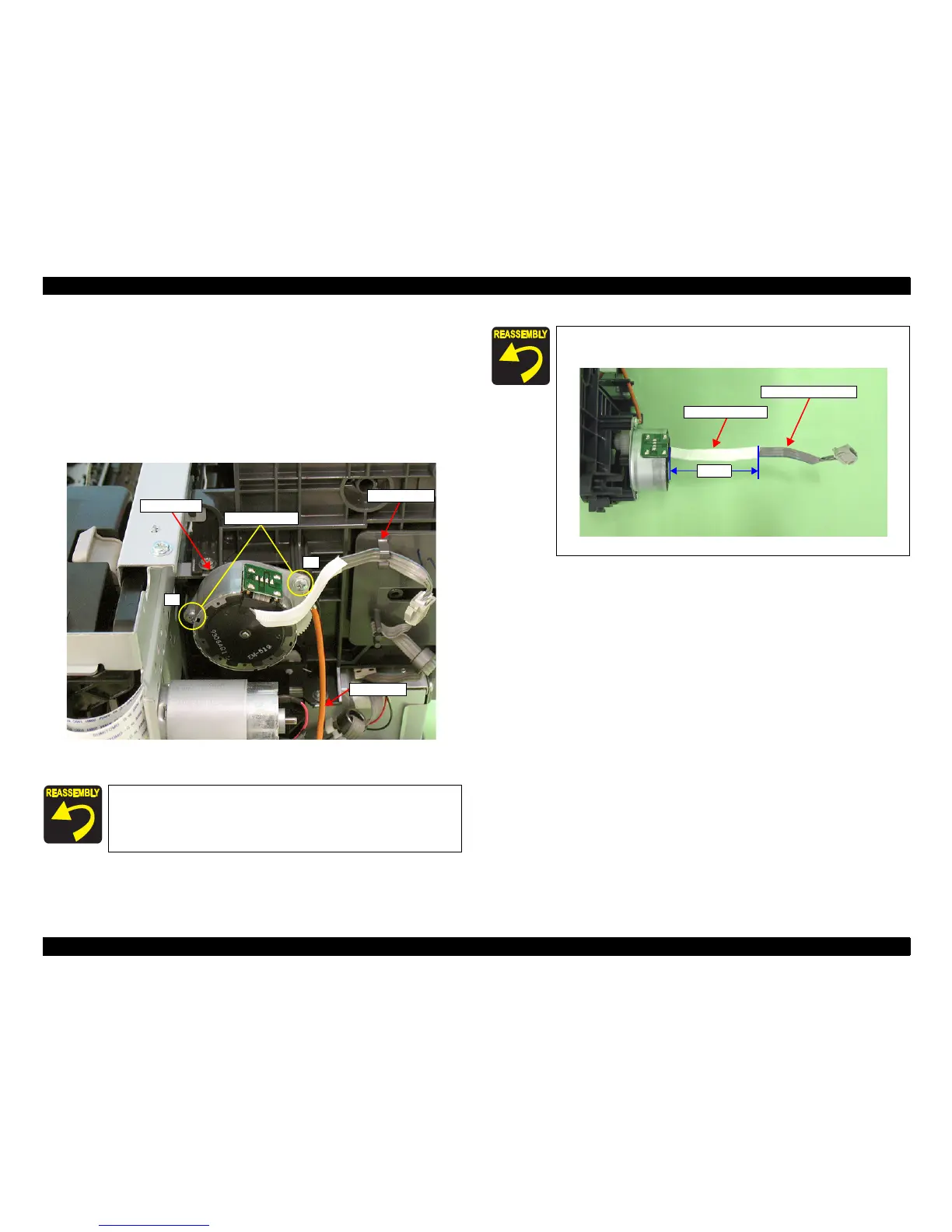

4.5.3 ASF Motor
1. Remove the Upper Housing / Printer Cover. (p.72)
2. Remove the Earth cable. (refer to 4.4.6 ASF Assy Step2 (p96) .)
3. Release the ASF Motor cable from the cable hook and disconnect the relay
connector.
4. Remove the two C.B.P. M3 x 8 screws that secure the ASF Motor and remove the
ASF Motor.
Figure 4-154. Removing the ASF Motor
 Secure the grounding wire and the ASF Motor together with
the screw in the middle of the printer.
 Tighten the screws in the order shown in Figure 4-154
Cable Hook
ASF Motor
4) C.B.P. M3x8
1
2
Earth cable
 Attach a piece of acetate tape (60 mm) on the ASF Motor Cable
as shown below.
Figure 4-155. Attaching acetate tape
ASF Motor Cable
Acetate tape
60mm
