Epson WorkForce 1100 User Manual

WorkForce 1100/Epson Stylus Office T1110/B1100/T1100/Epson ME Office 1100 Revision C
Disassembly And Assembly Disassembling the Printer Mechanism 99
Confidential

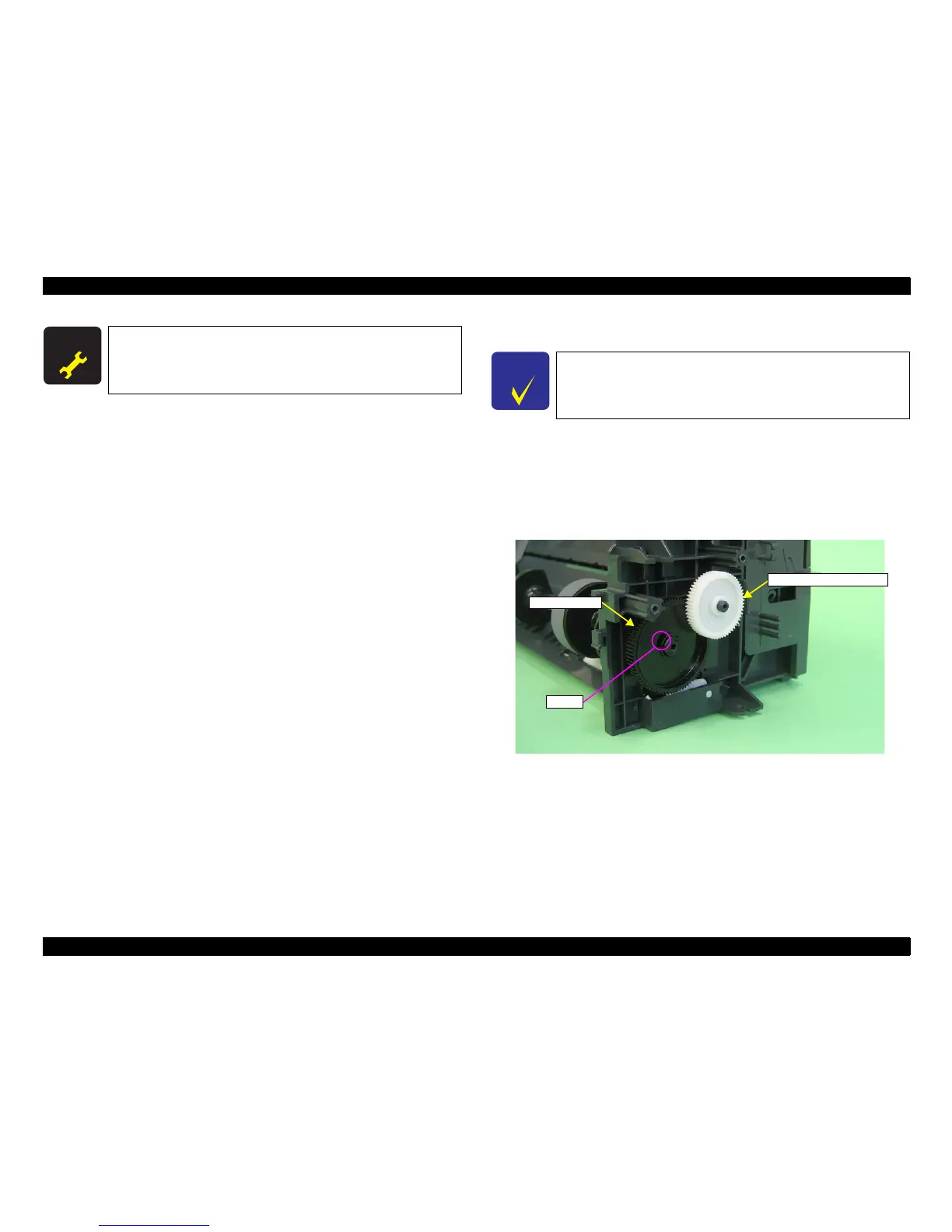

4.4.7 LD Roller
1. Remove the ASF Assy. (p.96)
2. Remove the ASF Motor. (p.123)
3. Remove the Combination Gear 29,11 from the ASF Assy.
4. Release the tab that secure the LD Spur Gear, and remove the LD Spur Gear from
the LD Roller Shaft.
Figure 4-88. Removing the LD Roller (1)
A D J U S T M E N T
R E Q U I R E D
After replacing or removing the ASF Assy, always make the required
adjustments referring to the following.
 “Chapter 5 Adjustment (p.128)”
C H E C K
P O I N T
When replacing the LD Roller, replace the Retard Roller Assy
together with the LD Roller. (Refer to 4.4.8 Retard Roller Assy
(p.101).)
Combination Gear 29.11
LD Spur Gear
Tab

Epson WorkForce 1100 Specifications

General

Color	Yes
Duplex printing	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	5
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Printing noise level	35 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Paper tray media types	Bond paper, Envelopes, Glossy paper, Photo paper, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A6
Borderless printing media sizes	4x6, 5x7, A4, Letter
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Bundled software	Web to Page and Epson Easy Photo Print
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.3 W
Power consumption (printing)	26 W
Certification	UL60950, CSA C22.2 No. 60950, EMI FCC Part 15 subpart B B, CAN / CSA – CEI / IEC CISPR 22 B
Market positioning	Business
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows 7, Windows Vista, Windows XP, Windows XP Professional x64, Windows 2000 Mac OS X 10.3.9, 10.4.11, 10.5.x and 10.6.x.
Print technology	Inkjet

Weight and Dimensions

Depth	797.6 mm
Width	617.2 mm
Height	416.6 mm
