Epson WorkForce 1100 User Manual

WorkForce 1100/Epson Stylus Office T1110/B1100/T1100/Epson ME Office 1100 Revision C
Adjustment Adjustment without Using Adjustment Program 150
Confidential
5.3.5 ASF Guide Roller LDs Position Adjustment
When installing the Guide Roller LDs, the position of the Guide Roller LDs must be
adjusted so that the positions of the LD Roller Shaft and Retard Roller are optimized in
order to maintain the paper feed accuracy.
5.3.5.1 Adjusting the Position of the ASF Guide Roller LDs
1. After installing the ?4.4.6 ASF Assy? (p96), loosen the two C.B.S. M3x6 screws
that secure the Guide Roller LD.

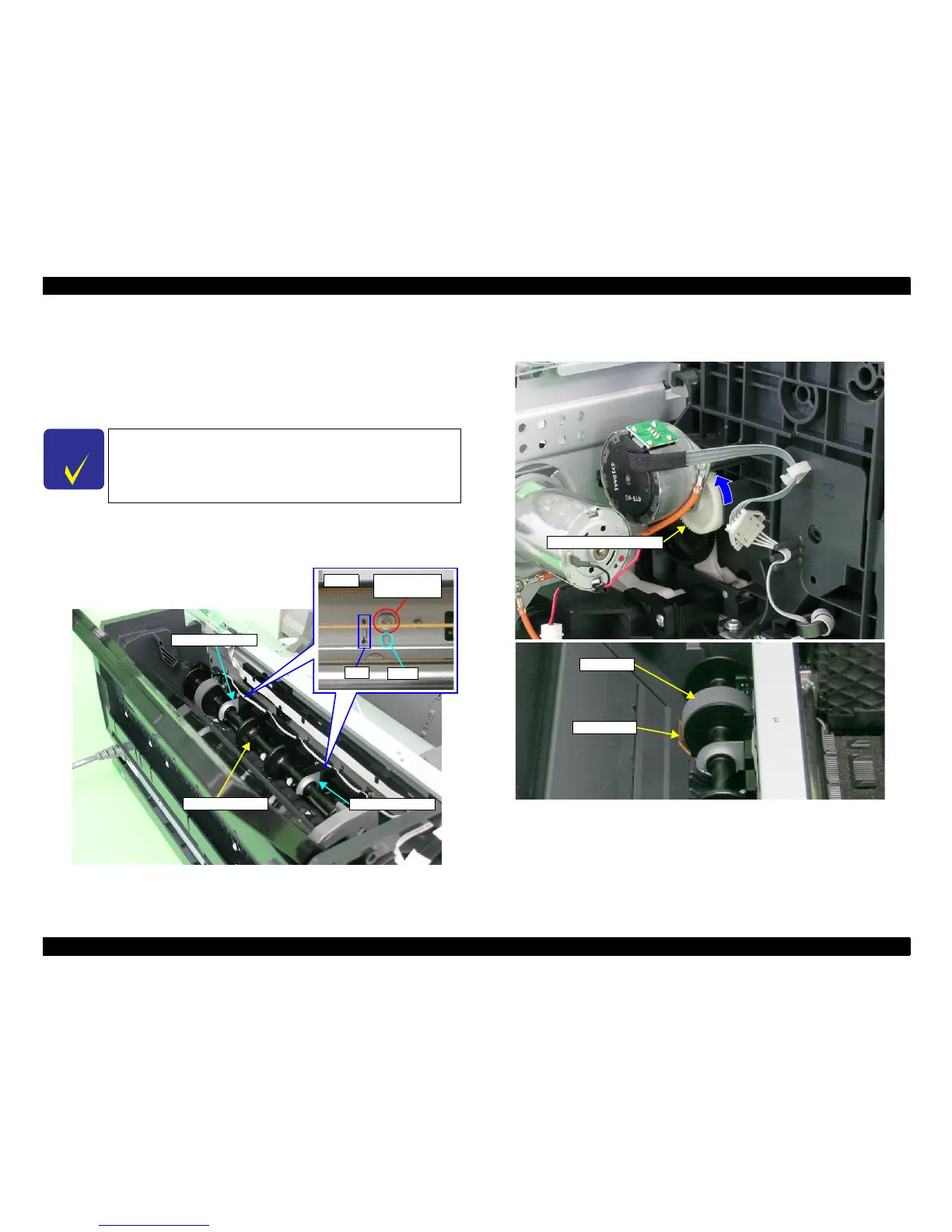

Figure 5-26. Guide Roller LD
2. Turn Combination Gear 29.11 on the right side of the ASF Assy CCW to raise the
Hopper to the upper limit position (until the Hopper Pad contacts the LD Roller).
Figure 5-27. Raising the Hopper
C H E C K
P O I N T
When only removing the ASF Assy, you do not need to perform this
adjustment. In that case, mark the installing positions of the Guide
Roller LDs before removing them, and make sure to align the
markings when installing the Guide Roller LDs. (Refer to 4.4.6 ASF
Assy (p96).)
Front
17) C.B. M3x6
(8±1 kgf.cm)
Dowel
Rib
LD Roller Shaft
Guide Roller LD
Guide Roller LD
Combination Gear 29.11
Hopper Pad
LD Roller

Epson WorkForce 1100 Specifications

General

Color	Yes
Duplex printing	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	5
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Printing noise level	35 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Paper tray media types	Bond paper, Envelopes, Glossy paper, Photo paper, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A6
Borderless printing media sizes	4x6, 5x7, A4, Letter
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Bundled software	Web to Page and Epson Easy Photo Print
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.3 W
Power consumption (printing)	26 W
Certification	UL60950, CSA C22.2 No. 60950, EMI FCC Part 15 subpart B B, CAN / CSA – CEI / IEC CISPR 22 B
Market positioning	Business
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows 7, Windows Vista, Windows XP, Windows XP Professional x64, Windows 2000 Mac OS X 10.3.9, 10.4.11, 10.5.x and 10.6.x.
Print technology	Inkjet

Weight and Dimensions

Depth	797.6 mm
Width	617.2 mm
Height	416.6 mm
