Epson WorkForce 1100 User Manual

WorkForce 1100/Epson Stylus Office T1110/B1100/T1100/Epson ME Office 1100 Revision C
Adjustment Adjustment Using Adjustment Program 140
Confidential

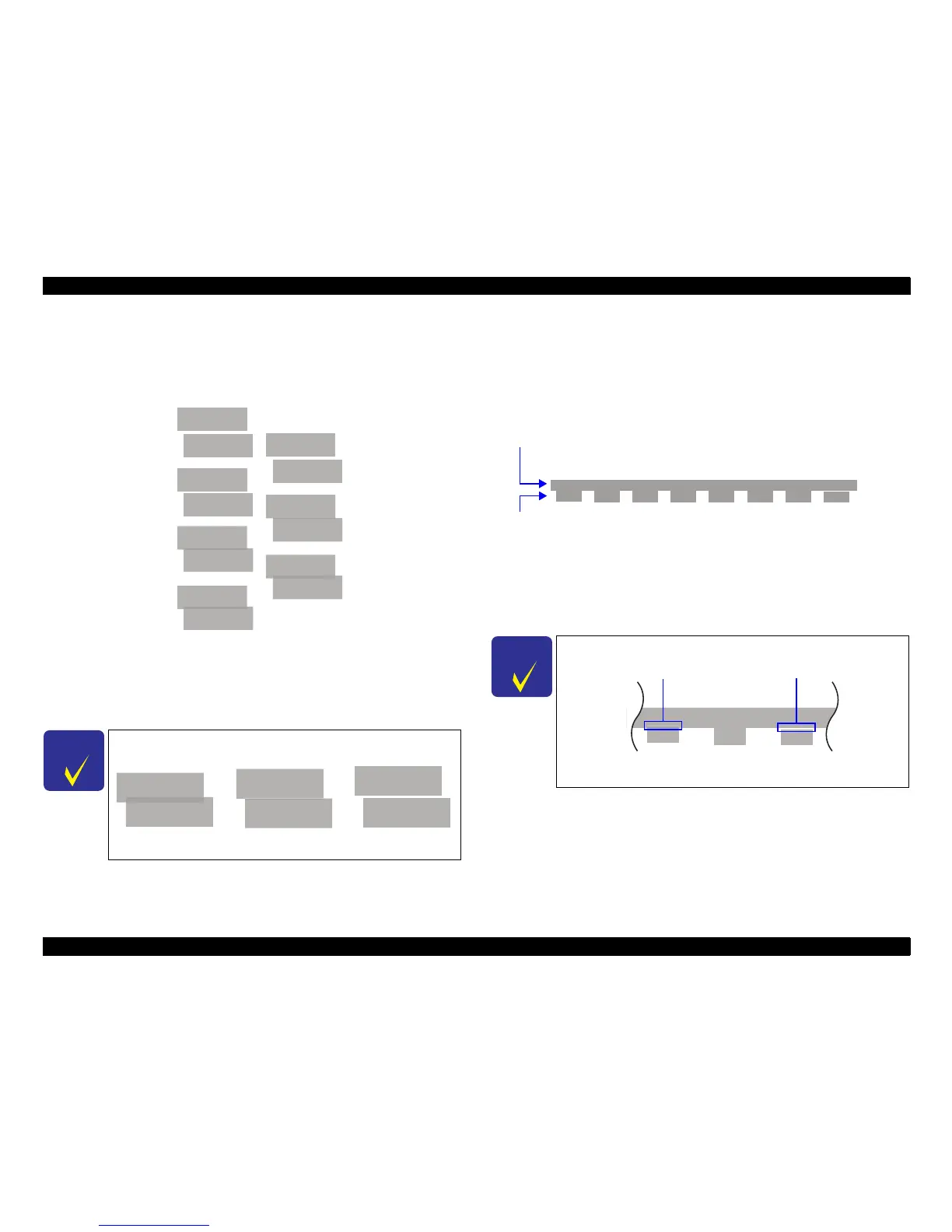

5.2.5 PF adjustment
 PF- for standard print area
The following pattern is printed.
Figure 5-5. PF (standard print area) Adjustment Printout Pattern
How to Judge
Examine the printout patterns, and enter the value for the pattern with no overlap and
gap between the upper and lower ones.
 PF- for bottom margin area
The following pattern is printed.
How to Judge
Examine the printout patterns, and enter the value for the pattern with no overlap and
gap between the upper and lower ones.
Figure 5-6. PF (bottom margin area) Adjustment Printout Pattern
Additional information
When overlap and gap are observed in the all patterns, enter the value for the best one,
and print the adjustment pattern again.
C H E C K
P O I N T
Example for judgement
1
-1
-3
-5
0
-2
-4
OK NGNG
C H E C K
P O I N T
Example for judgement
23456781
Upper pattern
Lower pattern
OK NGNG
Overlap
Gap

Epson WorkForce 1100 Specifications

General

Color	Yes
Duplex printing	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	5
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Printing noise level	35 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Paper tray media types	Bond paper, Envelopes, Glossy paper, Photo paper, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A6
Borderless printing media sizes	4x6, 5x7, A4, Letter
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Bundled software	Web to Page and Epson Easy Photo Print
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.3 W
Power consumption (printing)	26 W
Certification	UL60950, CSA C22.2 No. 60950, EMI FCC Part 15 subpart B B, CAN / CSA – CEI / IEC CISPR 22 B
Market positioning	Business
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows 7, Windows Vista, Windows XP, Windows XP Professional x64, Windows 2000 Mac OS X 10.3.9, 10.4.11, 10.5.x and 10.6.x.
Print technology	Inkjet

Weight and Dimensions

Depth	797.6 mm
Width	617.2 mm
Height	416.6 mm
