Epson WorkForce 1100 User Manual

WorkForce 1100/Epson Stylus Office T1110/B1100/T1100/Epson ME Office 1100 Revision C
Operating Principles Motors & Sensors 25
Confidential
2.5 Motors & Sensors
 Motors
 Sensors

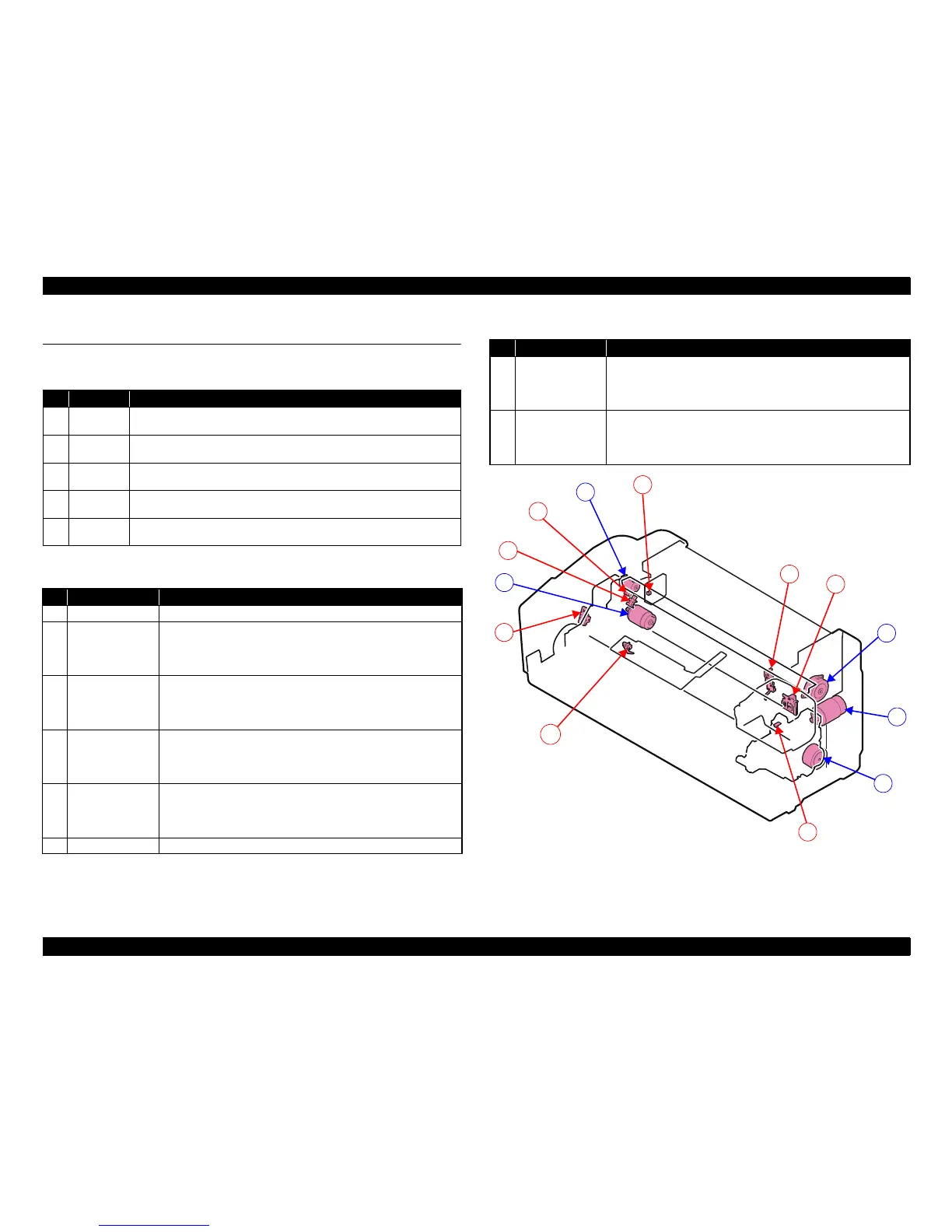

Figure 2-3. Motors and Sensors Layout
Table 2-4. List of Motors
Fig. Name Specific
A PF Motor
Type: DC Motor Drive voltage: 42 V DC ± 5%
Armature resistance: 12.2  ± 10%
B APG Motor
Type: DC Motor Drive voltage: 42 V DC ± 5%
Armature resistance: 64.7  ± 15%
C ASF Motor
Type: 4-phase 48-pole PM type stepping motor Drive voltage: 42 V DC ± 5%
Winding resistance: 7.0  ± 10% (per phase at 25°C)
D CR Motor
Type: DC Motor Drive voltage: 42 V DC ± 5%
Armature resistance: 23.6  ± 10%
EPump Motor
Type: 4-phase 48-pole PM type stepping motor Drive voltage: 42 V DC ± 5%
Winding resistance: 10.3  ± 10% (per phase at 25°C)
Table 2-5. List of Sensors
Fig. Name Specific
1 PF Encoder sensor Type: Rotary Encoder Drive voltage: 3.3 V DC ± 5%
2 APG Sensor (1)
Type: Transmissive photo interrupter Drive voltage: 3.3 V DC ± 5%
Sensor output:
• High: In the domain of each PG position
• Low: Between PG positions
3 APG Sensor (2)
Type: Transmissive photo interrupter Drive voltage: 3.3 V DC
± 5%
Sensor output:
• High: In the domain of large PG
• Low: In the domain of small PG
4 ASF Sensor
Type: Transmissive photo interrupter Drive voltage: 3.3 V DC
± 5%
Sensor output:
• High: Home position
• Low: Other than home position
5PE Sensor
Type: Transmissive photo interrupter Drive voltage: 3.3 V DC
± 5%
Sensor output:
• High (2.4 V or more): No paper
• Low (0.4 V or less): Paper exists
6 CR Encoder sensor Type: Linear Encoder Drive voltage: 3.3 V DC
± 5%
7PW Sensor
Type: Reflective photo interrupter Drive voltage: 3.3 V DC ± 5%
Sensor output:
• High: No paper
• Low: Paper exists
8
Cover Open
Sensor
Type: Mechanical contact Drive voltage: 3.3 V DC ± 5%
Sensor output:
• High: Cover closed
• Low: Cover open
Table 2-5. List of Sensors
Fig. Name Specific
1
2
3
4
6
E
D
C
A
8
B
5
7

Epson WorkForce 1100 Specifications

General

Color	Yes
Duplex printing	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	5
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Printing noise level	35 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Total number of input trays	1
Envelopes sizes	10, C6, DL
Paper tray media types	Bond paper, Envelopes, Glossy paper, Photo paper, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A6
Borderless printing media sizes	4x6, 5x7, A4, Letter
Maximum ISO A-series paper size	A3
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Bundled software	Web to Page and Epson Easy Photo Print
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.3 W
Power consumption (printing)	26 W
Certification	UL60950, CSA C22.2 No. 60950, EMI FCC Part 15 subpart B B, CAN / CSA – CEI / IEC CISPR 22 B
Market positioning	Business
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows 7, Windows Vista, Windows XP, Windows XP Professional x64, Windows 2000 Mac OS X 10.3.9, 10.4.11, 10.5.x and 10.6.x.
Print technology	Inkjet

Weight and Dimensions

Depth	797.6 mm
Width	617.2 mm
Height	416.6 mm
