WorkForce 1100/Epson Stylus Office T1110/B1100/T1100/Epson ME Office 1100 Revision C

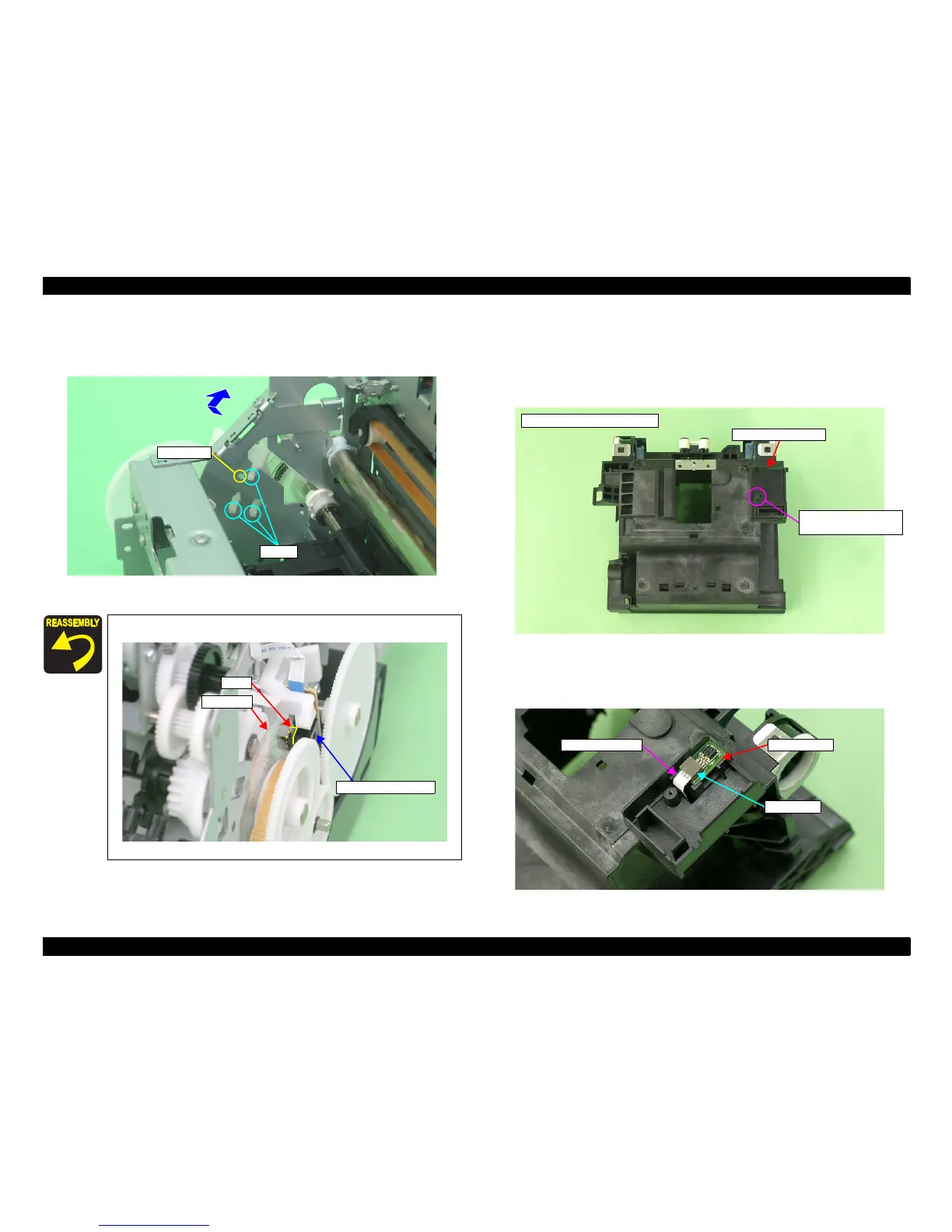

Disassembly And Assembly Removing the Sensors 125
Confidential
4. While pressing the guide pin on the PF Encoder Sensor Holder using tweezers,
slide the holder upwards to release the three tabs, and remove the PF Encoder
Sensor Holder.
Figure 4-158. Removing the PF Encoder Sensor Holder
4.6.3 PW Sensor
1. Remove the Carriage Shaft / Carriage Unit. (p.88)
2. Remove the C.P.B. (P1) M1.7 x 5 screw that secures the PW Sensor Holder, and
remove the PW Sensor Holder from the Carriage Unit.
Figure 4-160. Removing the PW Sensor Holder
3. Disconnect the PW Sensor FFC from the PW Sensor connector, and remove the
PW Sensor.
Figure 4-161. Removing the PW Sensor
Make sure that the PF Scale is in the slit on the PF Encoder Sensor.
Figure 4-159. Reinstalling the PF Encoder Sensor Holder
Guide pin
Tabs
PF Encoder Sensor
PF Scale
Slit
PW Sensor Holder
12) C.P.B. (P1) M1.7x5
(0.8±0.2 kgf.cm)
Carriage Unit Bottom Side
PW Sensor
Connector
PW Sensor FFC
