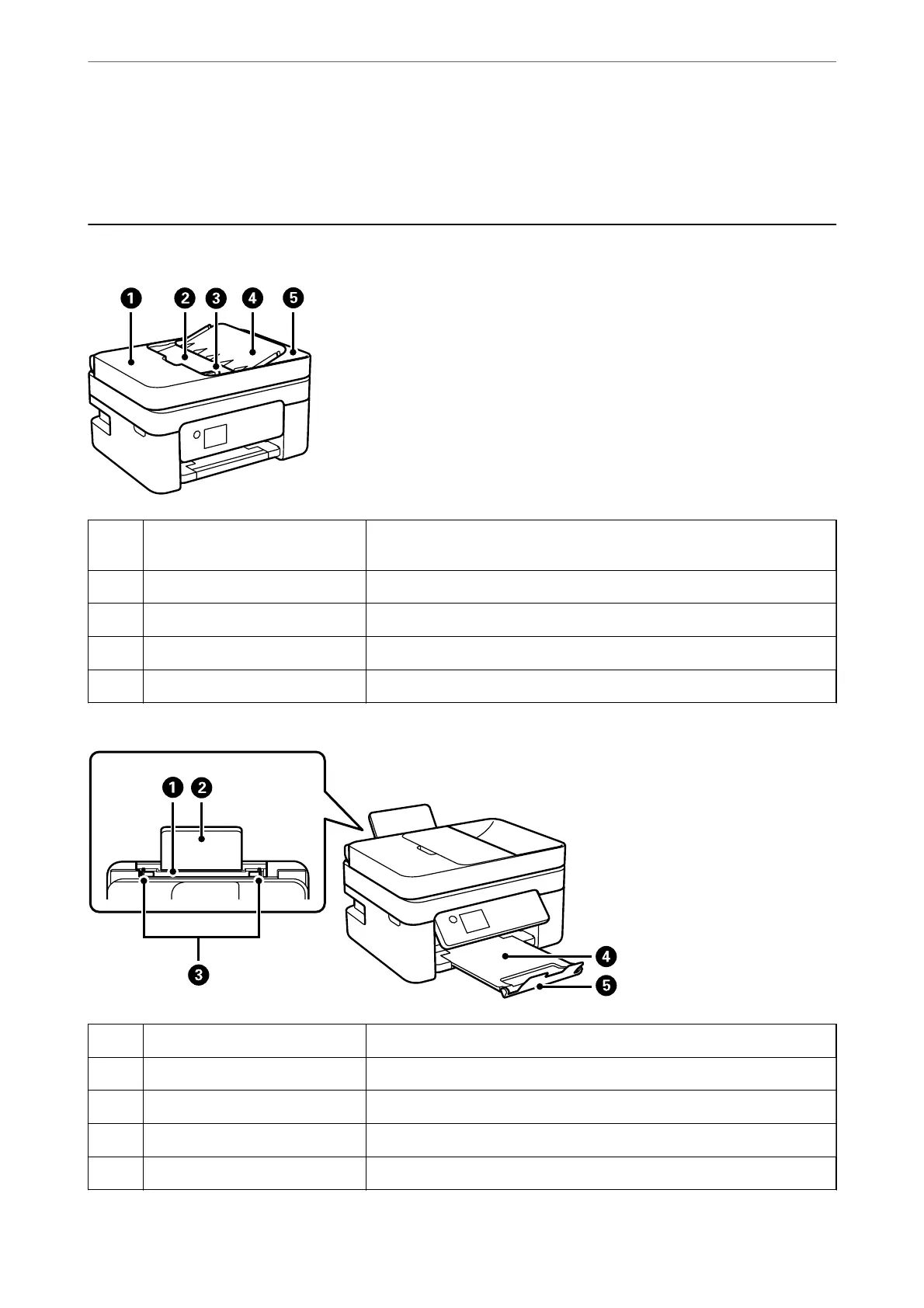

Part Names and Functions
A
ADF (Automatic Document
Feeder) cover
Open when removing jammed originals in the ADF.
B
ADF input tray Feeds originals automatically.
C
ADF edge guide Feeds originals straight into the printer. Slide to the edge of the originals.
D
ADF document support Supports originals.
E
ADF output tray Holds originals ejected from the ADF.
A
Rear paper feed Loads paper.
B
Paper support Supports loaded paper.
C
Edge guide Feeds the paper straight into the printer. Slide to the edges of the paper.
D
Output tray Holds the ejected paper.
E
Stopper Prevents printouts from falling from the output tray.
