Removing Jammed Paper from Rear Cover

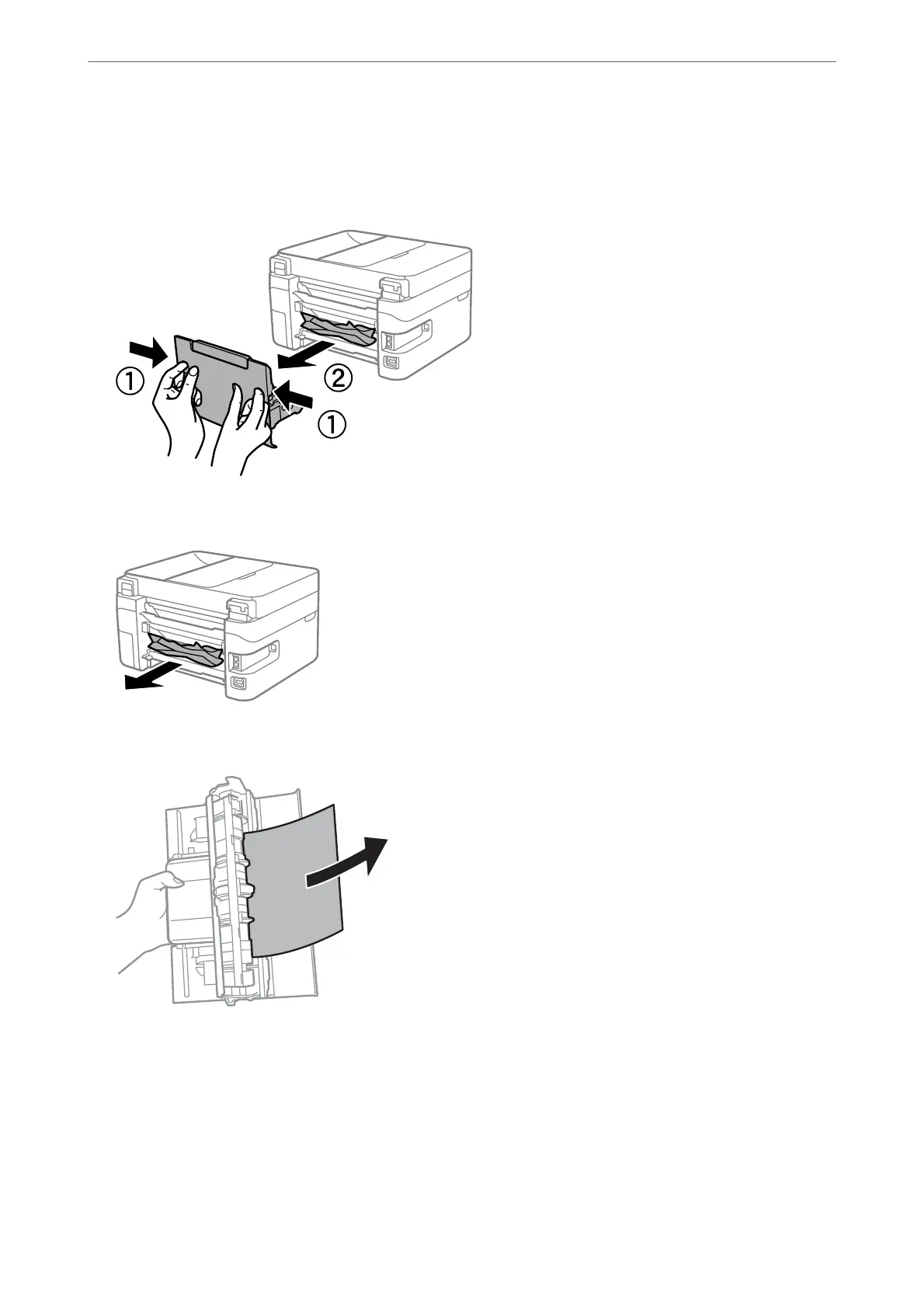

Remove the rear cover.

Remove the jammed paper.

Remove jammed paper from the rear cover.

Insert the rear cover in the printer.

Solving Problems

Removing Jammed Paper

Removing Jammed Paper from Rear Cover
