CUTMASTER 40
0-5570 INTRODUCTION
19
2.08 Generator Recommendations
When using generators to power the CM40 Plasma Cutting System, the following ratings are a
minimum and are to be used along with the ratings previously listed.
CM 40 Generator Specications
Generator Output Rating CM 40 Output Current Arc Characteristic
3 kW / 120V 20A on 15A circuit Full
5 kW / 120V 27A on 20A circuit Full
6.8 kW 40A Full
NOTE: If Generator is equipped with an idle mode it will need to be in "Run" mode to operate at 40 amps.
NOTE!
Due to circuitry, age and condition two generators with the same ratings may produce dierent results. Adjust the
amperage accordingly.
CM 40 Cut Capacity
Recommended Pierce Maximum
1/2" (12.7mm) 1/2" (12.7mm) 1" (25.4mm)

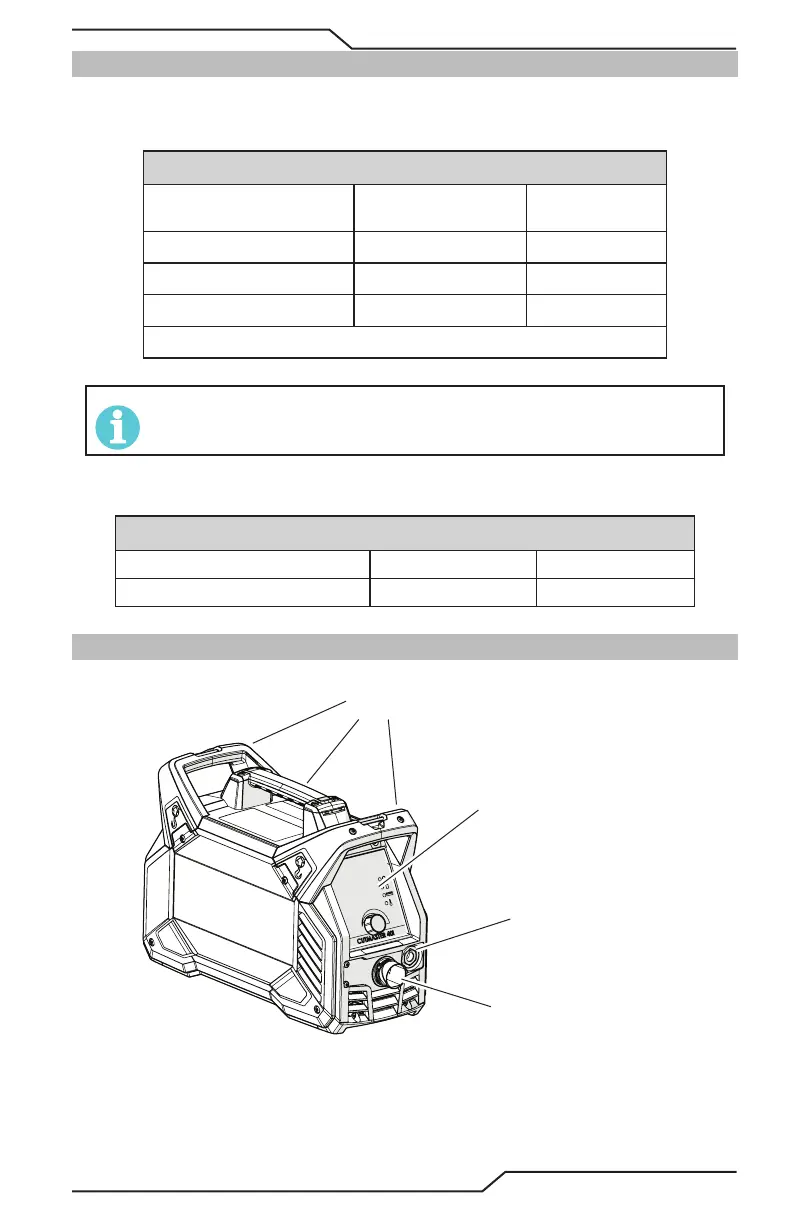

2.09 Power Supply Features
Handle and Leads Wrap
Torch Leads Receptacle
Control Panel
Work Lead Receptacle
Art # A-14041
