CUTMASTER 40
0-5570 INSTALLATION
27

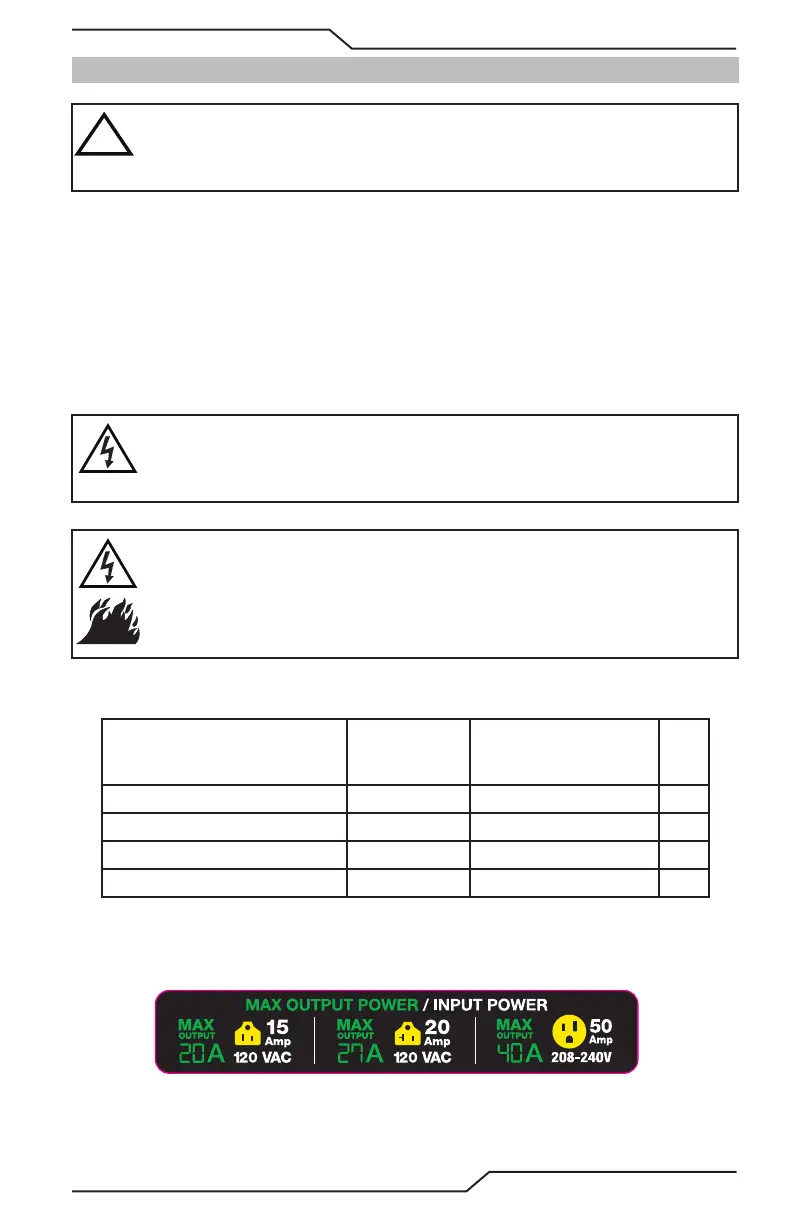

3.04 Primary Input Power Connections
CAUTION
Check your power source for correct voltage before connecting the unit to input power. The primary power source, fuse,
and any extension cords used must conform to local electrical code and the recommended circuit protection and wiring
requirements as specied in Section 2.
Power Cords Included With the Power Supply
Power cords come attached on all systems. For North America it will come with a 50 amp plug for use
on a 240V/50A circuit. For Europe it will come with a 2.5mm cable and a Schuko plug for use on a
230V circuit. .
Also included for CSA systems ONLY, are two adapters. One is a cable with a 120V/20A NEMA 5-20P
plug which attaches to the power supply input cord via a NEMA 6-50R plug. The other is a 5-20R to
5-15P adapter plug that attaches to the other adapter.
CAUTION
When using the 120V/20A adapter cord (CSA systems ONLY), do not exceed
a current output setting of 27 Amps on the power supply or the input power
circuit breaker may trip.
WARNING
When using the 15A adapter in conjunction with the 20A adapter (CSA
systems ONLY), extreme caution should be used to not exceed a current
output setting of 20 Amps on the power supply. Failure to do so may result
in the input power circuit breaker tripping or branch circuit overheating.
Input Voltage Rated Output Amps (RMS) input at
rated output, 60 Hz,
single-phase
kVA
120V, 15A Circuit (CSA) 20A, 93V 19.3 2.3
120V, 20A Circuit (CSA) 27A, 92V 25.3 3.1
208-240V, 50A Circuit (CSA) 40A, 135V 25-29 6.0
230V, (CE) 40A, 135V 26 6.0
CSA ONLY
Art# A-14359
