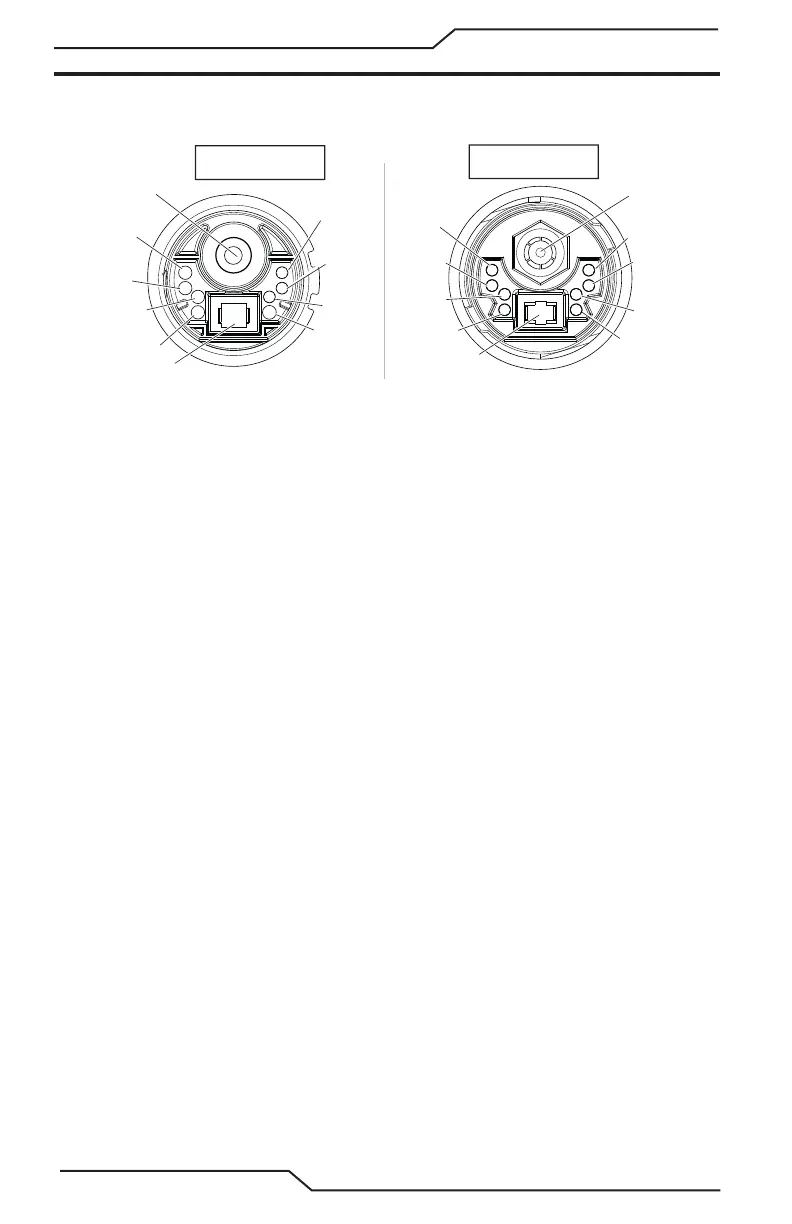

APPENDIX 2: TORCH PIN - OUT DIAGRAMS
A. Hand Torch Pin - Out Diagram
1
2
3
4
5
6
7
8
5
6
7
8
1
2
3
4
ATC Female Receptacle
Front View
Pilot
Pilot
6 - Open
7 - Open
8 - Open
5 - Open
Negative /
Plasma
6 - Open
7 - Open
5 - Open
2 - PIP
3 - Switch
4 - Switch
1 - PIP
4 - Green /
Switch
2- Orange
/
PIP
3 - White /
Switch
1 - Black /
PIP
Negative /
Plasma
8 - Open
ATC Male Connector
Front View
