3.03 Gas Connections
Connecting Gas Supply to Unit
The connection is the same for compressed air or high pressure cylinders.
1. Connect the air line to the quick connect inlet port. The following illustration shows typical
gas line with quick connect ttings as an example.

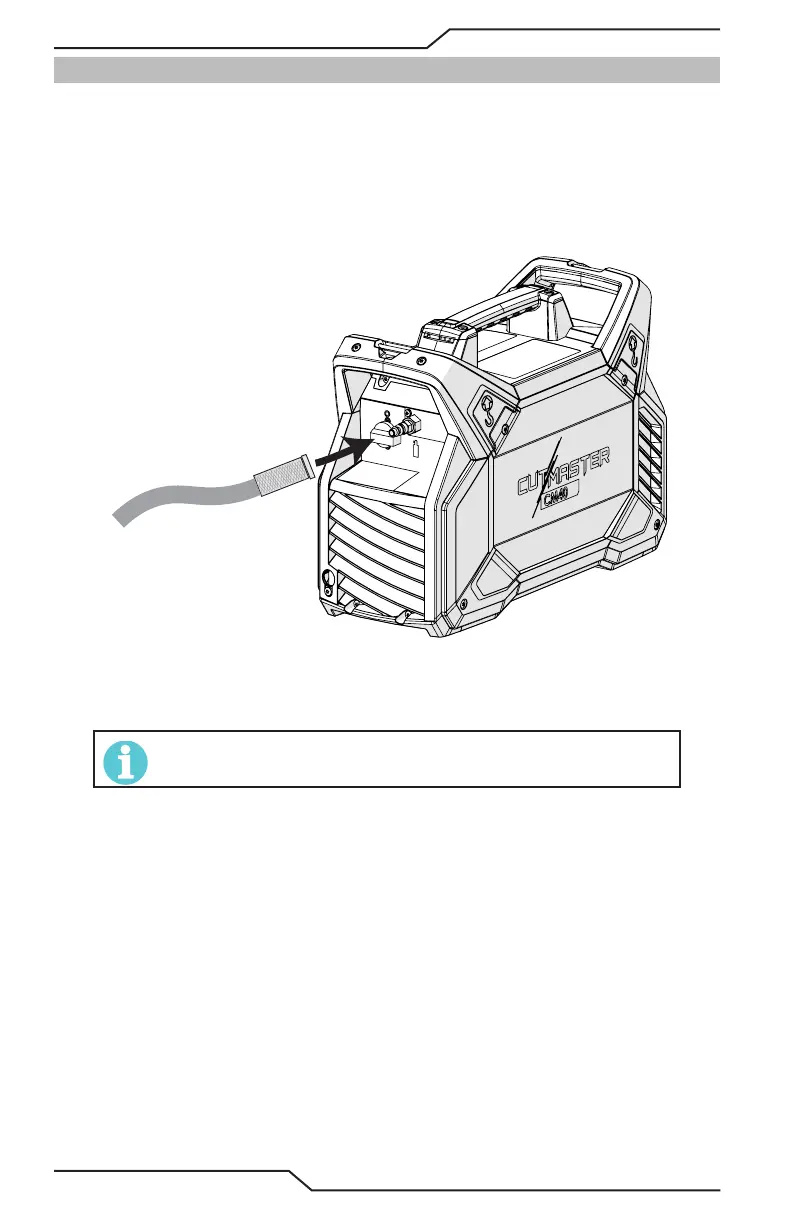

Art # A-14048_AB
Air Connection to Inlet Port
NOTE!
1/4" NPT to 1/4" female BSP adapter provided for European units if preferred.
