CUTMASTER 40
0-5570 INSTALLATION
25
SECTION 3 TORCH:
INSTALLATION
3T.01 Torch Connections
If necessary, connect the torch to the Power Supply. Connect only the ESAB model SL60 or SL60QD™
Torch to this power supply. Maximum torch leads length is 100 feet / 30.5 m, including extensions.
WARNING
Disconnect primary power at the source before con-
necting the torch.
1. Align the ATC male connector (on the torch lead) with the female receptacle. Push the male
connector into the female receptacle. The connectors should push together with a small
amount of pressure.
2. Secure the connection by turning the locking nut clockwise until it clicks. DO NOT use the
locking nut to pull the connection together. Do not use tools to secure the connection.
2
Art # A-14044
1

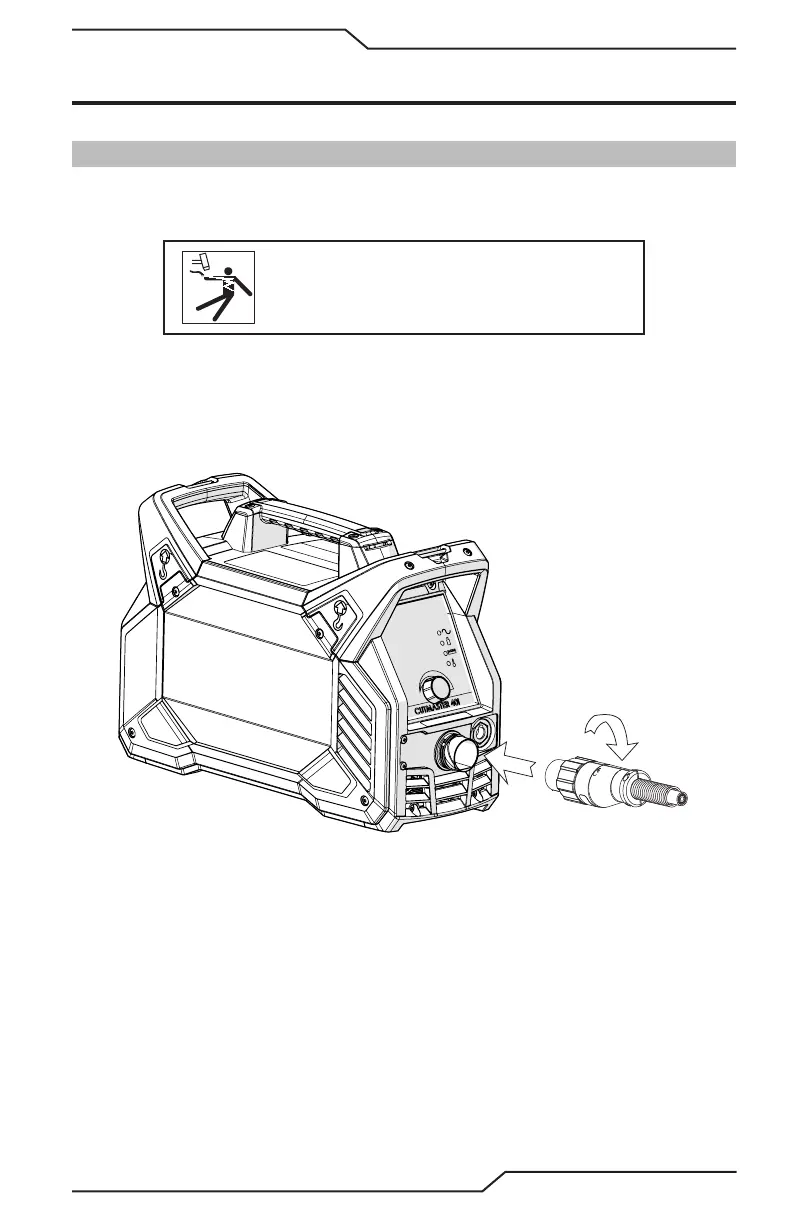

Connecting the Torch to the Power Supply
