ESAB fabricator 141i User Manual

ESAB FABRICATOR 141i
Manual 0-5420 3-13 INSTALLATION, OPERATION AND SETUP
Art # A-10357
Friction Washer
4”（100mm）
Diameter spool
Nut with
Nylon Insert
Spring
Plastic Spacer
Brass Flat
Washer
Flat Washer

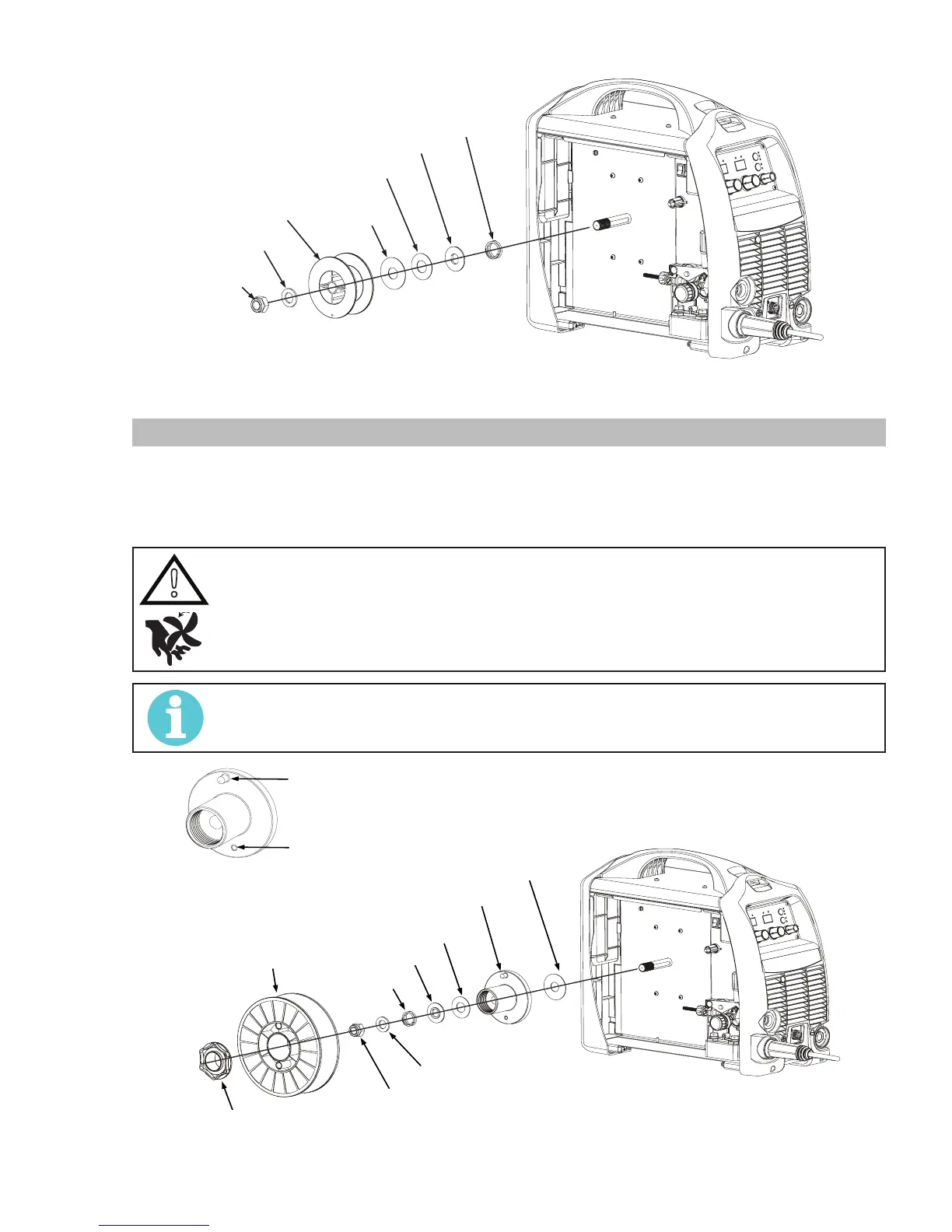

Figure 3-11: 4" (100mm)Diameter Spool Installation
3.14 Installing 8" (200mm) Diameter Spool
As delivered from the factory, the Power Source is set for a 8" (200mm) diameter spool.
In order to re-fit a 8" (200mm) spool assemble parts in the sequence shown below in Figure 3-12.
Adjustment of the nut with nylon insert will control the MIG Wire Spool Brake. Clockwise rotation of this nut with nylon insert tight-
ens the brake. The Brake is correctly adjusted when the spool stops within 3/8" (10mm) to 3/4" (20mm) (measured at the outer
edge of the spool) after MIG Gun trigger is released. Wire should be slack without becoming dislodged from the spool.
!
CAUTION
Overtension of brake will cause rapid wear of mechanical WIRE FEED parts, overheating of electrical
components and possibly an increased incidence of electrode wire Burnback into contact tip.
Ensure that the alignment pin on the wire spool hub aligns with the hole allocated in 8" (200mm) diam-
eter spool..
NOTE!
This alignment pin can be removed by unscrewing in an counterclockwise direction and locating in the
appropriate position..
Art # A-10358
Spring
Nut with
Nylon Insert
8” (200mm)
diameter spool
Spool Hub Nut
Alignment pin
Brass Flat
Washer
Wire Spool Hub
Friction
Washer
Plastic Spacer
Flat Washer
Alternate
Alignment Pin
Position
Figure 3-12: 8" (200mm) Diameter Spool Installation
