ESAB FABRICATOR 141i
INSTALLATION, OPERATION AND SETUP 3-16 Manual 0-5420

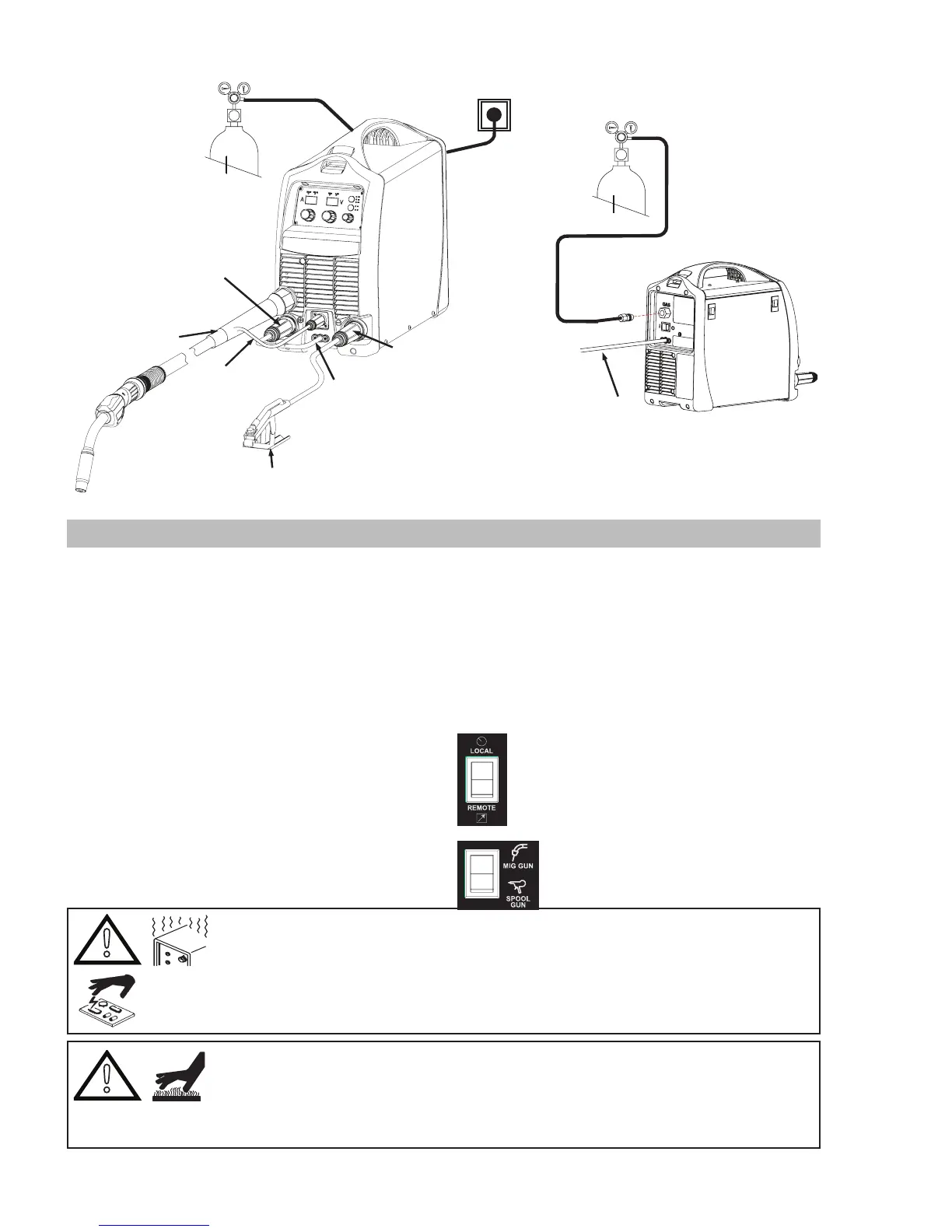

Figure 3-16: Setup for MIG Welding with Gas Shielded MIG Wire
3.20 Setup for MIG (FCAW) Welding with Flux Core (Gasless) Wire
A. Select MIG mode with the process selection control (refer to Section 3.10.12 for further information).
B. Connect the MIG Gun Polarity Lead to the negative welding terminal (-). If in doubt, consult the electrode wire manufacturer.
Welding current flows from the Power Source via Dinse style connectors. It is essential, however, that the male plug is
inserted and turned securely to achieve a sound electrical connection.
C. Connect the work lead to the positive welding terminal (+). If in doubt, consult the electrode wire manufacturer. Welding
current flows from the Power Source via Dinse style connectors. It is essential, however, that the male plug is inserted
and turned securely to achieve a sound electrical connection.
D. Refer to the Weld Guide located on the inside of the wirefeed compartment door for further information.
E. Switch the LOCAL/REMOTE switch inside the
wire feed compartment to LOCAL to use the
Power Sources Wirespeed and Voltage controls.
F. Switch the MIG GUN/SPOOL GUN switch inside
the wire feed compartment to MIG GUN.
!
WARNING
Before connecting the work clamp to the work piece, make sure you have ceased feeding
wire so premature arcing will not occur.
!
CAUTION
Loose welding terminal connections can cause overheating and result in the male plug being
fused in the terminal.
Remove any packaging material prior to use. Do not block the air vents at the front or rear of
the Welding Power Source.
Art #
A-10362
Shielding Gas Hose Fitted
with 5/8"-18 UNF
connection
Primary Cord
Work Lead
Negative Welding
Terminal (-)
Positive Welding
Terminal (+)
MIG Gun
Polarity Lead
8 pin Plug
Secure the gas cylinder
in an upright position
by chaining it to a
stationary support to
prevent falling or tipping.
To Next Page
