ESAB FABRICATOR 141i
BASIC WELDING GUIDE 4-10 Manual 0-5420
Art A-07691

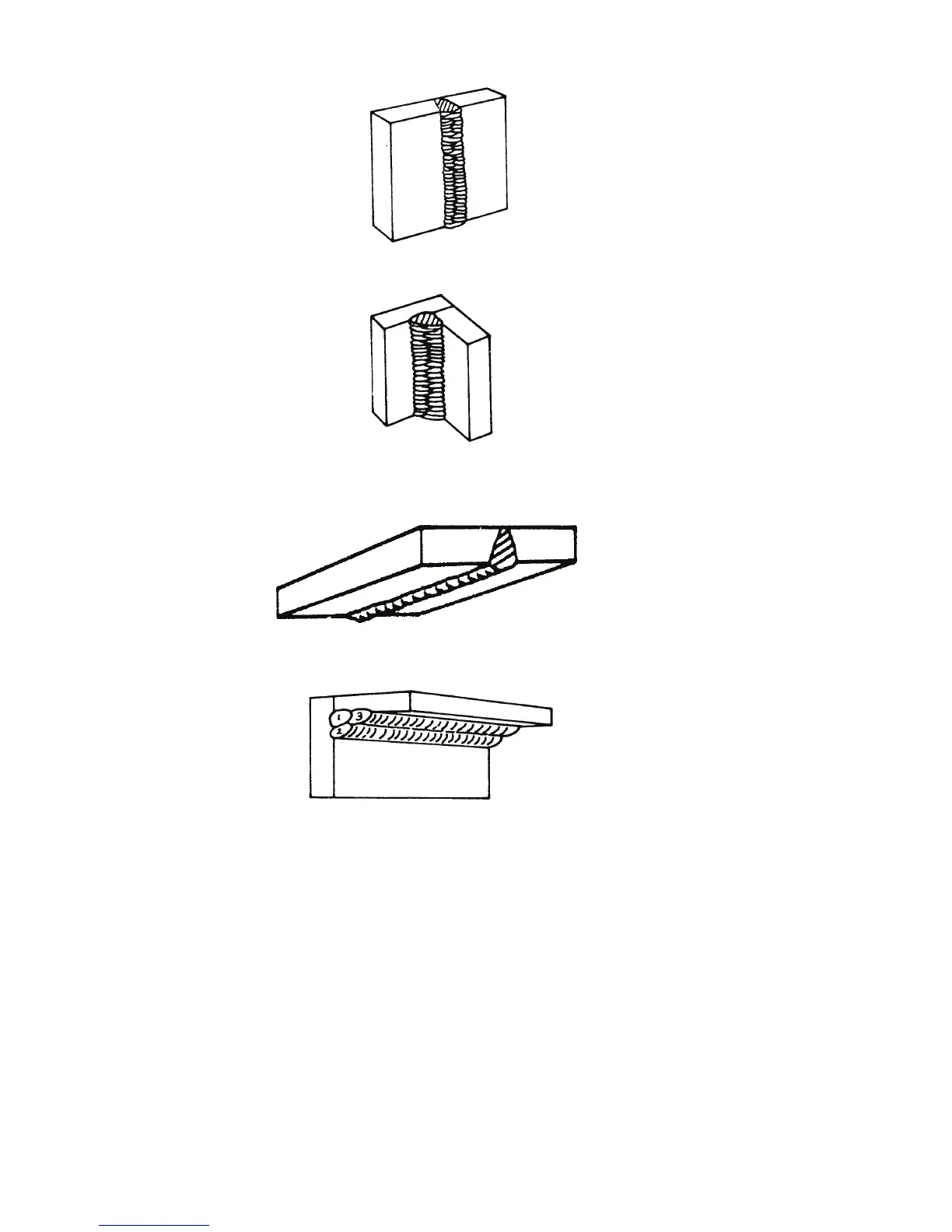

Figure 4-15: Vertical Position, Butt Weld
Art # A-07692
Figure 4-16: Vertical Position, Fillet Weld
Art# A-07693
Figure 4-17: Overhead Position, Butt Weld
Art # A-07694
Figure 4-18: Overhead Position, Fillet Weld
Joint Preparations
In many cases, it will be possible to weld steel sections without any special preparation. For heavier sections and for repair work
on castings, etc., it will be necessary to cut or grind an angle between the pieces being joined to ensure proper penetration of the
weld metal and to produce sound joints.
In general, surfaces being welded should be clean and free of rust, scale, dirt, grease, etc. Slag should be removed from oxy-cut
surfaces. Typical joint designs are shown in Figure 4-19.
