156

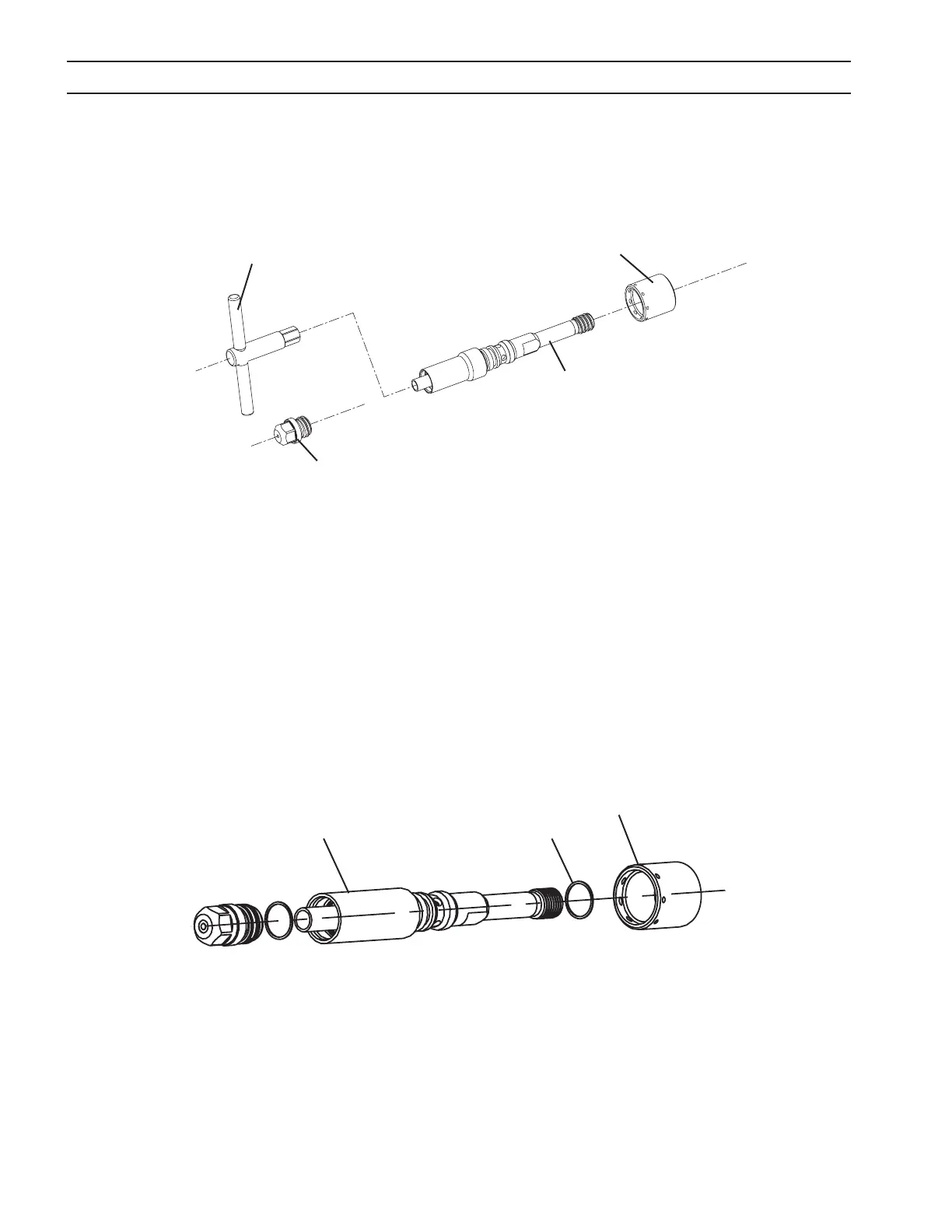

7. Remove electrode holder from torch body. Hex on the end of the electrode holder removal tool will engage
in a hex in the holder.
NOTE:
The electrode holder is manufactured in two pieces. Do not disassemble. If the holder is damaged, re-
place the electrode holder assembly.
8. Disassemble electrode holder and gas bae. Carefully remove O-ring from electrode holder and slide bae
from holder. Inspect nozzle seating surface (front edge) for chips. Look for cracks or plugged holes. Do not
attempt to clear holes. Replace bae if damaged.
NOTE:
Check all O-rings for nicks or other damage that might prevent O-ring from forming a gas/water tight
seal.
Electrode
Removal
Tool
Gas Bae
Electrode Holder Assembly
SECTION 5 MAINTENANCE
Electrode Holder Assembly
Gas Bae
O-ring
