eschmann MR - Fig.9 Releasing Trend. Screw Assembly; Fig.10 Trendelenburg Screw Assembly

T-SM5f Page 13 of 29
MR & MRS OPERATION TABLES
Part 4
4. MAINTENANCE
View on Trendelenburg screw bevel
gear - half cover removed.

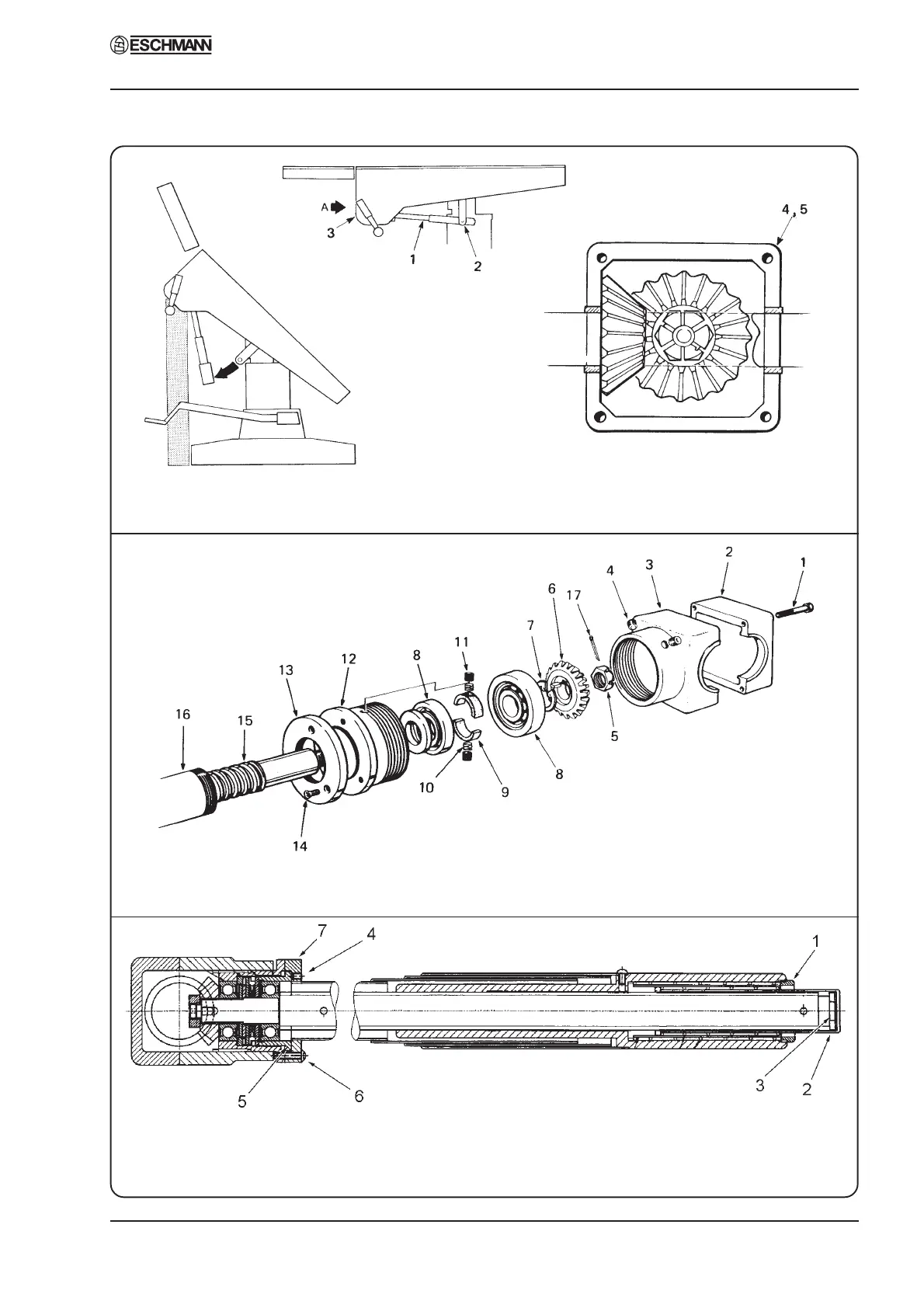

Fig. 9 Releasing Trendelenburg screw assembly
Fig. 10b Later* Trendelenburg screw assembly
(* To determine which Trendelenburg screw is
fitted to a table, see note preceding section 4.16)
Fig. 10a Early* Trendelenburg screw assembly
(* To determine which Trendelenburg screw is
fitted to a table, see note preceding section 4.16)
