T-SM5f Page 27 of 29
MR & MRS OPERATION TABLES
Replacing release handle for head section
with gas spring (see Note in 4.23 for Serial
Number detail)
4.56 To replace head section release handle refer
to Fig. 19 and proceed as follows:
i Remove both side bars (6) by removing
screws (8) together with spacers (7).
ii Release both grub screws (18) and tap out
both pivot pins (11).
iii Release both grub screws (32) and tap out both
pivot pins (12). Note: on early versions pivot
pin (12) was held in place by two circlips (13).
iv Release handle (16) and replace.
v Reassemble by the reverse of above ensuring
correct orientation of handle and that the
spacers (7) are correctly repositioned, also
check correct function and adjustment of
gas springs (see section 4.24(iii) and section
4.57(iii)).
Replacing release bar for leg section with gas
spring (see Note in 4.23 for Serial Number
detail)
1
2
3
4

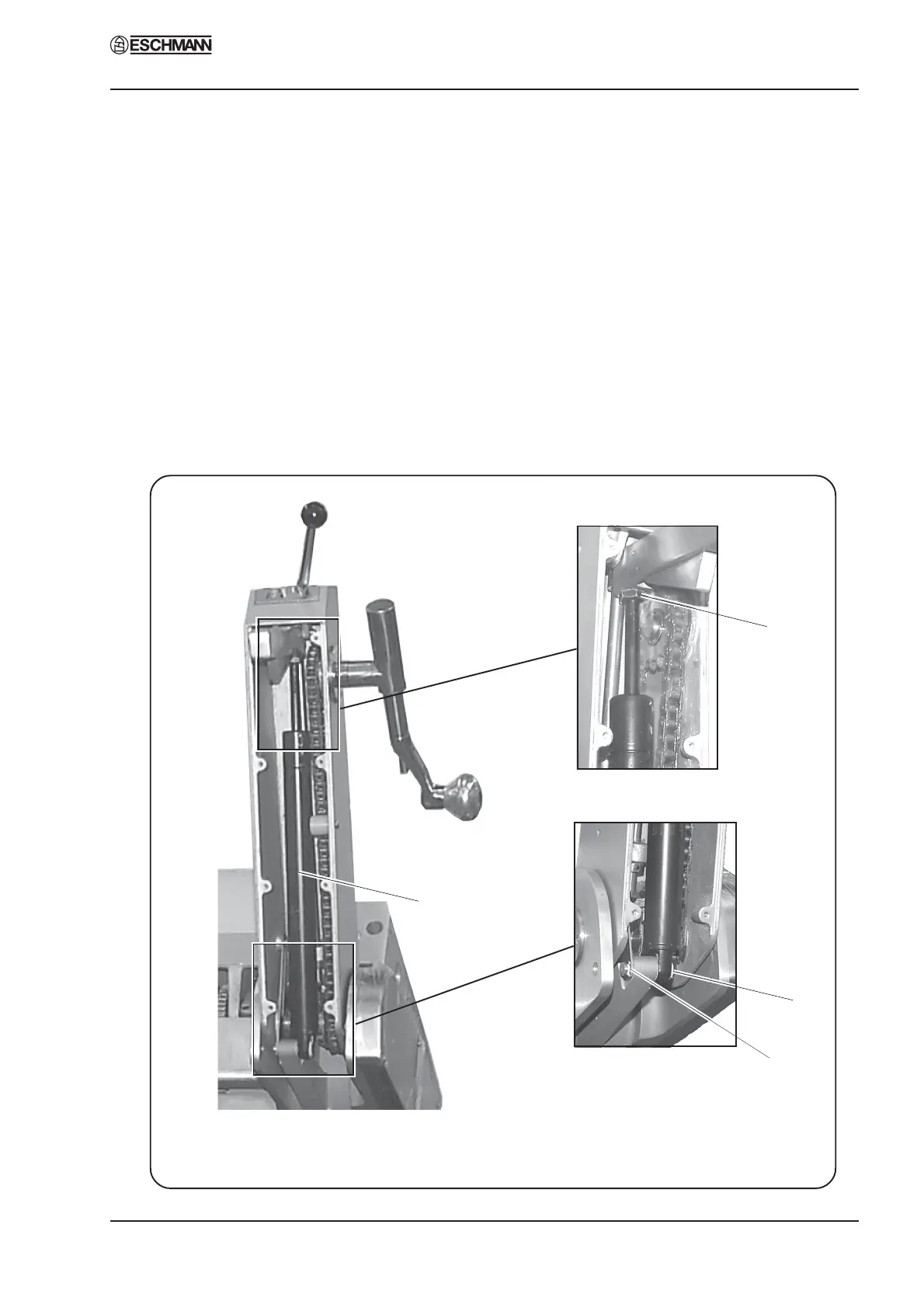

Fig. 20 Control arm with gas spring (bottom cover removed)
