T-SM5f Page 5 of 29
MR & MRS OPERATION TABLES
2. TECHNICAL DATA
Part 2

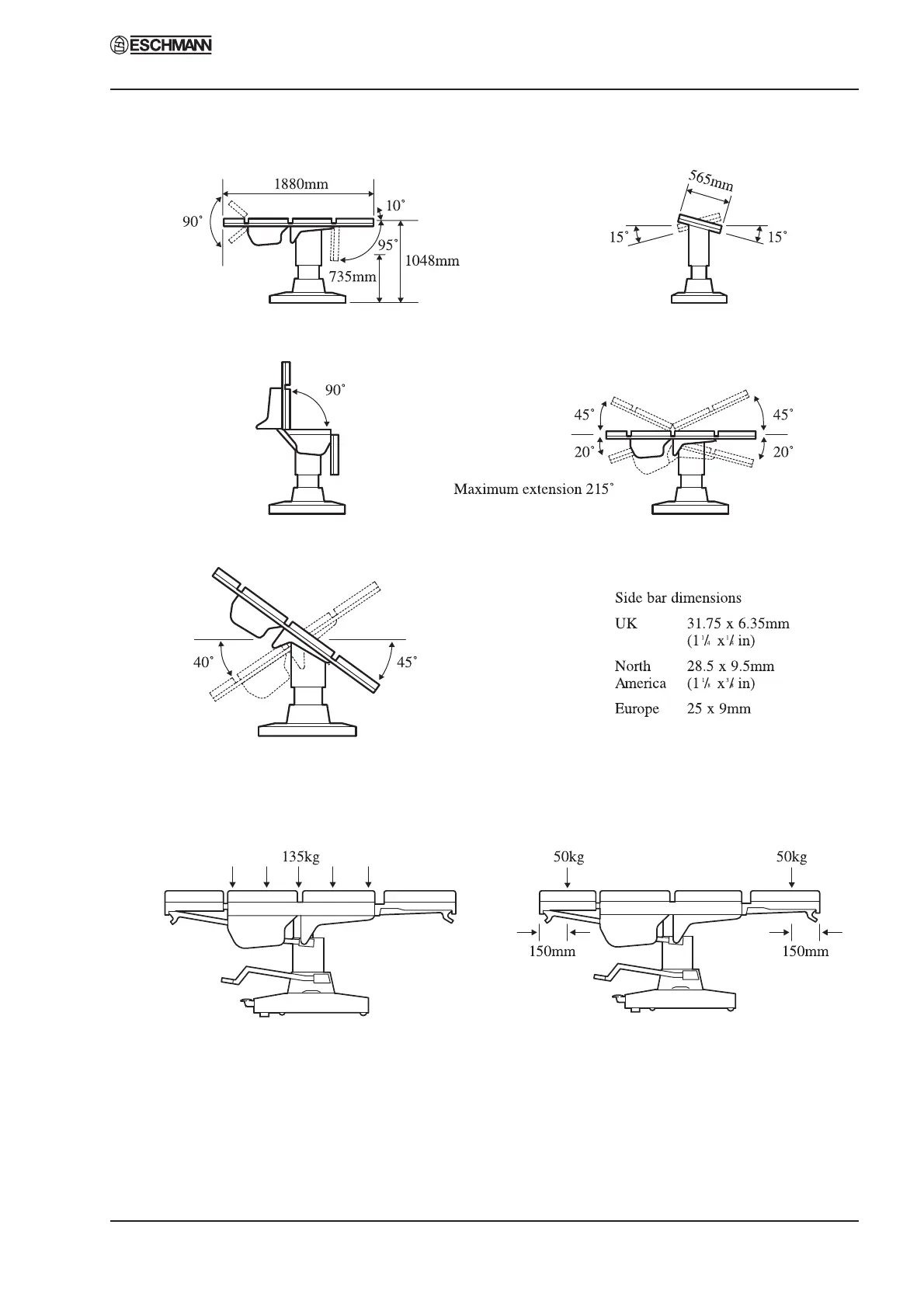

DIMENSIONS AND MOVEMENTS
TABLE LOADING
Retention of Adjusted Height: The table will
retain its adjusted height with a load of 135kg
uniformly applied to the trunk sections.
Longitudinal Deflection Load: The table will
withstand a load of 50kg applied at a point 150mm
in from either end of the head or leg section.
NET WEIGHT (approx) 196kg X-RAY ATTENUATION
The X-ray attenuation of the top of this operation
table is equivalent to less than 0.5mm of 99.5%
pure aluminium.
