T-SM5f Page 29 of 29

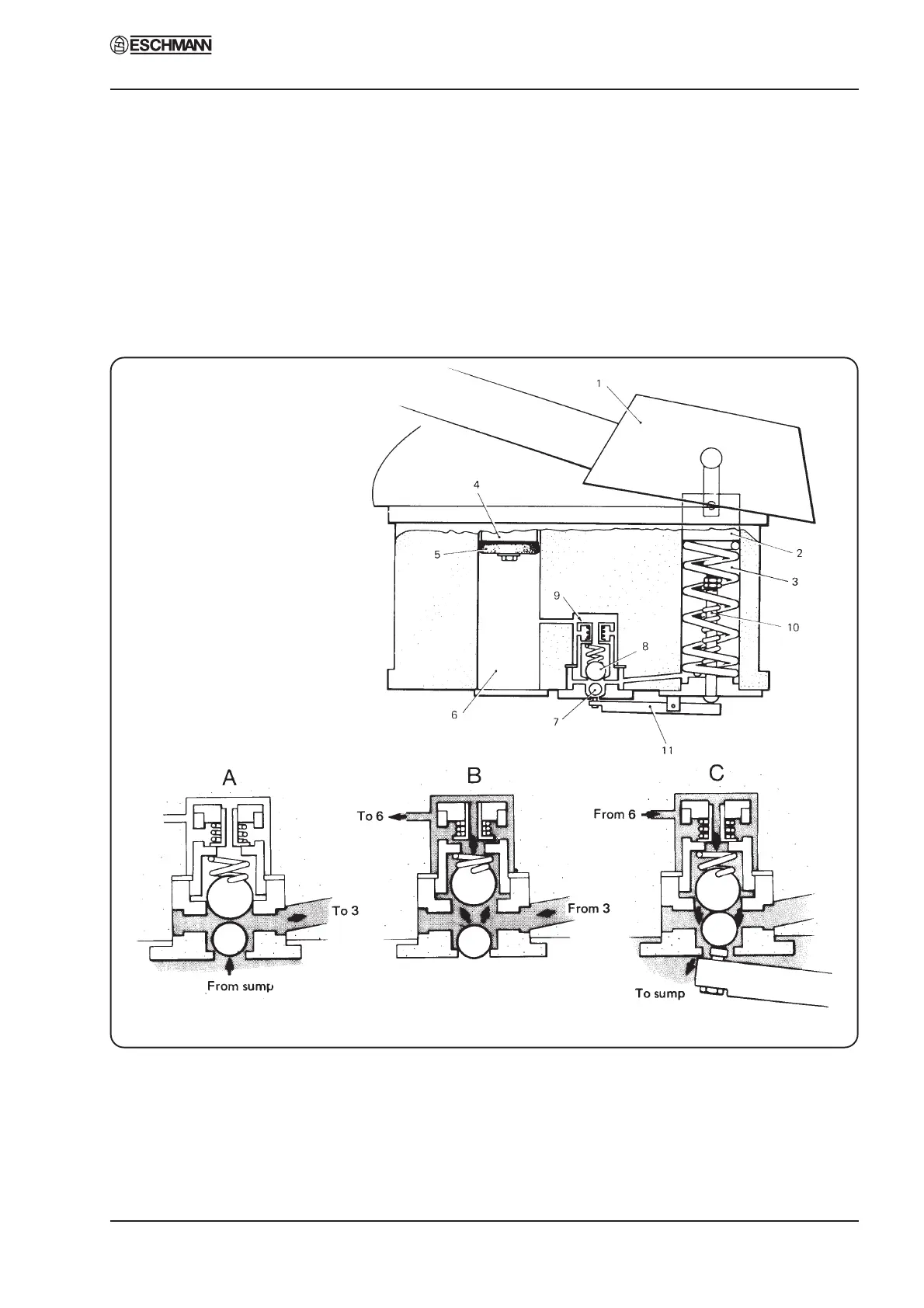

MR & MRS OPERATION TABLES
1. Pump pedal
2. Piston
3. Piston chamber
4. Ram
5. Ram cup washer
6. Ram chamber
7. Ball valve (small)
8. Ball valve (large)
9. Pilot valve
10. Release plunger
11. Ram Release lever
Fig. 21 Hydraulic system operation
