Estun E-Series User Manual

E300 Operation Manual
Programming
Document Version: V1.01
ESTUN AUTOMATION Proprietary
2-10
Parameter Description
Corr.α
Default
0
Range
-90.00 to 90.00
Unit
°
Description
This parameter is valid when the bending method is angle, which indicates the
correction on angle to the current bending step. For example:
If the programmed value is 90, while the actual measured value is 92, then
this parameter shall be set to -2.
If t
he programmed value is 90, while the actual measured value is 88, then
this parameter shall be set to 2.
Corr.X
Default
0
Range
-99.99 ～ 99.99
Unit
mm
Description
When the actual axis position is not corresponding with the displayed value,
it
is possible to correct the position with this parameter. For example:
If the programmed value is 100.00, while the actual measured value is 102.05,
then this parameter shall be set to -2.05.
If the programmed value is 100.00, while the actual measured value
is 98.05,
then this parameter shall be set to 1.95.
Repeat
Default
1
Range
1 to 99
Unit
－
Description
Set the repetition times for the selected bending step.
Example

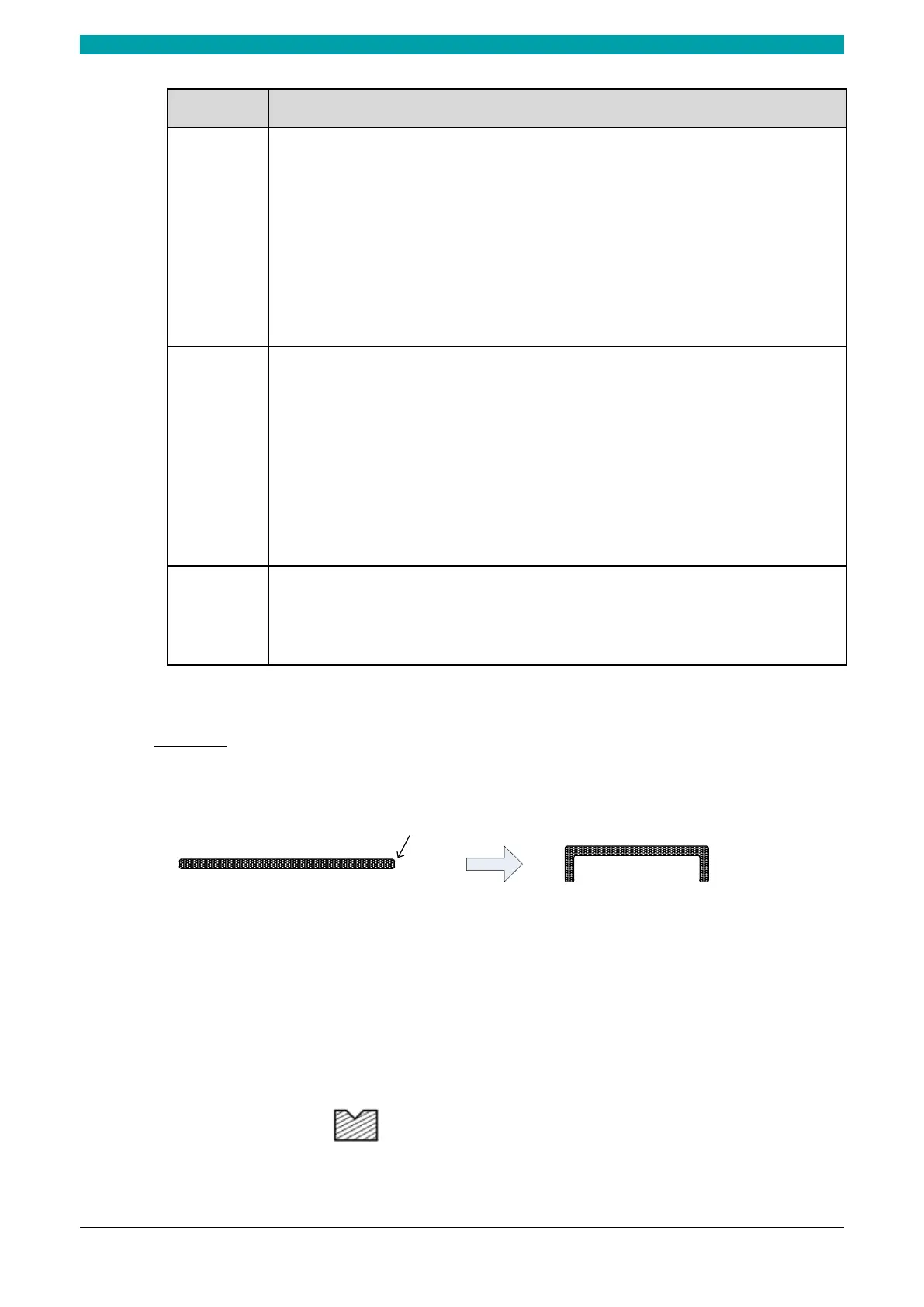

We take the following process as an example to describe the programming.
Steel plate,
length is 180mm
120mm
30mm
90°
Thickness is 7.5mm
× 5 × 5
30mm
90°
In this example, there are 2 bending steps, and we can learn a set of the basic data: material is steel;
one X-axis is 30 and other is 120; bending-angle is 90; thickness is 7.5; stock is 50.
We decide to program the process by the given angle, and supposing the die ID is 1.
In addition, we can set some other necessary parameters according to our experience, such as
holding time is 3, retracting delay is 2, and retract distance is 5.
Follow the below procedure to perform the program.
2. Move the cursor on (Die), and type 1.
Note: For details about the setting of the die, see the section 2.6 Die Settings.
