Install the Fixture 12

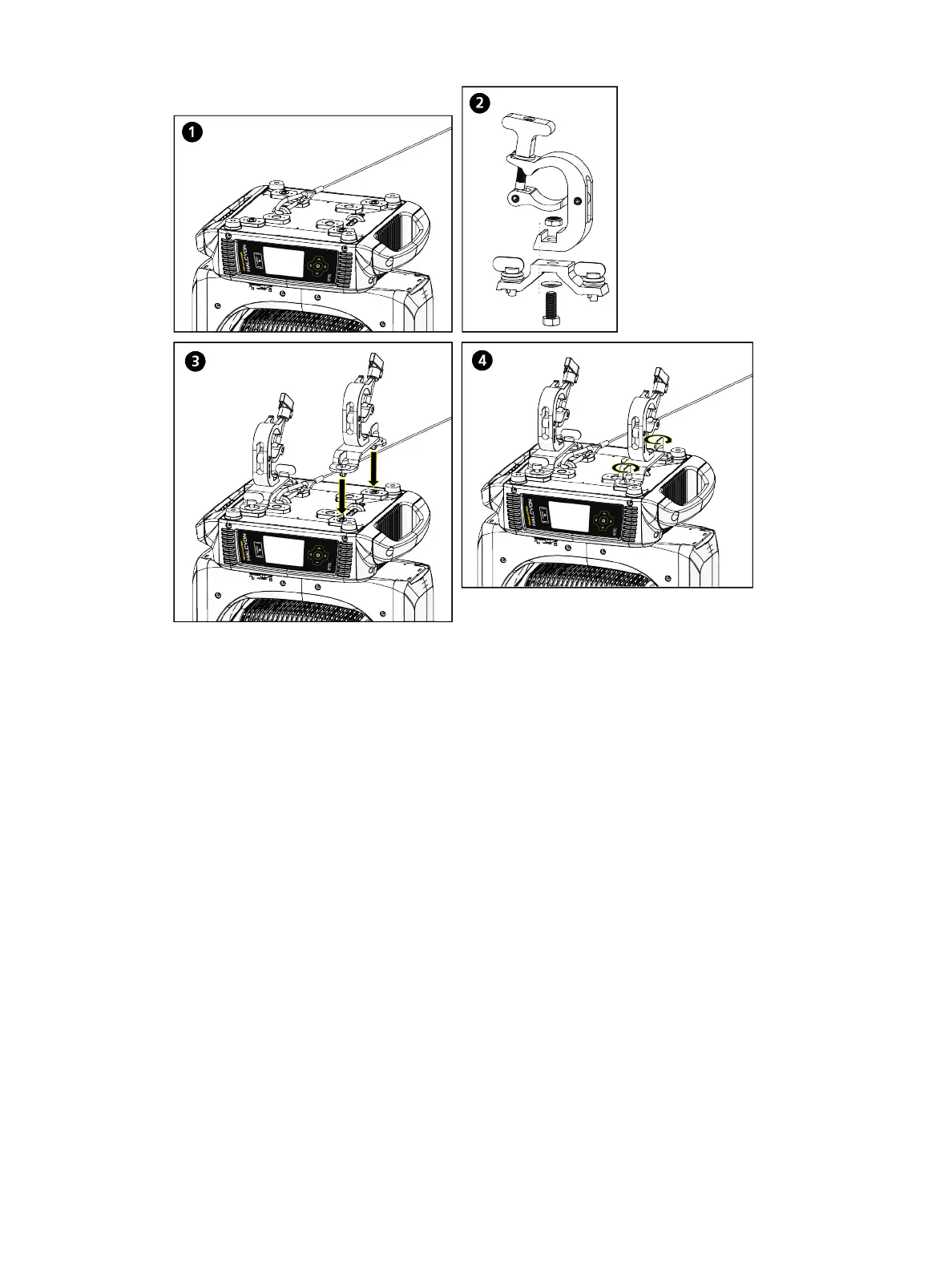

1. Attach the provided safety cable through one of the two attachment points on the
bottom of the fixture upper enclosure.
2. Assemble the clamp (provided by others) to the Omega bracket that was provided with
the fixture and secure together using appropriately sized hardware (not provided).
3. Align the assembled Omega bracket and quick-lock fasteners into the respective holes on
the bottom of the fixture upper enclosure.
4. Tighten each of the quick-lock fasteners fully, turning clockwise. You will hear and feel a
click when the fastener is fully secured.
5. Repeat steps 2 through 4 for the second clamp and bracket.
6. Secure the safety cable to the trussing system or some other safe installation point.
Follow local codes and recommended safety standards for securing the fixture to the
installation location.
7. Attach the fixture to the installation location using the clamp manufacturer's instructions
for a secure fit. When using an Omega clamp, close the safety and fully tighten the clamp
wing nut until secure.
8. Inspect the installation prior to lifting the fixture overhead.
