MOUNTING THE ABRASIVE DISC ONTO THE DISC PAD HOLDER
The machine can operate with brushes or abrasive discs of various types mounted on special disc pad holders.
Follow the instructions below to mount the abrasive disc onto the disc pad holder:

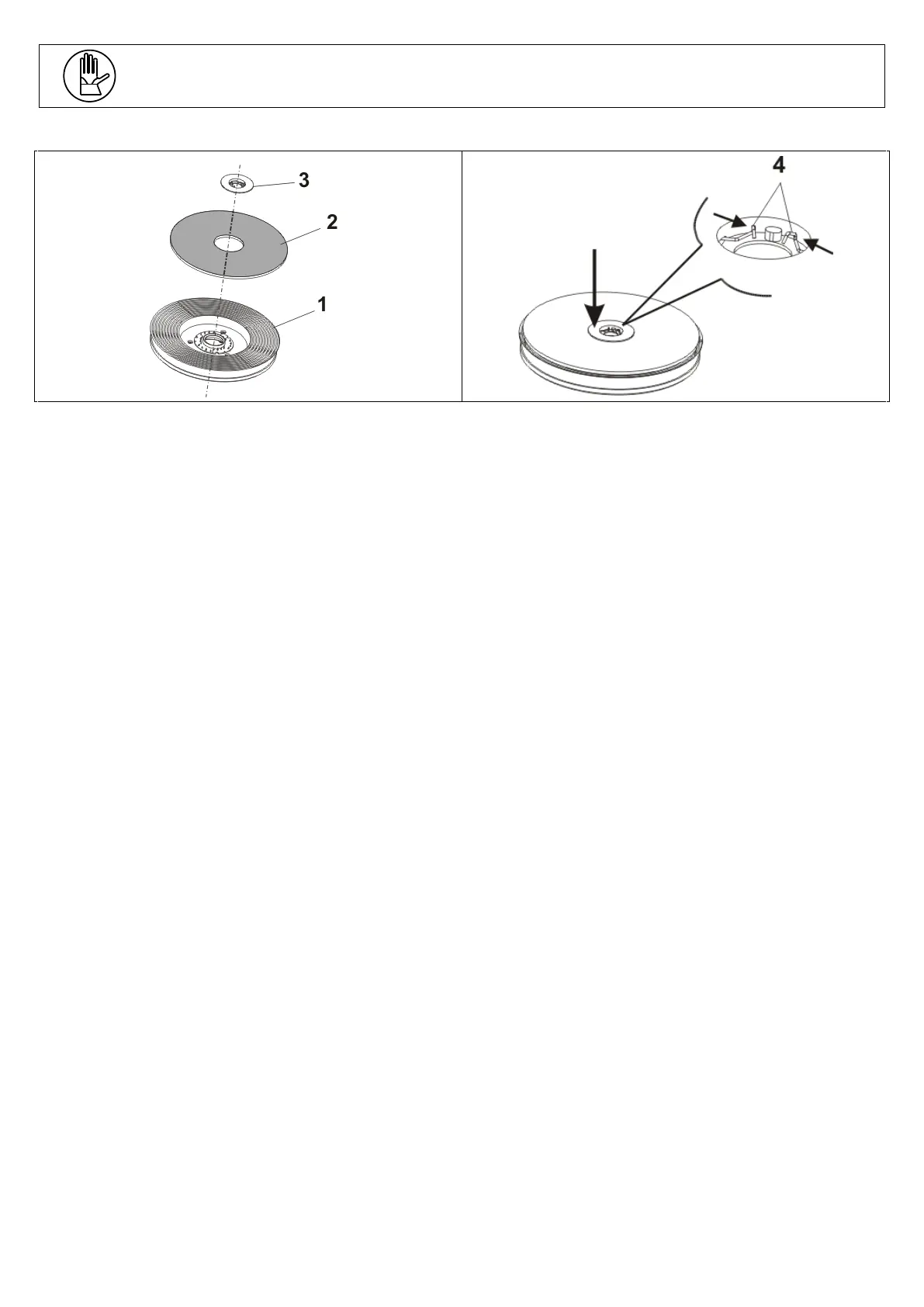

 Remove the disc lock (position 3) from the disc pad holder (position 1) by pressing the 2 ends of the spring
catch (position 4) against each other;
 Position the abrasive disc (position 2) and center it onto the disc pad holder (position 1);
 Place the disc lock (position 3) on the center and press down hard until the spring fits into place (position 4);
this operation can be carried out using the palm of your hand, or your foot if the disc pad holder is resting on
the ground.
