33

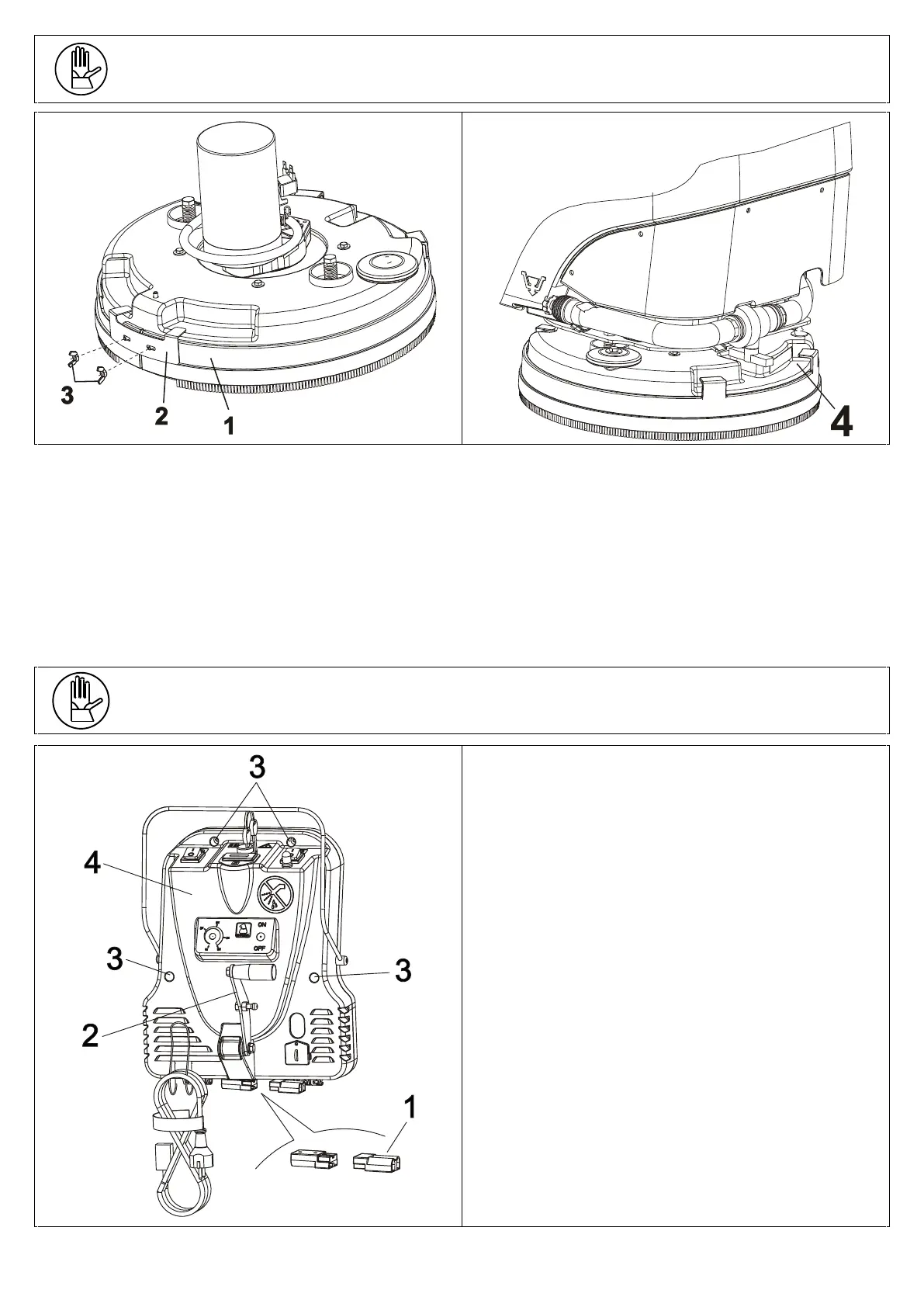

FITTING, ADJUSTING AND CHECKING THE SPLASHGUARD
To fit or remove the splashguard, proceed as follows:
 Fit the splashguard around the brush plate and insert it in the front part of the plates as shown in pos. 4;
 Fit the fixing plate pos. 2;
 Fasten the butterfly nuts pos. 3 without fully tightening them;
 Adjust the width of the splashguard using the slots on the plate, enabling it to run freely on the outside of the
brush plate;
 Fully tighten the nuts pos. 3.
Periodically check the condition of the splashguard.
If it is worn or damaged, replace it.
CHECKING OR REPLACING FUSE
To check or replace the fuse proceed as follows:
 Stop the machine on a flat section of floor;
 Disconnect the battery jack pos. 1;
 Lower the squeegee lever pos. 2;
 Unscrew the 4 screws pos. 3;
 Open the control panel cover pos. 4.
