ADJUSTING THE QUANTITY OF SOLUTION
ON THE BRUSHES (WATER + DETERGENT)

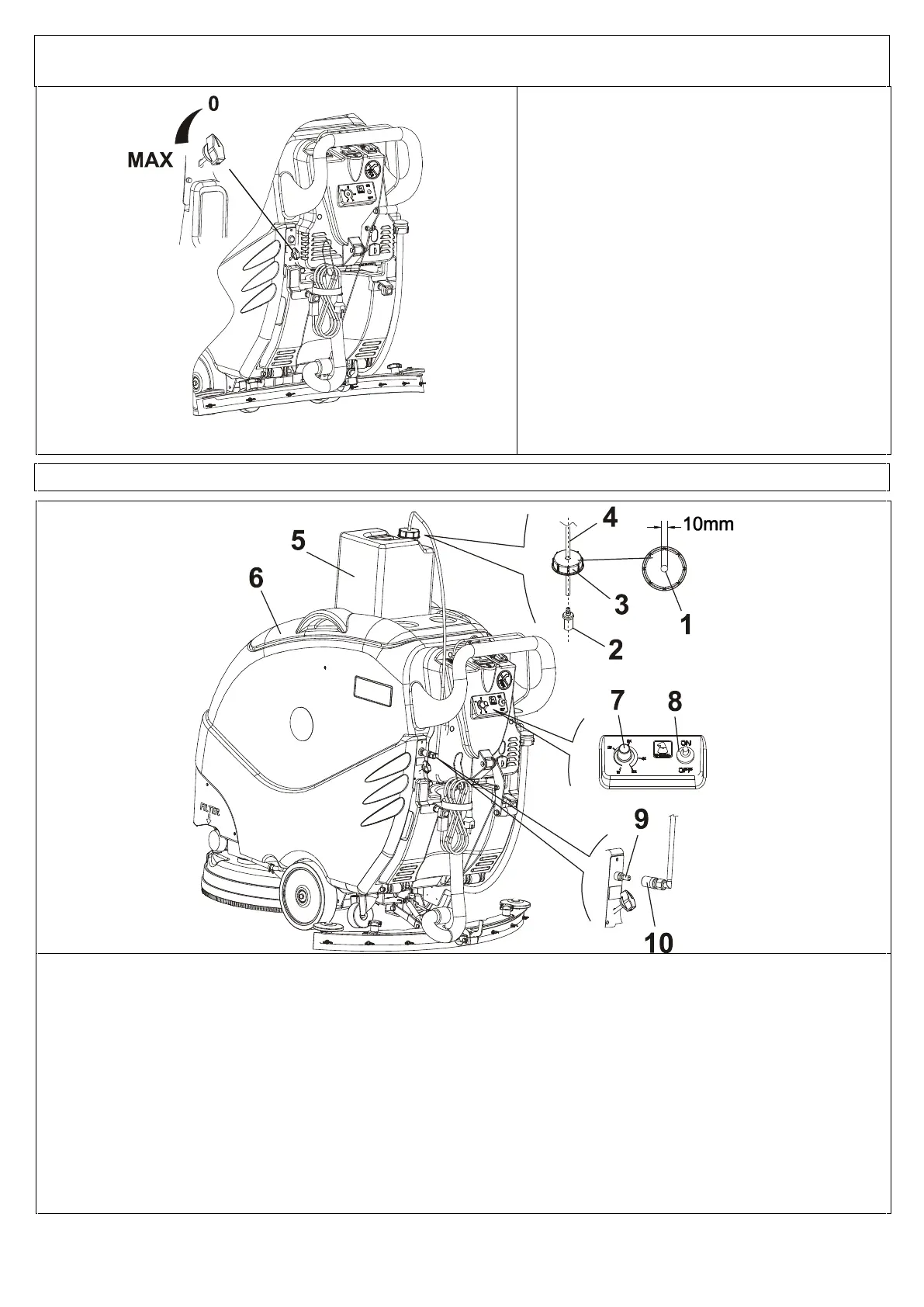

Adjust the quantity of solution on the brush by
means of the knob shown in the image.
When this knob is in position 0, the flow of
solution is completely closed.
As the knob is gradually turned towards the
MAX position, the amount of solution
gradually increases.
Regulate the intensity of the flow according to
work speed and to the amount of dirt on the
floor.
Remember to close the flow when the machine
is stopped to prevent too much solution coming
out.
As an optional, the solenoid valve kit is
available which permits interrupting solution
outflow when the machine is stopped
DETERGENT DOSING SYSTEM (OPTIONAL)
To use the detergent dosing system proceed as follows:
 Remove the cap from the detergent can pos. 3 and drill it in the middle (pos. 1) by a 10 mm drill;
 Insert the pipe pos. 4 in the hole and connect the filter pos. 2 making pressure with hands;
 Put the can pos. 5 inside the compartment on the cover pos. 6;
 Screw the cap and pull the pipe with the filter toward the bottom of the can;
 Connect the other extremity of the pipe pos. 10 to the joint pos. 9 on the machine;
 Activate the system by the switch pos. 8 and adjust the detergent quantity by the knob pos. 7.
THIS SYSTEM FUNCTIONS WHEN THE BRUSH IS OPERATING. BY RELEASING THE BRUSH
DEVICE THE DETERGENT DOSING STOPPS.
AFTER EACH USE WASH THE SYSTEM BY PUTTING A WATER CAN INSTEAD OF THE
DETERGENT CAN AND LET THE SYSTEM FUNCTION FOR FEW MINUTES. THIS WILL KEEP THE
SYSTEM ALWAYS EFFICIENT
