Output installation
Although two types of pin configuration are allowed for the input side, the output
installation must be done specifically according to this manual, to prevent UPS
damage. Fig. 11 shows the diagrams of correct and incorrect output configurations.
CAUTION! Only TN-S configuration is allowed for the UPS output
installation.

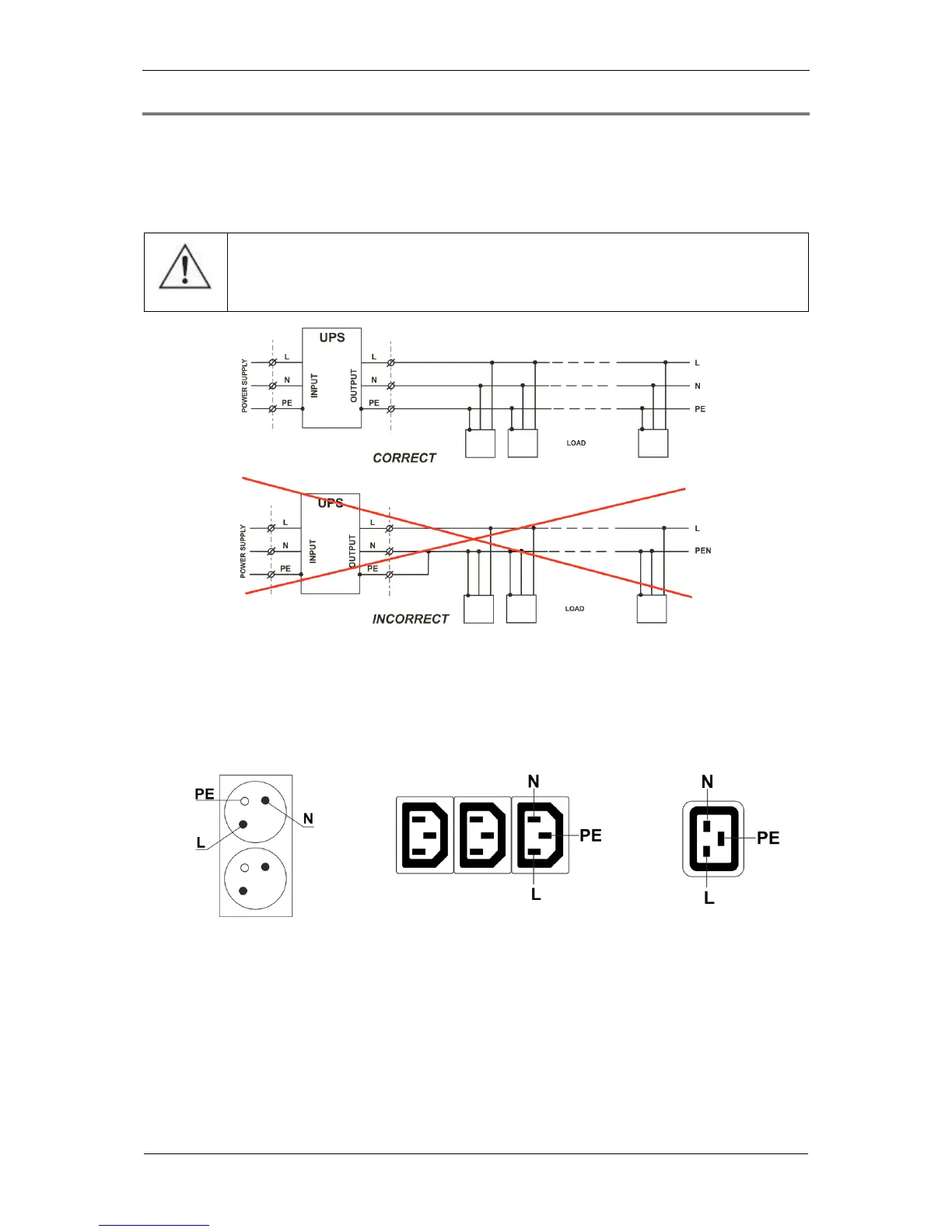

Fig. 11: SINLINE RT / SINLINE RT XL output installation
SINLINE RT / SINLINE RT XL output socket pin configuration is shown in Fig. 12.
Sockets PN-E-93201 (10 A)
Sockets IEC 320 C13 (10 A)
Socket IEC 320 C19 (16 A)
Fig. 12: Output socket pin configuration in SINLINE RT / SINLINE RT XL UPS units
