2. Assemble a set of installation rails, depending on the depth of the cabinet (Fig.
27).

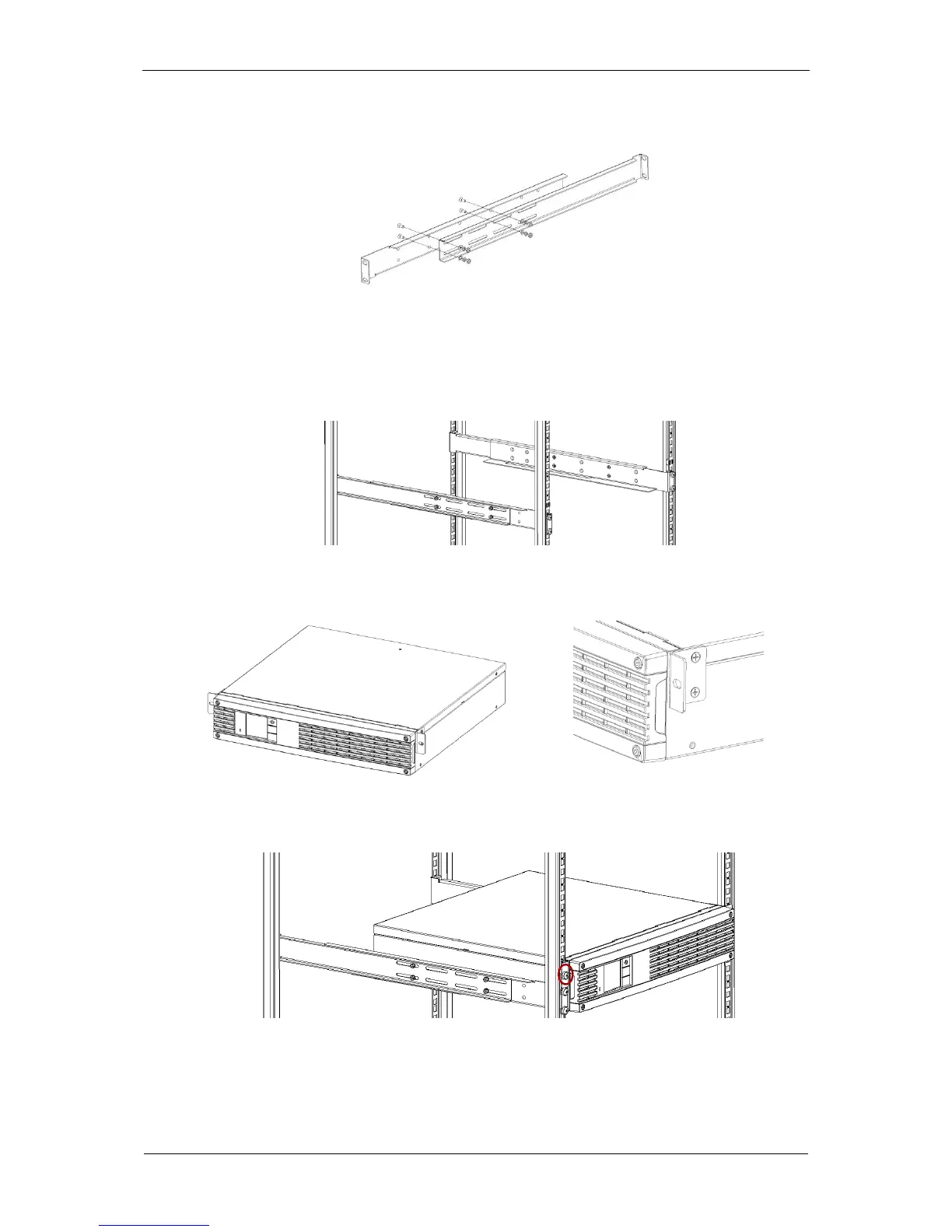

Fig. 27: Assembling the rails (Rack Kit)
3. Attach the installation rails to the interior of the cabinet with bolts (Fig. 28).
Fig. 28: Installation of the rails inside the cabinet
4. Attach side brackets to the UPS (Fig. 29).
Fig. 29: Installation of side brackets
5. Slide the UPS into the installation rails and fix with bolts (Fig. 30).
Fig. 30: Installation of the UPS inside the cabinet
